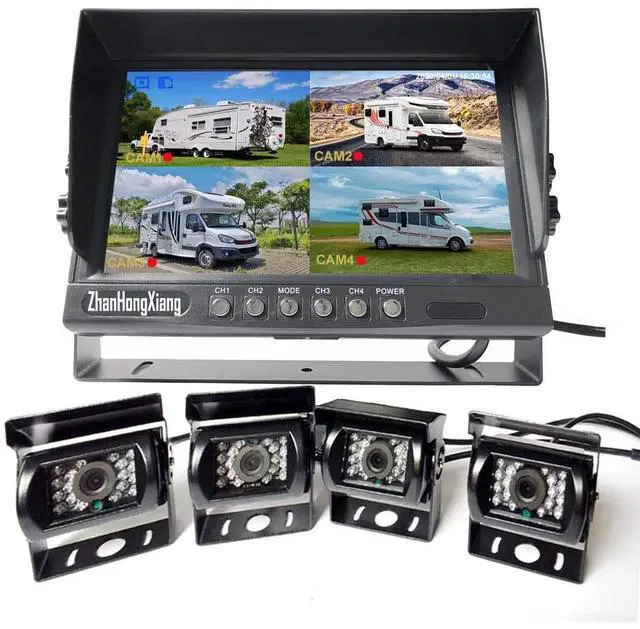

HD 1080P Backup Camera with 9" DVR Monitor System, 4 x 4Pin IR IP69 Waterproof Wired Reverse Rear View Mirror Camera + 9 inch Reversing Monitor for RV Truck/Trailer/Tractor/Box Truck
- 9 inch Large Monitor with 4x HD 1080P Rear View Backup Camera Hard wired version reverse security Camera system, guarantees safe andstable signal clear image to Avoid Blind spot
- 9 inch IPS Large Screen 4 Channels video input ,Quad Split Screen Display,It can display Full images/2image/3 images/4 images,Image can be adjust for mirror or none mirror or flip with Upside down at your enjoy
- AHD 1080P 2.0 Megapixel Rear view mirror Camera IP68 Waterproof with 4 Pin aviation Connector for Shockproof, 18 LED IR Night Vison view clearly at night, 100% Not Wash Out HD Mirror Sensor Rear View Camera, and 150wide view angle

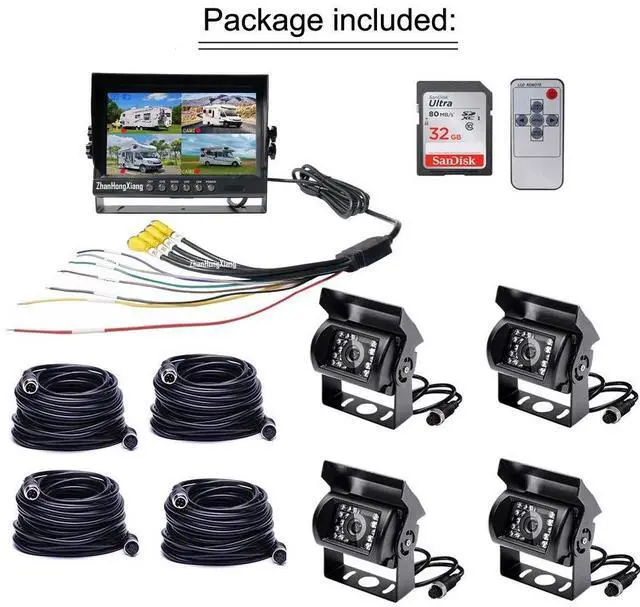

- The Backup Camera System come with four Backing camera ,and 10m/33ft + 20m/65ft 4-Pin Extension cable Best for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry 5th wheel semi truck and All other heavy Duty
- Monitor Build-in great loop DVR recorder,support 4 camera Recording at same time,Come with 32GB SD Memory for Video Record,Can search out video by m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Only need to connect the monitor power wire with car electronics system: Red wire to car ACC key on+Yellow wire to battery+Black wire to GND, Green Blue Grey wire to reversing or other Trigger+ (or No need to connect) Insert the Memory to the card slot and press Mode button to recordBest for All Vehicle such as Semi Box/ Truck/ Trailer/ Bus/ Trailer/ RV/ 5th Wheel/ Pickup/ Boat/ School Bus/ TractorSimple to installation, Easy to use Easy to mount9" CAR TFT LCD MONITOR
Display Size: 9
Inch AHD DVR ScreenPower requirement: DC
12V-24VConsumption:
8WVideo: 4 channels input, 4-Split Screen DisplayOur Split monitor can display 4 video at same time, Full images/3 images/4 images adjustableBuild in SD DVR Great Loop Recording functions for each Video, Come with 32GB SD Memory Card, Max support 128GBCan search out video with playback easilyImage Can be adjust mirror or none Mirror at your enjoyImage Support Flip with Upside DownSuitable for Front view/ rear view/side view360clearly View to avoid blind spotNet
Weight: Approx.
1000gLauguage: English, Chinese, AHD 18 LED Car Backup Camera100% Not Wash Out AHD 1080P Sensor
Mirror imageTV system: PAL/NTSC
Lens: 2.5 mm (150View angle )
Number of pixels: 2.0 Megapixel Camera (1920*1080)
Minimum illumination: 0 LUX
Backlight compensation: AutoWhite
Balance: Auto TracingAuto
Gain Control: AutomaticNight
vision: 18
LED IRVideo Output: 4Pin
Connectorwork Temperature: -20C~+60CPower
Requirement: DC
12V-24VWeight: Approx
300gWaterproof: IP 68
Display Size: 9
Inch AHD DVR ScreenPower requirement: DC
12V-24VConsumption:
8WVideo: 4 channels input, 4-Split Screen DisplayOur Split monitor can display 4 video at same time, Full images/3 images/4 images adjustableBuild in SD DVR Great Loop Recording functions for each Video, Come with 32GB SD Memory Card, Max support 128GBCan search out video with playback easilyImage Can be adjust mirror or none Mirror at your enjoyImage Support Flip with Upside DownSuitable for Front view/ rear view/side view360clearly View to avoid blind spotNet
Weight: Approx.
1000gLauguage: English, Chinese, AHD 18 LED Car Backup Camera100% Not Wash Out AHD 1080P Sensor
Mirror imageTV system: PAL/NTSC
Lens: 2.5 mm (150View angle )
Number of pixels: 2.0 Megapixel Camera (1920*1080)
Minimum illumination: 0 LUX
Backlight compensation: AutoWhite
Balance: Auto TracingAuto
Gain Control: AutomaticNight
vision: 18
LED IRVideo Output: 4Pin
Connectorwork Temperature: -20C~+60CPower
Requirement: DC
12V-24VWeight: Approx
300gWaterproof: IP 68
