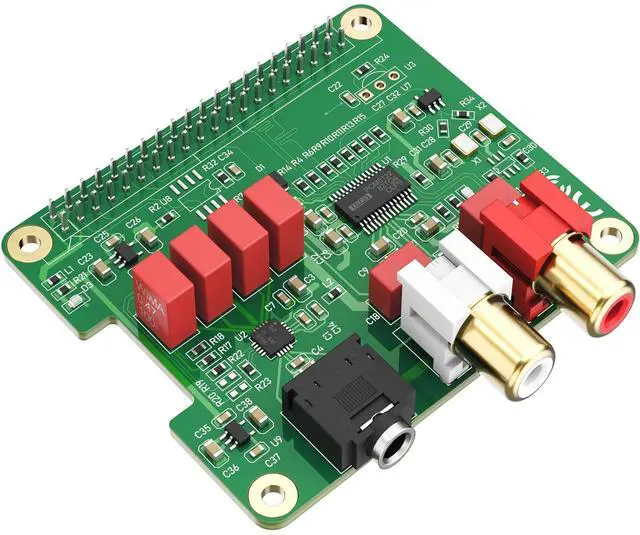

InnoMaker HiFi DAC HAT for Raspberry Pi 5/4/3B+/Zero ^^ PCM5122 384kHz/32bit DAC Audio Card Expansion Board ^^ Dual Oscillators & DOP ^^ RCA/3.5mm Output, 112dB SNR

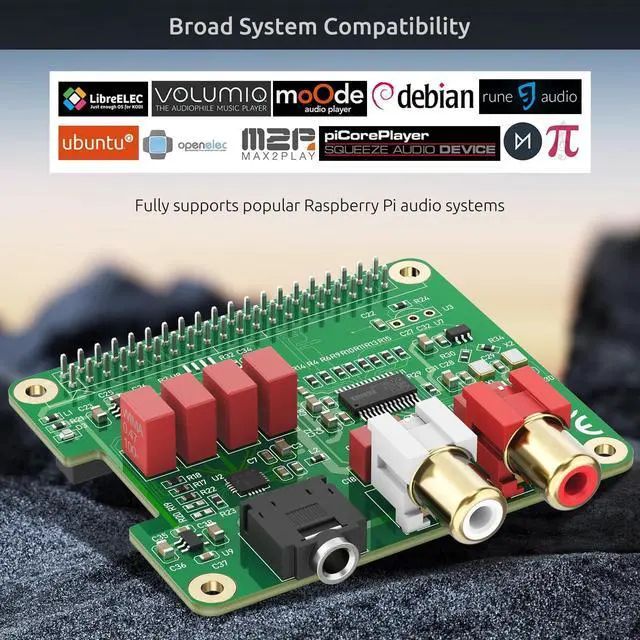

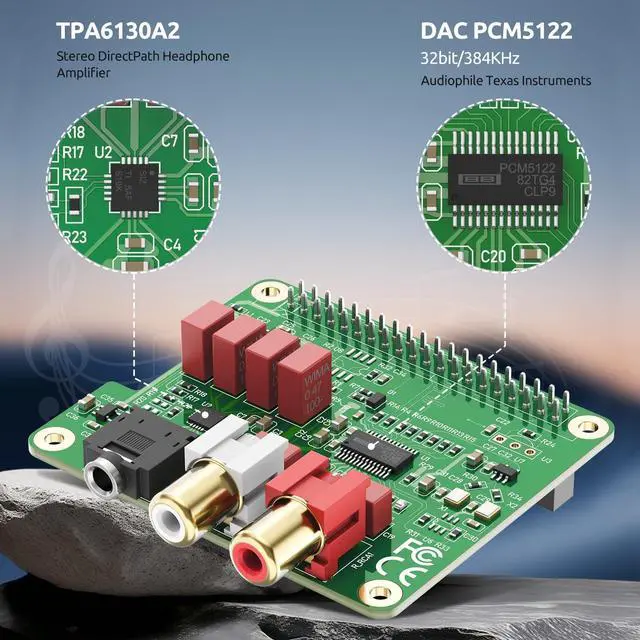

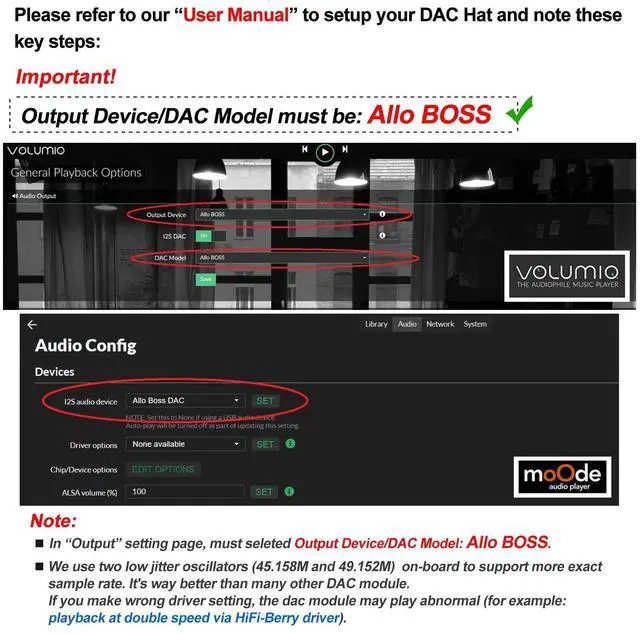

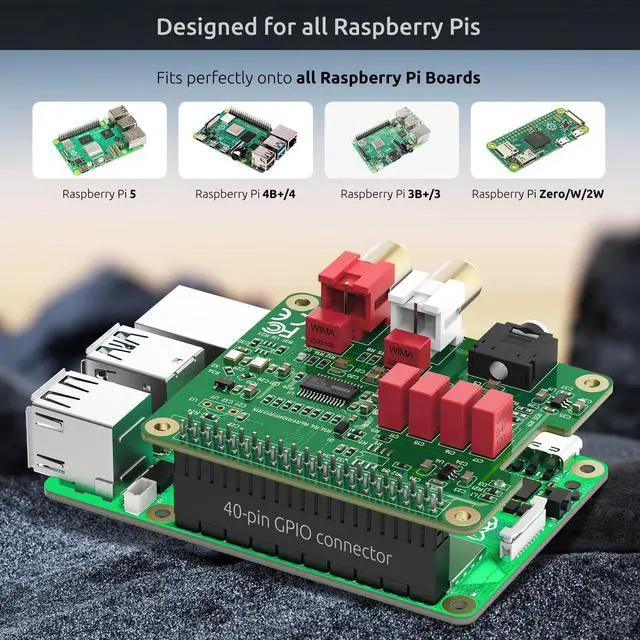

Direct-Connect HiFi DAC Expansion BoardSeamlessly integrates with Raspberry Pi 5, 4, 3B+, Zero & Zero W via 40-pin GPIO. No soldering or external wiring needed unlock studio-grade audio at 10% of traditional cost. Features 384kHz/32bit PCM5122 DAC with dual ultra-low jitter oscillators ( 45.158MH z/ 49.152MH z). ^^ Reference-Class Audio EngineeringTI PCM5122 reference DAC delivers 112dB SNR and -78dB THD+N, coupled with film capacitors for pristine RCA/ 3.5 mm outputs. Master-clock mode eliminates Raspberry Pi jitter, supporting DSD over PCM (DOP) and 8kHz-384kHz sampling. ^^ Universal OS & Software SupportTested with Volumio, Moode, RuneAudio, LibreELEC, and Raspberry Pi OS.

Stream high-res audio via network/NAS/USB storage. Onboard EEPROM enables plug-and-play configuration. ^^ Professional Dual-Output InterfaceGold-plated RCA line-level outputs ( 2.1V rms) + dedicated headphone amp (138mW@32 via TPA6133). Independent grounding eliminates crosstalk for studio monitors or high-impedance headphones. ^^ Developer-Optimized Design & SupportFeatures ultra-low-noise power regulation + reserved IR port (GPIO26). Compliant with Raspberry Pi HAT specs, with open-source SDK, documented API, and technical support via InnoMaker Wiki (link in manual).
