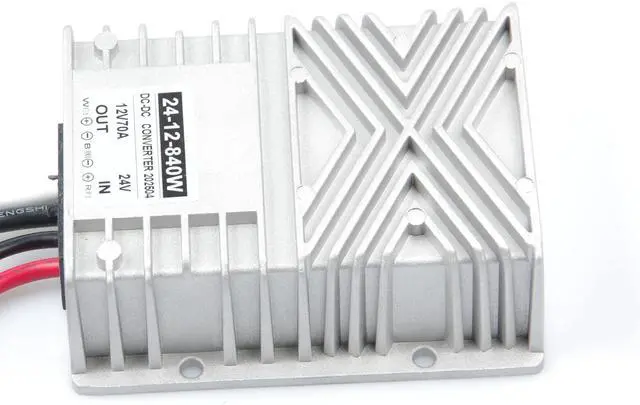

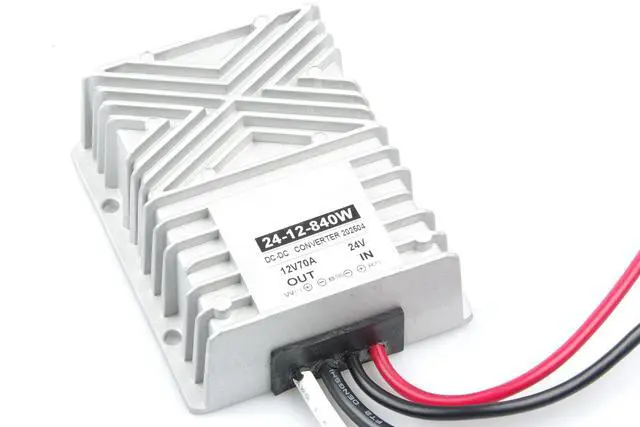

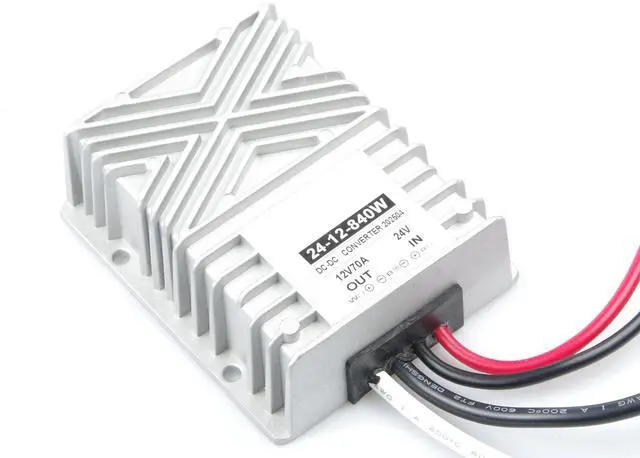

KNACRO High-Power Voltage Converter Regulator DC 24V Step-Down to 12V 70A 840W Car Truck Power Buck(DC 24V to 12V 70A)
- Car Truck Voltage Converter Regulator DC 24V to DC 12V 70A 840W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.
- Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, car audio device.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC24V to DC 12V step-down converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 6.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Input Rated Voltage: DC 24V*
Input Voltage Range: 18-36V DC*
Output voltage: DC12V 70A*
Output Rated Power: 840W*
Efficiency: 97% (half load); 95% (full load) *
Output Peak Power: 1200W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 100mV*
Total Size: 124*104*42mm (L*W*H) *
Weight: 960gPackage
included: 1 * DC 24V to DC 12V 70A 840w Voltage Converter
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 6.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Specifications
: *Input Rated Voltage: DC 24V*
Input Voltage Range: 18-36V DC*
Output voltage: DC12V 70A*
Output Rated Power: 840W*
Efficiency: 97% (half load); 95% (full load) *
Output Peak Power: 1200W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 100mV*
Total Size: 124*104*42mm (L*W*H) *
Weight: 960gPackage
included: 1 * DC 24V to DC 12V 70A 840w Voltage Converter
