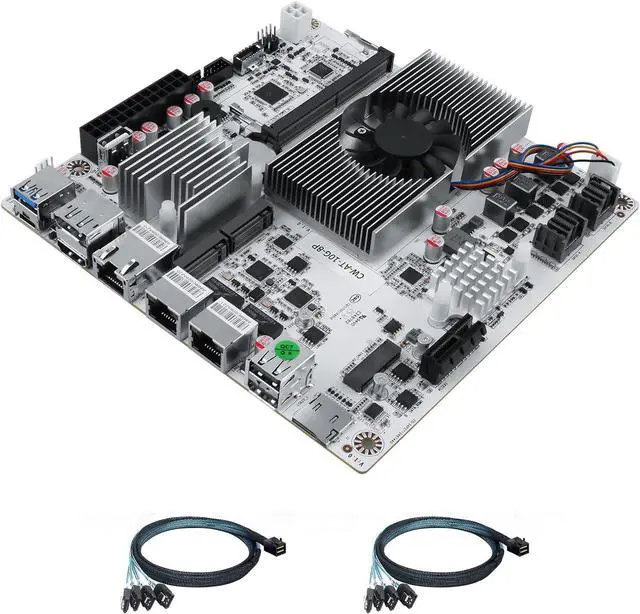

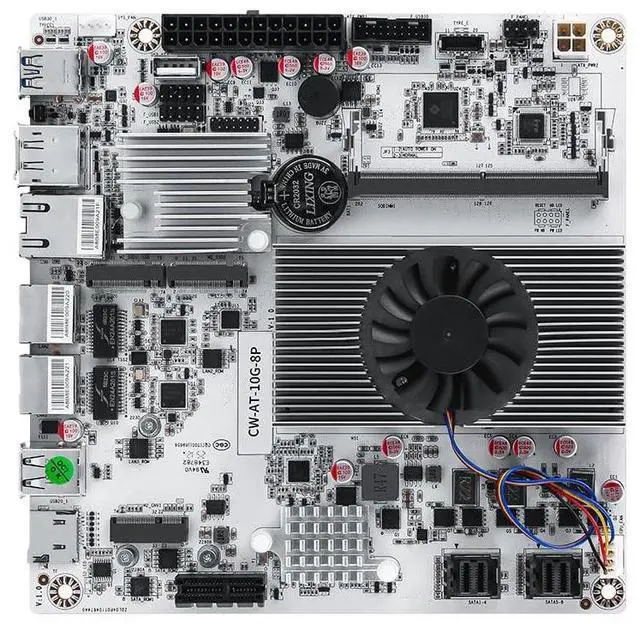

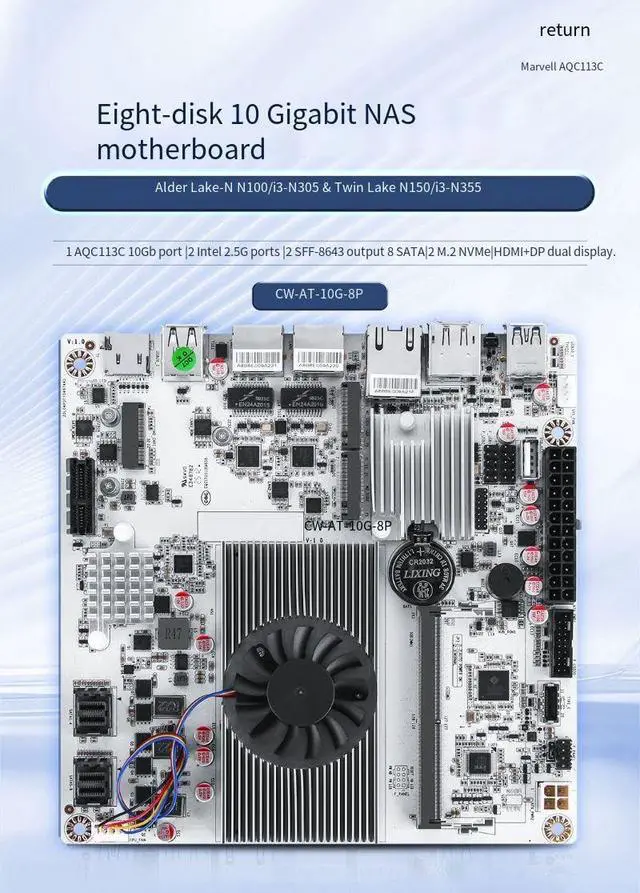

1 * 10G 2*i226-V 2.5G 3LAN NAS Motherboard 8*SATA3.0(2*SFF 8643) 2*M.2 NVMe 1*DDR5 PCI-E x4 Slot USB3.2+Type-C 10Gbp Soft Router ITX Mainboard M.2 E_Key WiFi HDMI/DP1.4 Supports 4K@60Hz (8P N150 NAS)
- Low power processorIntel Celeron Processor N150: 4 Cores 4 Threads, 6M Cache, up to 3.60 GHz, with Intel UHD Graphics.
- High speed network cardThis NAS motherboard has 3* LAN (2*Intel i226+1*10G) network ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- Industrial NAS Motherboard Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- Storage and Memory1 SO-DIMMDR5 memory slot DDR5 supports 4800MHz by default (note: compatible with 5200 and 5600, it will automatically downshift to 4800MHz) The maximum capacity of a single memory is 48GB 2 * M.2 NVMe PCle3.0x1 signal (2280) 8 * SATA3.0 (2 ASM1164 chip extensions) 1 * TF card storage
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

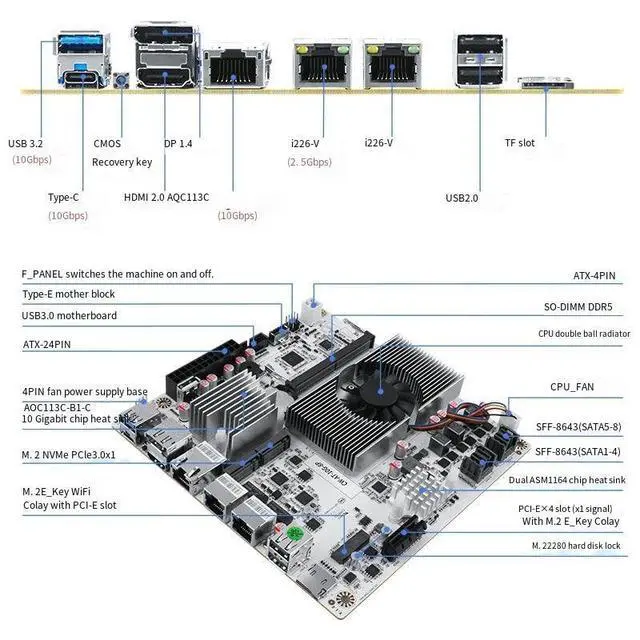

The new generation TwinLake has a 10-15% improvement in overall frequency performance compared to the previous generation AlderLake-N17CM * 17CM standard ITX board type ATX-24Pin+4Pin power supply1 SO-DIMMDR54800MHz slot supports up to 48G1 Marvel AQC113C 10G electrical port+2 Inteli226-V 2.5G electrical ports2 SFF-8643 terminals, one to four output, 8 SATA 3.02 M. 2 PCIe 3.0 x1 NVMe 2280 mounts1 HDMI 2.0 +1 DP 1.4 dual display supported 4K@60Hz1 USB 3.2 (USB-A)+1 Type-C (USB-C) 10Gbps speed1 PCI-E 3.0 x1 signal slot compatible with x1x4x8 slot application cardOnboard 1 USB 2.0 female socket+1 USB 3.0 female socket+1 Type-E female socket1 M.
2PCle&CNVi WiFi slot supports AX210 and WiFi6e modules1 TF card slot supports storage and partial system boot processor-Intel 12th generation Alder Lake-NN100/N200/i3-N305 processors-Intel 12th generation TwinLakeN150/N250/i3-N355 processorsMemory-Support notebook SO-DIMMDR5 memory technology-1 SO-DIMMDR5 memory slot-DDR5 supports 4800MHz by default (note: compatible with 5200 and 5600, it will automatically downshift to 4800MHz)-The maximum capacity of a single memory is 48GB TDP-Depends on CPU operating power consumption-2 * M. 2 NVMe PCle 3.0 x1 signal (2280) storage-8 * SATA 3.0 (2 ASM1164 chip extensions) -1 * TF card storagenetwork card-1 * Marvel AQC113C-B1-C RJ45 10G electrical port-2 * Intel i226-V RJ45 2.5G electrical port-Intel UHD GraphicsGraphics cardN100 750MHz24EU/i3-N 3051.25GH z32EU-N1501GHz24EU/i3-N 3551.35GH z32EU-HDMI 2.0 interface support 4K4096x2160@60Hz-DP 1.4 interface support 4K4096X2160@60Hzpower supplyATX-24Pin + ATX-4Pin1*CPU_FAN1*SYS_FAN1 * 4Pin_TX CPU power supply1 * 24Pin_TX motherboard power supply2*M. 2 NVMe Pcle 3.0 x1 22801 * SO-DIMM DDR5 single memory slot2 * SFF-8643 terminalOnboard interface1 * Power on/off pin (F_PANEL pin) 1 * Buzzer1 * PCle x4 breach slot (PCle 3.0 x1 signal)-1 * USB 2.0 socket (upright, can be plugged into USB flash drives such as encryption dongles)1 * USB 3.0 female socket1*Type-E1 * M. 2E. keyPCle&CNVWiFi transposon1*USB 3.21 *Type-C1*HDMI 2.01 *DP 1.4I 0 panel1 * 10G RJ45 electrical port2 * 2.5G RJ45 electrical port2*USB 2.01 *
TF interfacestructure size-Mini-1TX specifications: 6.7 -inch, 6.7 -inch, 17.0 cmx 17.0 cmoperating systemSupport Microsoft @ Windows 10/11 64 bit-Compatible with Linux/open-source NAS systems*Only supports EFI mode
2PCle&CNVi WiFi slot supports AX210 and WiFi6e modules1 TF card slot supports storage and partial system boot processor-Intel 12th generation Alder Lake-NN100/N200/i3-N305 processors-Intel 12th generation TwinLakeN150/N250/i3-N355 processorsMemory-Support notebook SO-DIMMDR5 memory technology-1 SO-DIMMDR5 memory slot-DDR5 supports 4800MHz by default (note: compatible with 5200 and 5600, it will automatically downshift to 4800MHz)-The maximum capacity of a single memory is 48GB TDP-Depends on CPU operating power consumption-2 * M. 2 NVMe PCle 3.0 x1 signal (2280) storage-8 * SATA 3.0 (2 ASM1164 chip extensions) -1 * TF card storagenetwork card-1 * Marvel AQC113C-B1-C RJ45 10G electrical port-2 * Intel i226-V RJ45 2.5G electrical port-Intel UHD GraphicsGraphics cardN100 750MHz24EU/i3-N 3051.25GH z32EU-N1501GHz24EU/i3-N 3551.35GH z32EU-HDMI 2.0 interface support 4K4096x2160@60Hz-DP 1.4 interface support 4K4096X2160@60Hzpower supplyATX-24Pin + ATX-4Pin1*CPU_FAN1*SYS_FAN1 * 4Pin_TX CPU power supply1 * 24Pin_TX motherboard power supply2*M. 2 NVMe Pcle 3.0 x1 22801 * SO-DIMM DDR5 single memory slot2 * SFF-8643 terminalOnboard interface1 * Power on/off pin (F_PANEL pin) 1 * Buzzer1 * PCle x4 breach slot (PCle 3.0 x1 signal)-1 * USB 2.0 socket (upright, can be plugged into USB flash drives such as encryption dongles)1 * USB 3.0 female socket1*Type-E1 * M. 2E. keyPCle&CNVWiFi transposon1*USB 3.21 *Type-C1*HDMI 2.01 *DP 1.4I 0 panel1 * 10G RJ45 electrical port2 * 2.5G RJ45 electrical port2*USB 2.01 *
TF interfacestructure size-Mini-1TX specifications: 6.7 -inch, 6.7 -inch, 17.0 cmx 17.0 cmoperating systemSupport Microsoft @ Windows 10/11 64 bit-Compatible with Linux/open-source NAS systems*Only supports EFI mode
