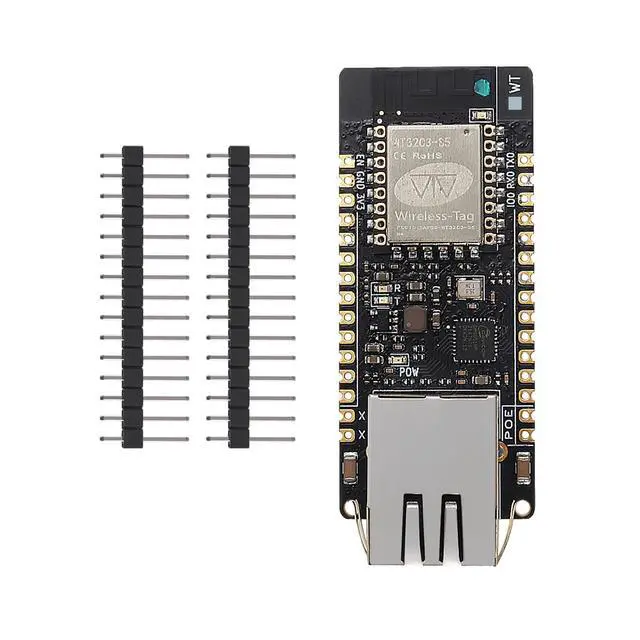

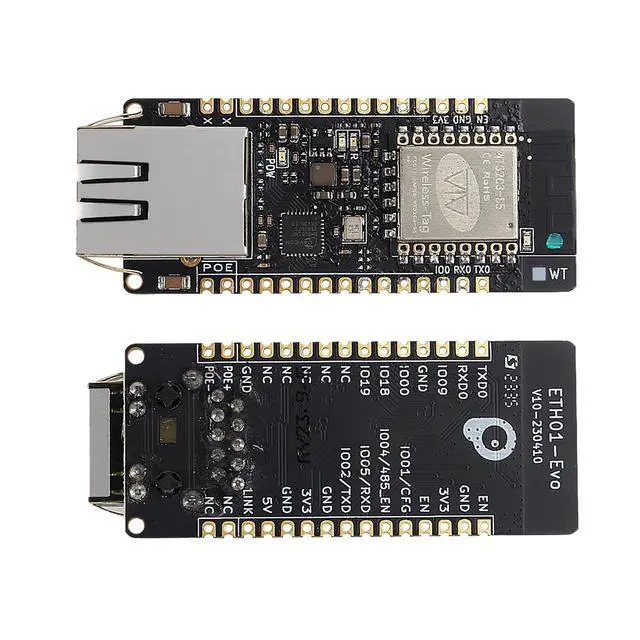

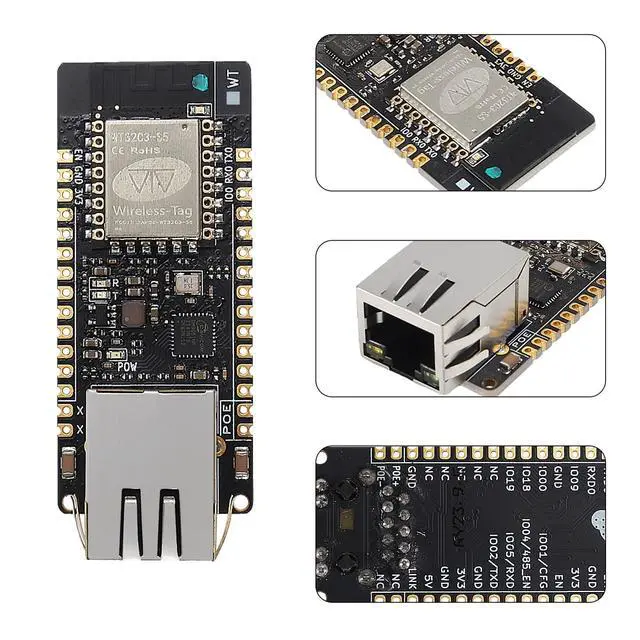

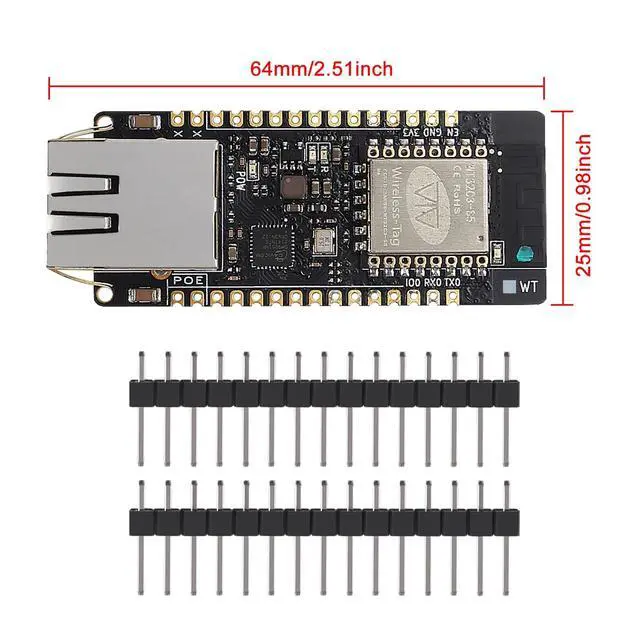

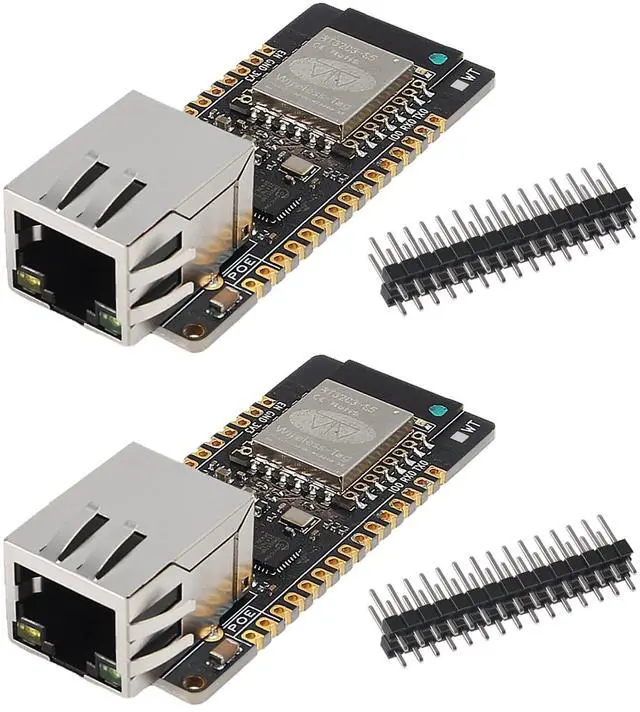

DWEII 2pack ETH01-EVO ESP32-C3 Development Board Module WiFi Bluetooth Compatible Ethernet Three-in-One
- ETH01-EVO is a three-in-one Internet of Things communication gateway based on the ESP32-C3 chip, supporting WIFI, Bluetooth, and Ethernet.
- It supports a complete TCP/IP protocol stack and AT commands, making it easy for users to achieve network connectivity for embedded devices and significantly reducing development time and cost.
- The module is compatible with both surface mount and through-hole connector designs, allowing it to be soldered directly onto PCBs or used on breadboards. Additionally, it has a reserved POE position, making it suitable for various scenarios.
- Suitable for electronic enthusiasts, software and hardware engineers, students, and other groups interested in the development of the Internet of Things and embedded system.
- Working voltage5V or 3.3V power supply (optional)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Highly integrated ESP32-C3 module with low power consumptionWireless connectivity with Wi-Fi and BLE and EthernetSupports AT instructionsSupports a complete TCP/IP protocol stackReserved
POE locationSpecificationsSoC: ESP32-C3
moduleCPU: RISC-V
32-bit single core processorConnectivity: 2.4 GHz WiFi ( 802.11 b/g/n) and Bluetooth 5 (LE) moduleNetwork port specifications: RJ45 10/100Mbit network port with POE inputSerial
Port Baud Rate: 80~5000000On board
FLASH: 32Mbitworking
voltage: 5V or 3.3V power supply (optional)
Working current:
Average: 80mAOperating
temperature range: -40C~+85CPower
supply current:
Minimum: 500
mAWI-FI mode: Station/softAP/SoftAP+station/P2PWIFI
security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type:
AES/RSA/ECC/SHAUPGRADE: Remote OTA upgrade through networkNetwork protocol: IPv4TCP/UDPIP
acquisition method: Static IP, DHCP (default)
User profile: AT+instruction setPackage 2PACK ETH01-EVO
WiFi Bluetoothcompatible Board
POE locationSpecificationsSoC: ESP32-C3
moduleCPU: RISC-V
32-bit single core processorConnectivity: 2.4 GHz WiFi ( 802.11 b/g/n) and Bluetooth 5 (LE) moduleNetwork port specifications: RJ45 10/100Mbit network port with POE inputSerial
Port Baud Rate: 80~5000000On board
FLASH: 32Mbitworking
voltage: 5V or 3.3V power supply (optional)
Working current:
Average: 80mAOperating
temperature range: -40C~+85CPower
supply current:
Minimum: 500
mAWI-FI mode: Station/softAP/SoftAP+station/P2PWIFI
security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type:
AES/RSA/ECC/SHAUPGRADE: Remote OTA upgrade through networkNetwork protocol: IPv4TCP/UDPIP
acquisition method: Static IP, DHCP (default)
User profile: AT+instruction setPackage 2PACK ETH01-EVO
WiFi Bluetoothcompatible Board
