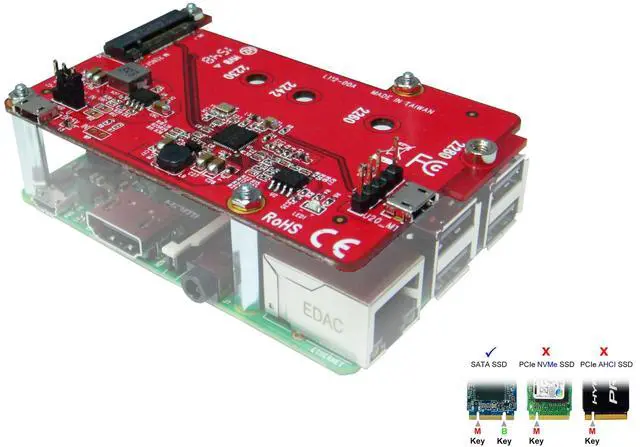

Ableconn PIUSB-M2S USB to M.2 SATA SSD Converter Stackable Board for Raspberry Pi
- Connect Raspberry Pi USB to M.2 SATA SSD. Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
- Includes Multi-Pi mounting accessory of standoff, nuts, and screws
- Support both USB micro-B connector and USB 5-Pin Pin header for Pi connection.
- Jumper selection of either using 5V USB bus power from Raspberry Pi (default setting), or using external 5V to provide sufficient power for high power demand SSD module to M.2 SSD.
- Fully RoHS compliant. High quality product. Made in Taiwan.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

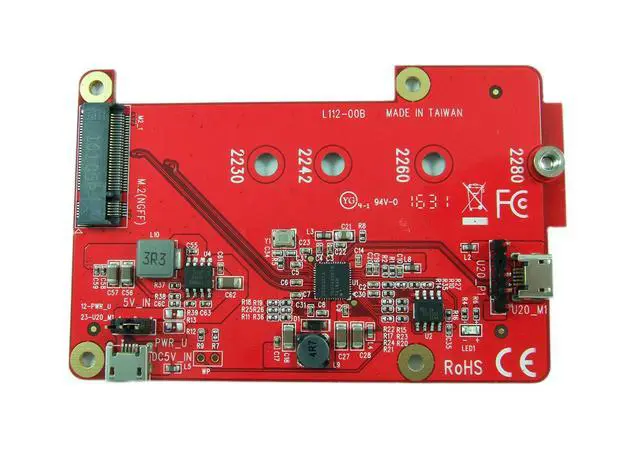

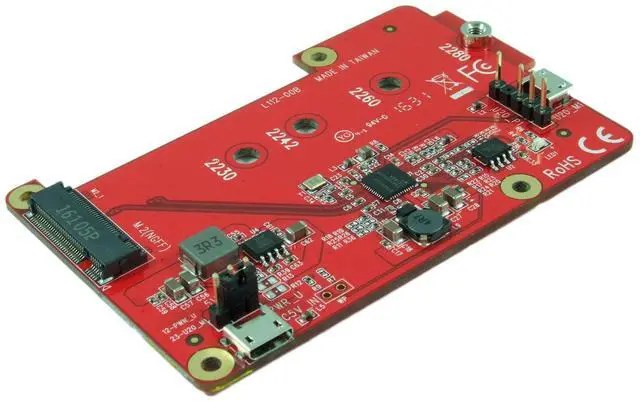

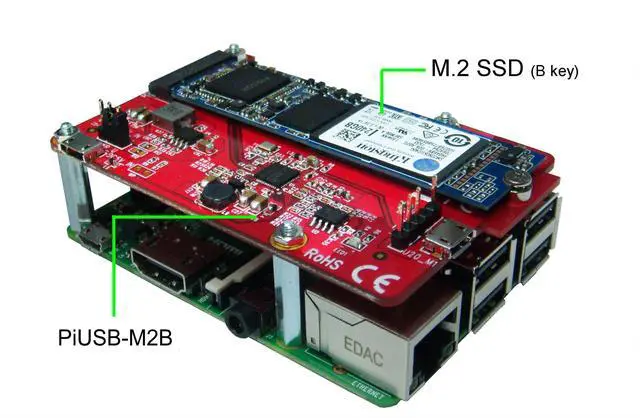

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PIUSB-M2S let you connect M. 2 SATA SSD module to your Raspberry Pi via the USB Micro-B port or the on-board USB pin header.
Specification* Connector: - 2 x USB 2.0 Micro-B female (one Micro-B with PWR-U labeled is for optional external 5V input power)- 1 x USB 5-pin pin header (Pin
Header assignment: 5V, D-, D+, NC, GND)- 1 x M. 2 NGFF type 2280-D5-B connector*
Chipset: Renesas uPD720231A*
Data transfer rate: - USB 2.0 up to 480
Mbps* Jumper Selection: - 1 x jumper for setting the power supply via USB (default mode) or external power input via the second USB Micro-B connector* Install 80/60/42/30 mm M. 2 NGFF SATA SSD to Raspberry Pi via USB* Movable M. 2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD* Supports dual-sided SSD module 1.5 mm component height on the top and bottom side* Compliant with Serial ATA Specification Revision 2.6 * Compliant with USB 2.0, OHCI 1.0 a, and EHCI 0.95 * On board activity LED for M.
2 access* Dimensions (LxWxH): 3.5 x 2.2 x 0.5 in / 89 x 58 x 12 mm* Fully RoHS compliant. * Made in TaiwanSystem Requirements* One free USB port* USB connection cablesPackage Contents* Ableconn PIUSB-M2S USB to M. 2 SATA SSD Converter Board* Multi-Pi mounting accessory: 4 x standoff, 4 x nut, and 4 x screw* 1 x mounting screw* 1x USB-A to Micro-B cable (4 in/10 cm)* Quick Installation Guide
Specification* Connector: - 2 x USB 2.0 Micro-B female (one Micro-B with PWR-U labeled is for optional external 5V input power)- 1 x USB 5-pin pin header (Pin
Header assignment: 5V, D-, D+, NC, GND)- 1 x M. 2 NGFF type 2280-D5-B connector*
Chipset: Renesas uPD720231A*
Data transfer rate: - USB 2.0 up to 480
Mbps* Jumper Selection: - 1 x jumper for setting the power supply via USB (default mode) or external power input via the second USB Micro-B connector* Install 80/60/42/30 mm M. 2 NGFF SATA SSD to Raspberry Pi via USB* Movable M. 2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD* Supports dual-sided SSD module 1.5 mm component height on the top and bottom side* Compliant with Serial ATA Specification Revision 2.6 * Compliant with USB 2.0, OHCI 1.0 a, and EHCI 0.95 * On board activity LED for M.
2 access* Dimensions (LxWxH): 3.5 x 2.2 x 0.5 in / 89 x 58 x 12 mm* Fully RoHS compliant. * Made in TaiwanSystem Requirements* One free USB port* USB connection cablesPackage Contents* Ableconn PIUSB-M2S USB to M. 2 SATA SSD Converter Board* Multi-Pi mounting accessory: 4 x standoff, 4 x nut, and 4 x screw* 1 x mounting screw* 1x USB-A to Micro-B cable (4 in/10 cm)* Quick Installation Guide
