$85.99
Meet Your Seller
ElecBit High Speed USB JTAG Emulator Debugger Programmer V9,CP2102 USB to 5PIN UART TTL,Support 1.8V 3.3V 5V, ARM ARM9 ARM7 Cortex M0/M1/M3/M4, Cortex A5/A8/A9 STM32 STM8 Debug Probes

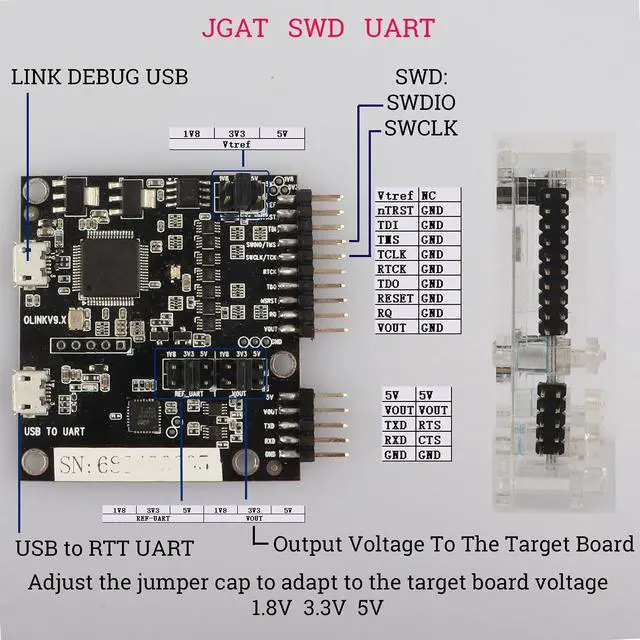

- This hardware supports USB to UART and JTAG, and the voltage supports 1.8V 3.3V 5V.Support standard JTAG interface and 2-wire SWD debugging interface.
- The Jtag main control chip uses STM32F205, can not afford to lose the firmware, hardware upgrade to the latest version of V9.4, can provide 3.3V voltage of 0.8A.

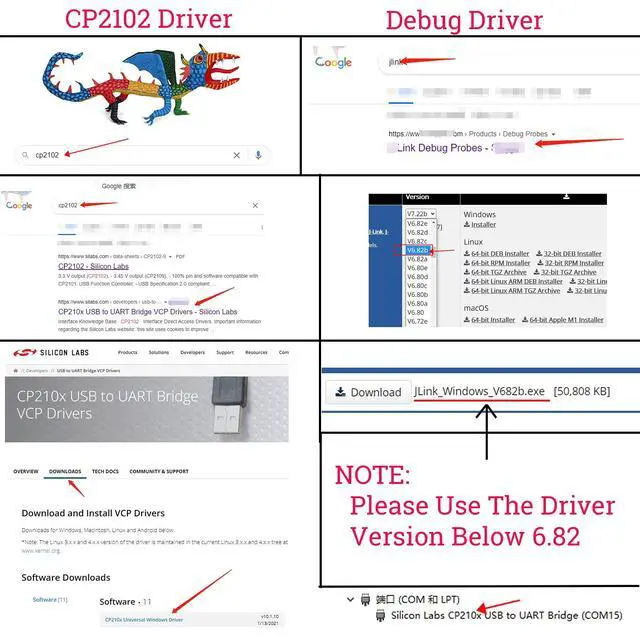

- Stable and reliable chipset CP2102,Baud rates: 300 bps to 1.5 Mbps,Connect MCU easily to your computer!Standard USB type A male and TTL 5pin connector. 5pins for 3.3V, RST, TXD, RXD, GND & 5V.

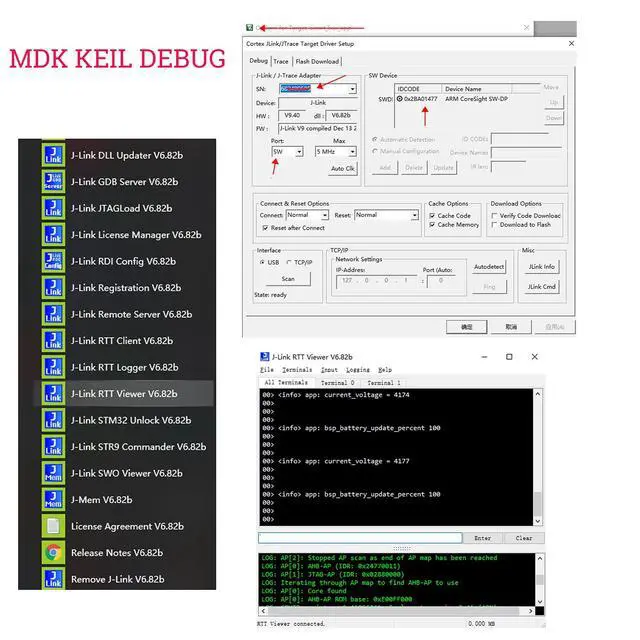

- Support IAR KEIL MDK,nRF51822 nRF52810 NRF52832 JLINK V9 DA14580 JLINKV9 SDW Emulation Debugger ARM Jtag Debugger Supports MDK/IAR/KEIL. Supports debugging of all ARM chips, supports MDK or IAR, and compile environment IDE supported by other standard J*Link standards.
- Kind reminder: Our device is designed for experienced embedded engineers or enthusiasts who know how to use it. Please refer to the pictures on this webpage for instructions. We apologize for not providing any add
+
+
