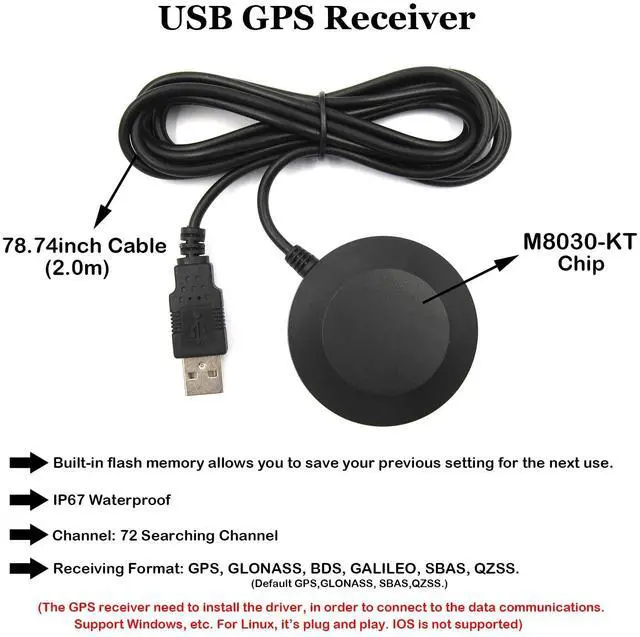

Geekstory BN-808 G-Mouse USB GPS Dongle Navigation Module M8030-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10
- BN-808 USB GPS Module support windows and linux system, not for android and IOS system.
- BN-808 USB GPS receiver uses the latest eighth generation chip (M8030-KT). The Receiving Format: GPS, GLONASS, BDS, GALILEO, SBAS and QZSS. default GPS+GLONASS+SBAS+QZSS combined positioning. If you need high accuracy, it is recommended to use GPS+GLONASS+SBAS+QZSS+GALILEO or GPS+BDS+SBAS+QZSS+GALILEO combined positioning mode, and have 72 Searching Channel; Frequency: GPS L1GLONASS L1BeiDou B1SBAS L1Galileo E1
- You need to install the driver to use BN-808 USB GPS Module on Windows system, but it is plug and play on Linux system

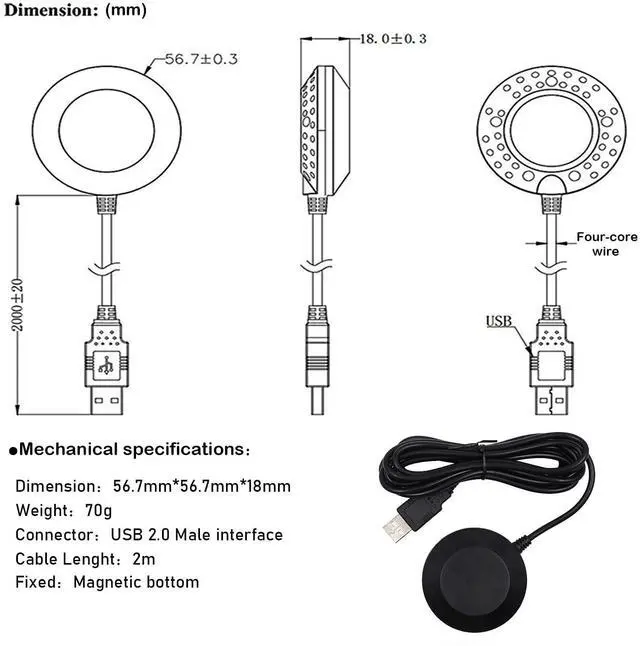

- This usb GPS receiver has a cable length of 2 meters, Bottom with magnet adsorption, BN-808 USB GPS Module has 4M flash to save the configuration. So you don't need to reset the data when you use it next time
- The product documentation link cannot be displayed. If you need technical documentation, please click Geekstoryto em-ail us.
- Documentation you can find at
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

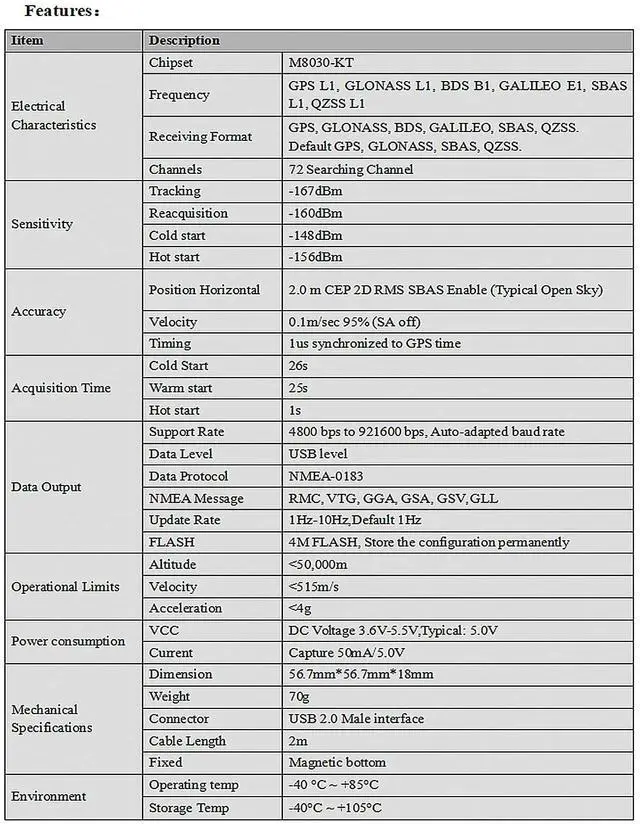

Description:
Chip: U8 (M8030-KT)Receiving
Format: GPS, GLONASS, Galileo, BeiDou, QZSS and
SBAS
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo
E1Channels: 72
Searching ChannelTracking:
-167dBmReacquisition: -160dBmCold
start: -148dBmHot
start: -156dBmPosition
Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical
Open Sky) Velocity: 0.1 m/sec 95% (SA off)
Timing: 1us synchronized to
GPS timeSupport Rate: 4800bps to 921600bps, Default 9600bpsData
Level: Default
USB levelData Protocol: NMEA-0183 or UBX, Default
NMEA-0183Single GNSS: 1Hz-18HzConcurrent
GNSS: 1Hz-10Hz, Default 1Hzv
FLASH: build in 4M FLASH, You can free configure output dataVCC: DC Voltage 3.6V - 5.5V, Typical: 5.0VC
urrent: Capture
50mA@ 5.0VS oftware: U-centerPackage
Includes: 1 X BN-808 GPS Module
Chip: U8 (M8030-KT)Receiving
Format: GPS, GLONASS, Galileo, BeiDou, QZSS and
SBAS
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo
E1Channels: 72
Searching ChannelTracking:
-167dBmReacquisition: -160dBmCold
start: -148dBmHot
start: -156dBmPosition
Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical
Open Sky) Velocity: 0.1 m/sec 95% (SA off)
Timing: 1us synchronized to
GPS timeSupport Rate: 4800bps to 921600bps, Default 9600bpsData
Level: Default
USB levelData Protocol: NMEA-0183 or UBX, Default
NMEA-0183Single GNSS: 1Hz-18HzConcurrent
GNSS: 1Hz-10Hz, Default 1Hzv
FLASH: build in 4M FLASH, You can free configure output dataVCC: DC Voltage 3.6V - 5.5V, Typical: 5.0VC
urrent: Capture
50mA@ 5.0VS oftware: U-centerPackage
Includes: 1 X BN-808 GPS Module
