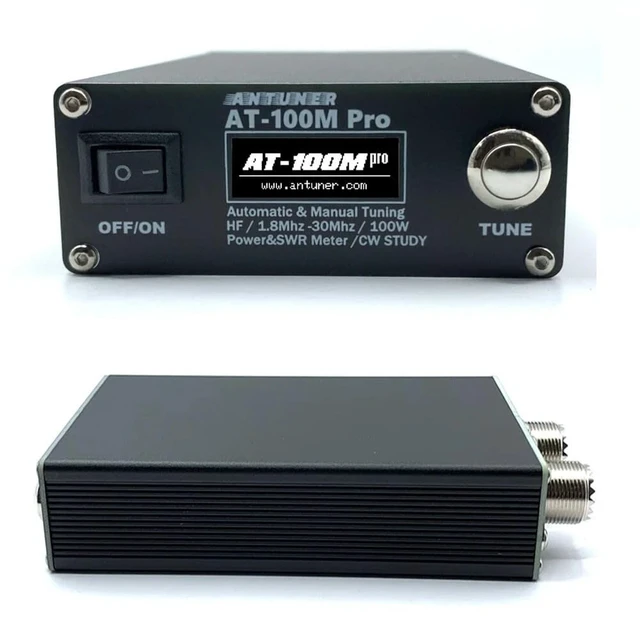

AT100M Pro Antenna Tuner 1.8Mhz-30Mhz Automatic Manual Tuning Device 100W Power Meter SWR Meter Morse Code

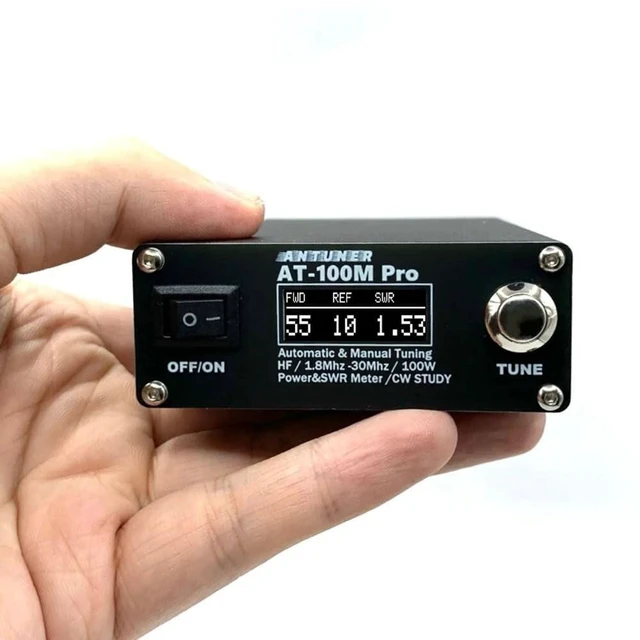

- Small and Portable: This product is small in size, compact in appearance, strong and solid metal housing, but the weight is only 400g, with high portability.
- Antenna Tuner & Standing Wavemeter 2in1 Design: This product is not only an antenna tuner, but also a power meter, and standing wavemeter, support to display standingwave value, forward power, and reverse power. The power meter mode supports a maximum display of 150W SSB/CW in an untuned state. Please calibrate the standingwave power value of the equipment when using or replacing the radio for the first time.
- Powerful Tuning Ability: Built-in large capacitors and inductance value combinations, greatly improve tuning success rate and reduce the trouble of repeated antenna feed adjustment. The maximum combined value of capacitor is up to 3869pF, and the maximum combined value of inductor is up to 17.21uH.
- Built-in Professional Settings: Supports 13 parameter configurations, suitable for senior players' depth customization,
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Attention: 1. Please fully read the product manual and precautions before using the equipment; 2. Before using its own tuning, be sure to adjust the radio power to the lowest power, prevents the damage to the radio or tuning; 3. When using or replacing the radio for the first time, it is necessary to recalibrate the standingwave power value of the equipment. When the standingwave power value displayed by the radio and the equipment is inconsistent, the radio shall prevail; 4. Please use the USB Type-C charging cable included with this product for charging; 5. Keys are not included in the shipping list.
Name: Antenna
TunerMaterial:
plastics+metalBattery: 1 * built-in 3300mAh battery (included)
Radio support capabilities: Supports most radio stations and antennas on the marketFrequency/Power: 1.8M hz-18Mhz SSB/CW 0.1W -100W 1.8M hz18Mhz Frequency Modulation/AM/FT8 0.1W -50W18Mhz-30Mhz SSB/CW 0.1W -50W 18Mhz-30Mhz Frequency Modulation/AM/FT 80.1W -50WAutomatic memory channel: 60
groupsMaximum combined inductance value: 17.21
uHMaximum combined capacitance value: 3869pFStanding
wavemeter: supportPower
meter: Support

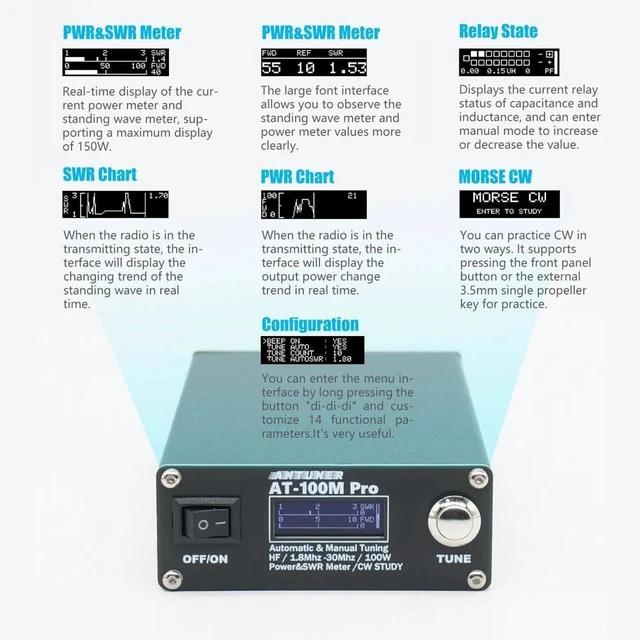

( 0.1W -150W)Interactive mode: Bar mode, harge font mode, relay mode, power curve graph mode, standingwave curve graph mode, CW exerciser mode, configuration
menu modeAutotune mode: supportManual
tuning mode: supportCW

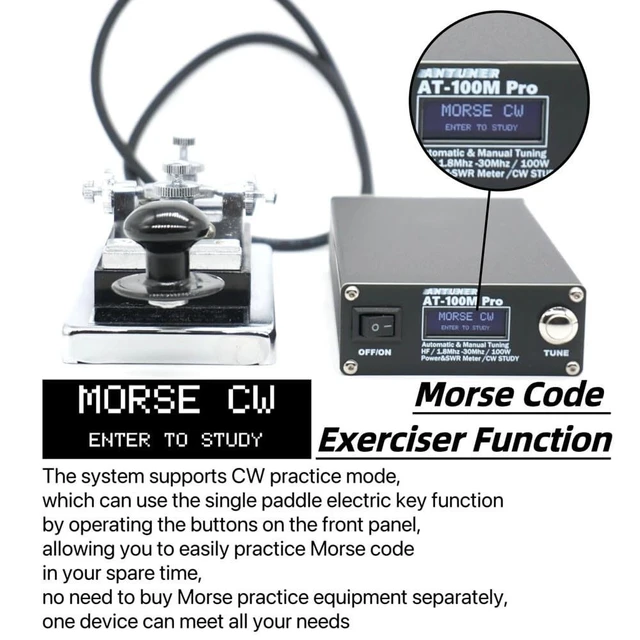

exercises: Supports external 3.5 mm headphone jack, single paddle CW practice, supports front panel button triggerCW propeller interface: 3.5MM
headphone jackBuzzer: Support (automatic prompt when the standingwave exceeds the set value)
Charging interface: USB-TYPE
CCharging time: about
4 hoursProduct power: Maximum
5WStandby time: About 150-200 hours (no tuning action)
Tuning duration: About 10-25 hours (activate 1-3 relays)Item size: 154 * 74 * 29mm / 6.06 * 2.91 * 1.14 inItem weight: 400g
/ 0.88 lbPackage size: 250 * 125 * 40mm / 9.84 * 4.92 * 1.57 inPackage weight: 490g / 1.08 lb
Specifications
:Name: Antenna
TunerMaterial:
plastics+metalBattery: 1 * built-in 3300mAh battery (included)
Radio support capabilities: Supports most radio stations and antennas on the marketFrequency/Power: 1.8M hz-18Mhz SSB/CW 0.1W -100W 1.8M hz18Mhz Frequency Modulation/AM/FT8 0.1W -50W18Mhz-30Mhz SSB/CW 0.1W -50W 18Mhz-30Mhz Frequency Modulation/AM/FT 80.1W -50WAutomatic memory channel: 60
groupsMaximum combined inductance value: 17.21
uHMaximum combined capacitance value: 3869pFStanding
wavemeter: supportPower
meter: Support
( 0.1W -150W)Interactive mode: Bar mode, harge font mode, relay mode, power curve graph mode, standingwave curve graph mode, CW exerciser mode, configuration
menu modeAutotune mode: supportManual
tuning mode: supportCW
exercises: Supports external 3.5 mm headphone jack, single paddle CW practice, supports front panel button triggerCW propeller interface: 3.5MM
headphone jackBuzzer: Support (automatic prompt when the standingwave exceeds the set value)
Charging interface: USB-TYPE
CCharging time: about
4 hoursProduct power: Maximum
5WStandby time: About 150-200 hours (no tuning action)
Tuning duration: About 10-25 hours (activate 1-3 relays)Item size: 154 * 74 * 29mm / 6.06 * 2.91 * 1.14 inItem weight: 400g
/ 0.88 lbPackage size: 250 * 125 * 40mm / 9.84 * 4.92 * 1.57 inPackage weight: 490g / 1.08 lb
