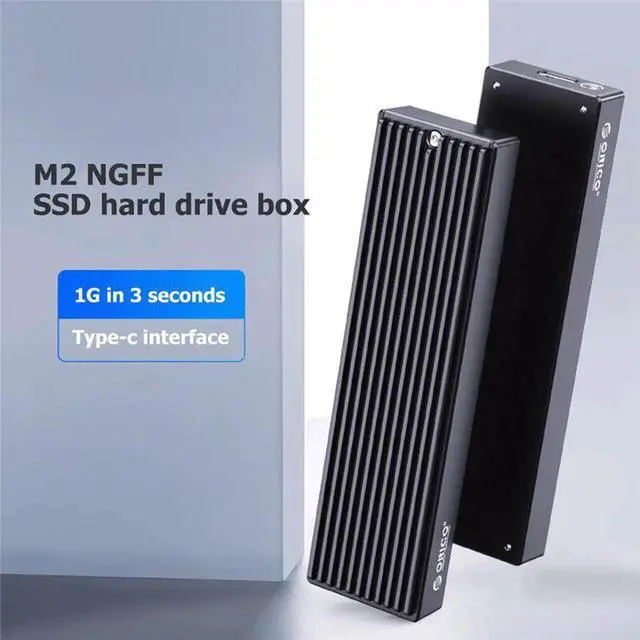

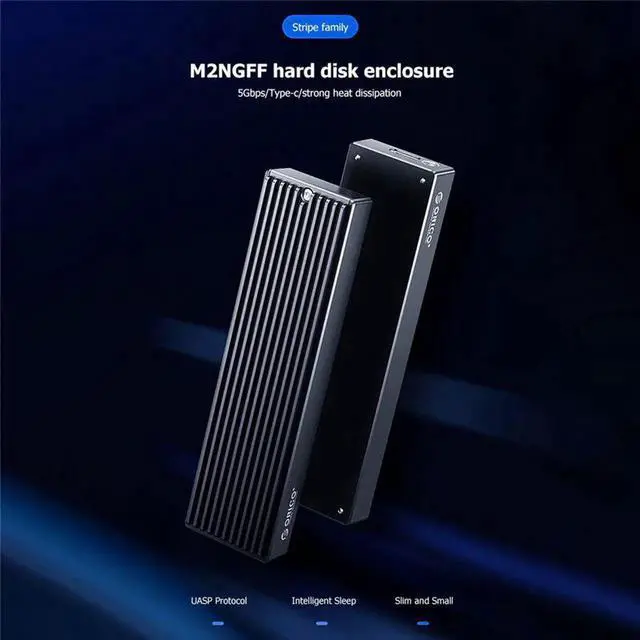

Type-C M.2 NGFF/NVME Solid State Drive Enclosure Box USB3.1 5/10Gbps External 2230/2242/2260/2280 SSD Case

Features:

M2PV-C3/M2PF-C3 Type-C M. 2 NVME/NGFF SSD Mobile Enclosure Aluminum Alloy USB 3.1 5Gbps/10Gbps External Solid State Drive Box Case for 2230 2242 2260 2280

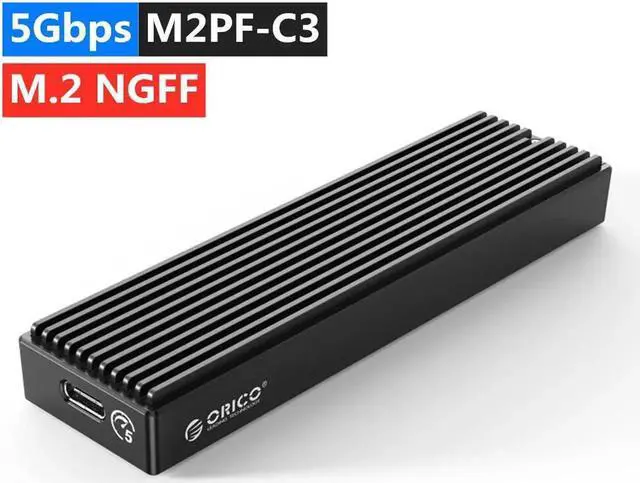

Model: M2PF-C3 (NGFF)

Feature:

Using for JMicron JMS580 high-end master control solution, external USB 3.1 Type-C output interface, can support up to 5Gbps transmission rate.

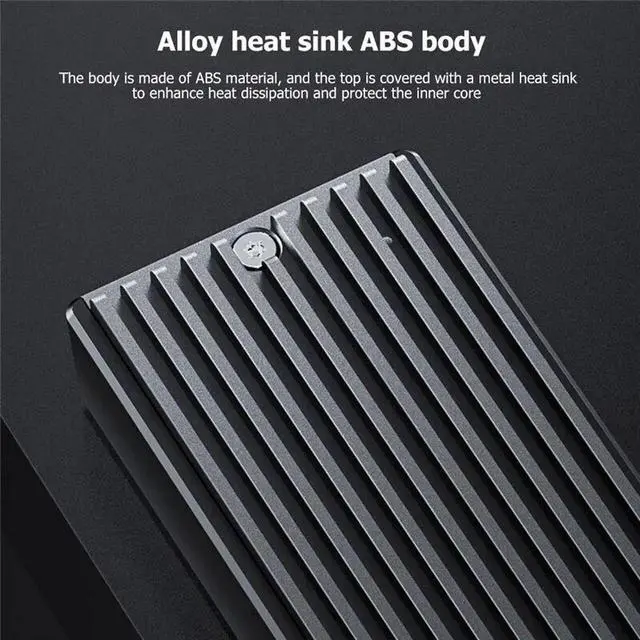

The body is made of ABS material, and the top is covered with a metal heat sink to enhance heat dissipation and protect the inner core.

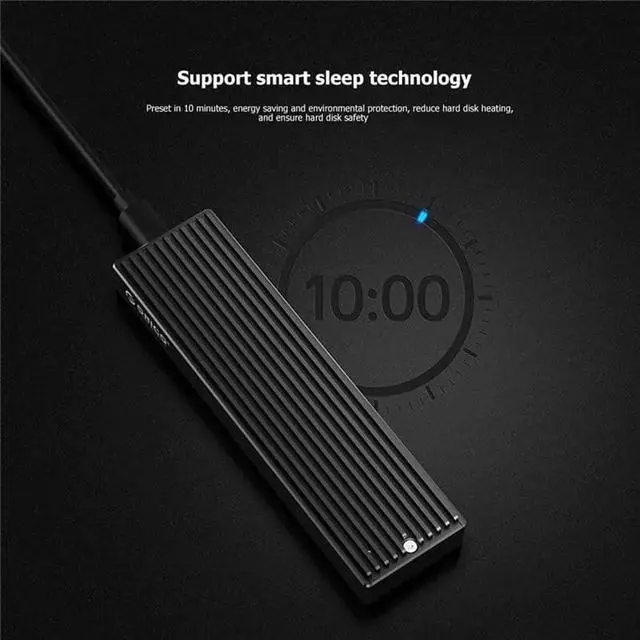

Support smart hibernation technology, 10-minute preset, energy saving and environmental protection, reduce hard disk heating, and ensure hard disk safety.

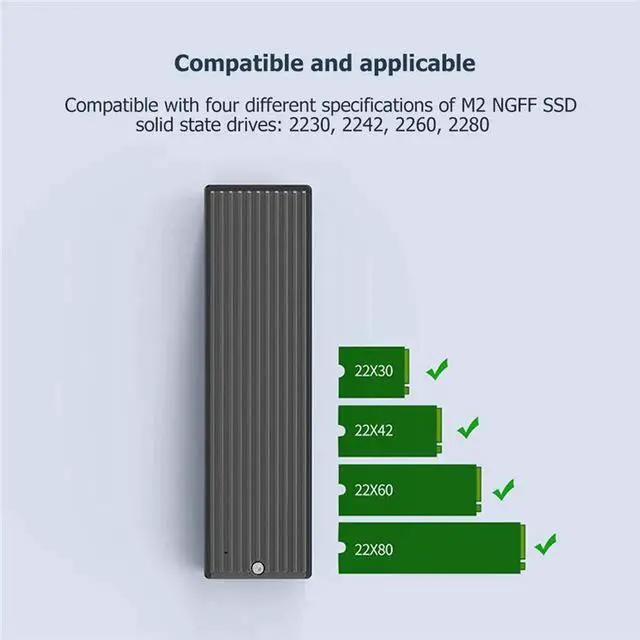

Compatibly Support 4 different specifications M. 2

NGFF SSD: 2230, 2242, 2260, 2280.

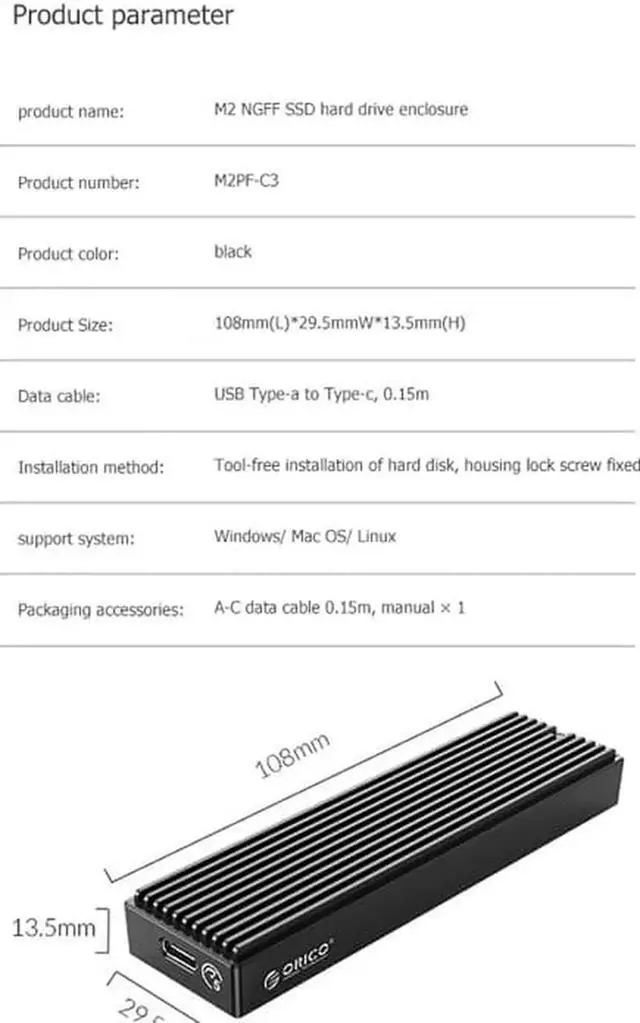

Specification:

Model: M2PF-C3

Colour: Black

Material: Aluminum Alloy + ABS Plastic

Main Control Scheme: for JMicron JMS580

Output Interface: USB 3.1 GEN1 Type-C

Transmission Rate: 5Gbps

Support Capacity: Up To 2TB

Data Cable: USB Type-A to Type-C, 0.15 m/ 5.91"

Installation Method: Tool-Free Installation of Hard Disk, Housing Lock Screw Fixed

Support System: for Windows/MAC OS/ Linux

Product Size: 108 X 29.5 X 13.5 mm/ 4.25 X 1.16 X 0.53"

Model: M2PV-C3 (NVME)

Feature:

Using for Realtek RTL9210 high-end master control solution, external USB 3.1 Type-C output interface, can support up to 10Gbps transmission rate.

The body is made of ABS material, and the top is covered with a metal heat sink to enhance heat dissipation and protect the inner core.

Support smart hibernation technology, 10-minute preset, energy saving and environmental protection, reduce hard disk heating, and ensure hard disk safety.

Compatibly Support 4 different specifications M. 2

NVME SSD: 2230, 2242, 2260, 2280.

Specification:

Model: M2PV-C3

Color: Black

Material: Aluminum Alloy + ABS Plastic

Main Control Scheme: for Realtek RTL9210

Output Interface: USB 3.1 GEN2 Type-C

Transmission Rate: 10Gbps

Support Capacity: Up To 2TB

Data Cable:

USB Type-A to Type-C, 0.15 m/ 5.91"

USB Type-C to Type-C, 0.15 m/ 5.91"

Installation Method: Tool-Free Installation of Hard Disk, Housing Lock Screw Fixed

Support System: for Windows/Mac OS/ Linux

Product Size: 108 X 29.5 X 13.5 mm/ 4.25 X 1.16 X 0.53"

Attention: M2PF-C3 5Gbps is used for M. 2 NGFF SSD, M2PV-C3 10Gbps is used for M. 2 NVME SSD.

Package included:

M2PF-C3: (5Gbps)

1 X SSD Case

1 X 0.15 m USB Type-A to Type-C Cable

1 X Manual

M2PV-C3: (10Gbps)

1 X SSD Case

1 X USB Type-A to Type-C Cable

1 X USB Type-C to Type-C Cable
