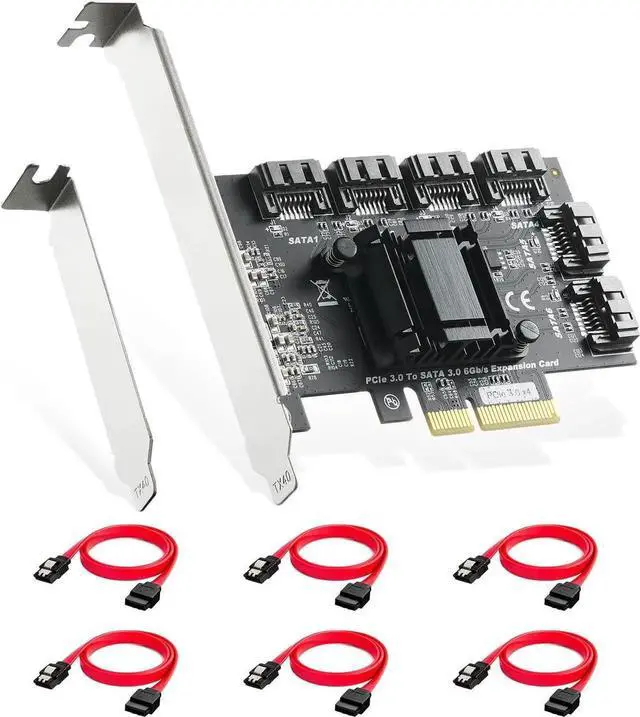

Aomoproing PCIE X4 to SATA Card 6 Port, 6Gbps SATA 3.0 Controller, Includes 6 SATA Cables and Low Profile Bracket, for Windows 10/11

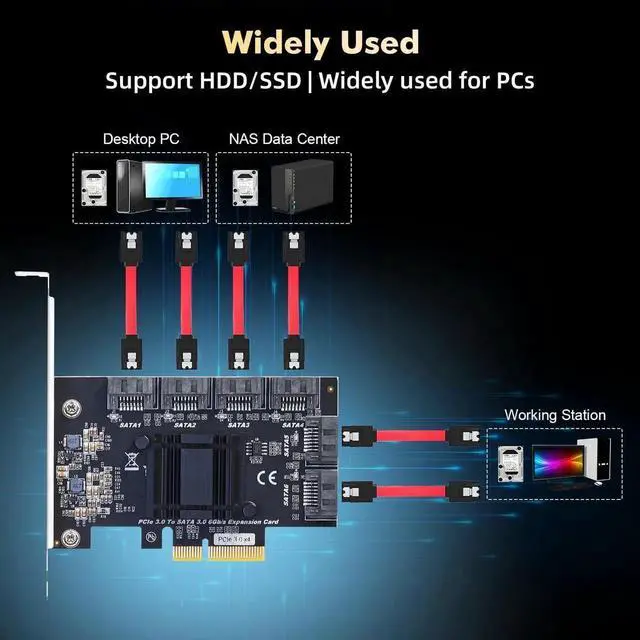

The SATAPCIT6 is 6-port SATA III (6 Gbps) to PCI Express x2 Gen 3 Host Card. It adds 6 AHCI SATA III port to computer though a PCIe slot (x4), delivering multiple internal 6Gbps connections for high performance hard drives and Solid State Drives (SSDs).

With full support for SATA 3.0 hard drives and data transfer speeds of up to 6Gbps, the adapter card feature a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for internal SATA 600 MB/s storage needs.

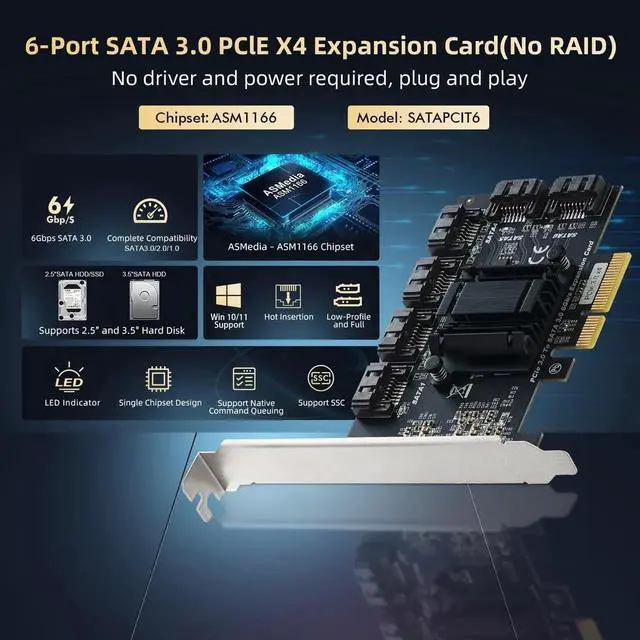

Features:

6 AHCI SATA III (6 Gbps) ports through PCI Express x4

Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II ( 1.5 / 3.0G bps)

Compliant with PCI Express 3.0 standards

Port Multiplier Command-based switching supported

Natively supported single chipset design

Support Native Command Queuing (NCQ)

Support SSC for both PCIe and SATA

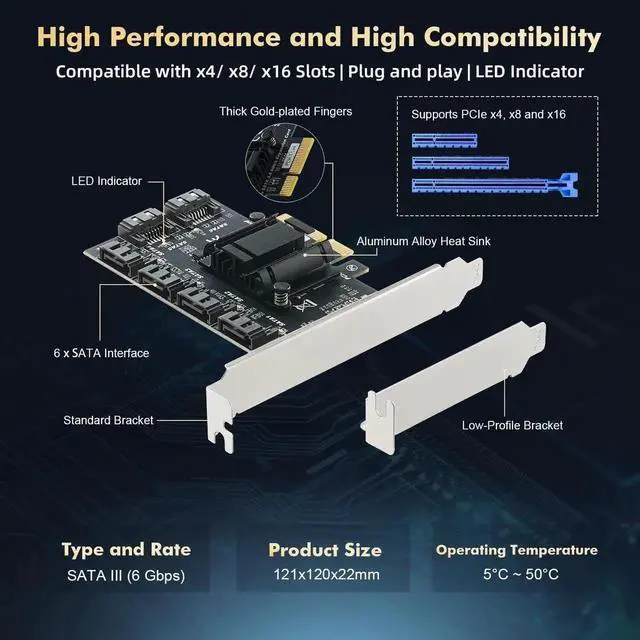

LED Indicators: HDD Activity

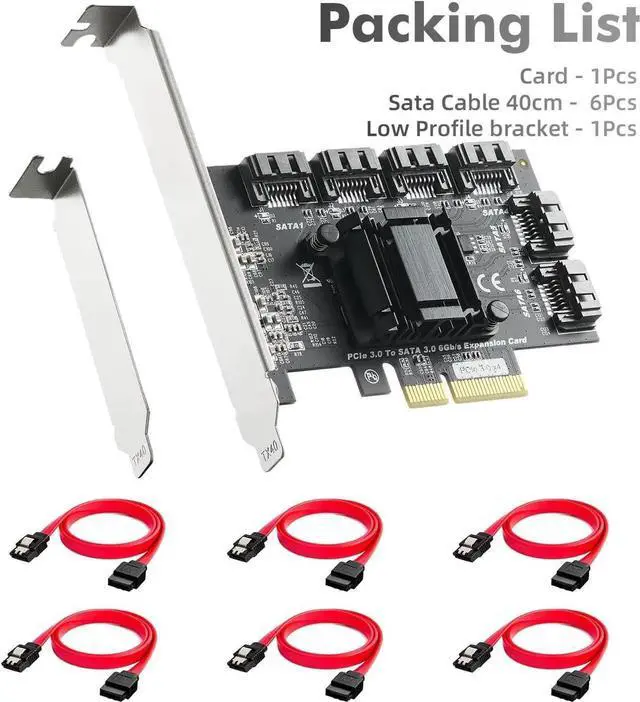

Includes Low Profile/Half-Height installation bracket

Product Specification:

Chipset: ASMedia ASM1166

Bus Type: PCI Express x4

Card Type: Standard / Low Profile

Interface: SATA

Ports: 6

Bootable: Yes

Hot Swap Capability: Yes

Port Multiplier: Yes

Type and Rate: SATA III (6 Gbps)

Connector Type (s): PCI Express x4 Male

Internal Ports: SATA (7 pin, Data) Plug

System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4, x8 or x16 slot

Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
