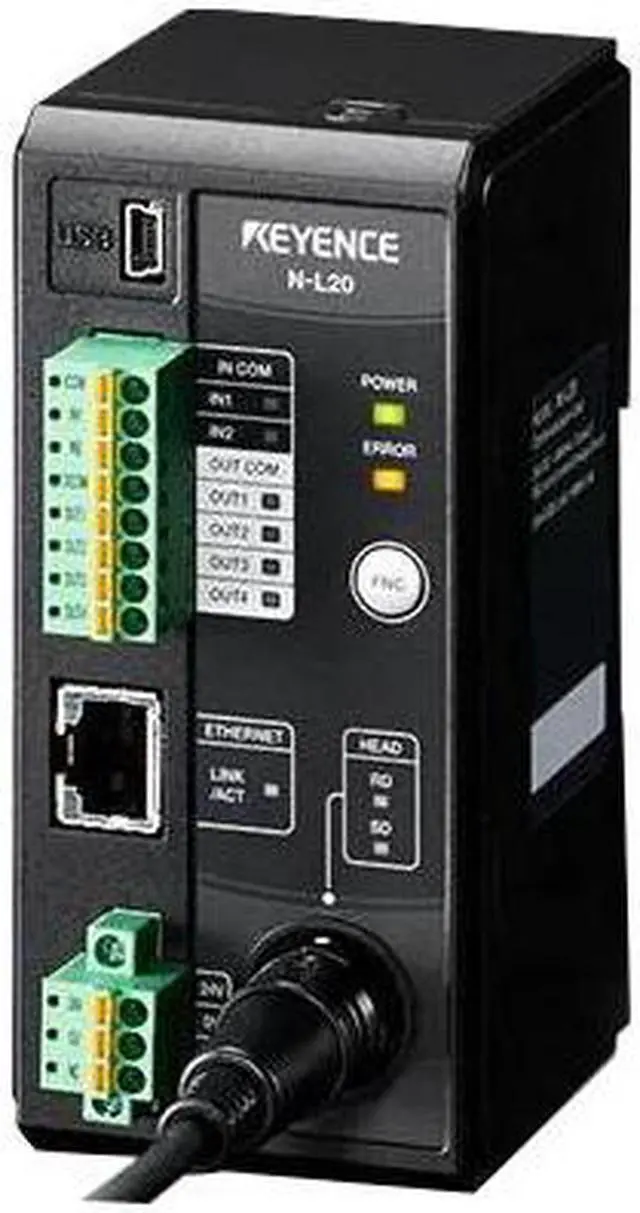

Keyence N-L20 Ethernet Communication Module Unit (NOB)

Keyence N-L20 Ethernet Communication Module Unit (NOB)

Brand:   Keyence

Model:   Keyence N-L20

Product Type:   Communication Unit

Power voltage:   24 VDC +10 %, -20 %

Number of inputs:   2 inputs (IN1 and IN2)

Number of outputs:   4 outputs (OUT1 to 4)

Maximum rating:   26.4 VDC

Minimum ON voltage:   15 VDC

Rated load:   30 VDC, 100 mA

Maximum OFF current:   1 mA

Leakage current when OFF:   0.1 mA or less

Residual voltage when ON:   1 V or less

Current consumption:   380 mA or less

Communication standard:   Ethernet: IEEE 802.3 compliant, 10BASE-T/100BASE-TX USB: USB2.0 Full Speed compliant

Ambient temperature:   0 to +50 °C 32 to 122 °F (No freezing)

Storage temperature:   -20 to +60 °C -4 to 140 °F (No freezing)

Relative humidity:   35 to 85 % RH (No condensation)

Output Voltage:   208 - 230 V AC

Protocols:   Web, SNMP, Telnet
