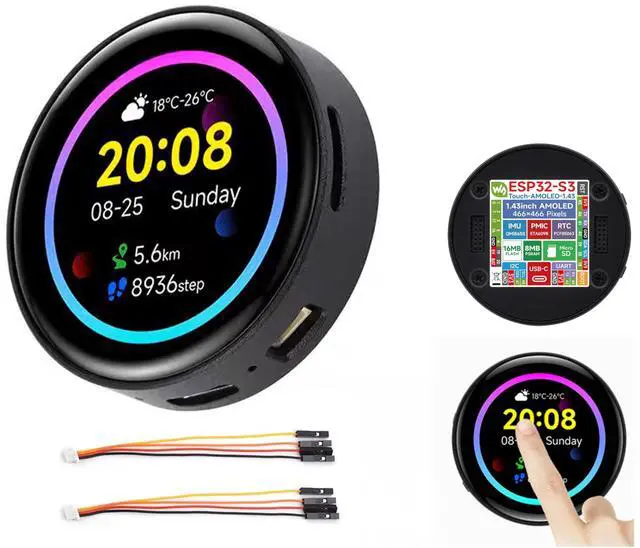

ESP32-S3 1.43inch AMOLED Touch Display Development Board, 466x466 QSPI Interface AMOLED Round LCD, Onboard Accelerometer and Gyroscope Sensor RTC Chip, ESP32 with Display, with CNC Metal Case
ESP32-S3 1.43inch AMOLED Display Development Board, adopts ESP32-S3R8 chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. The AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image ( This is with CNC metal case version, better protection ).
Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue too th 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB P SRAM.

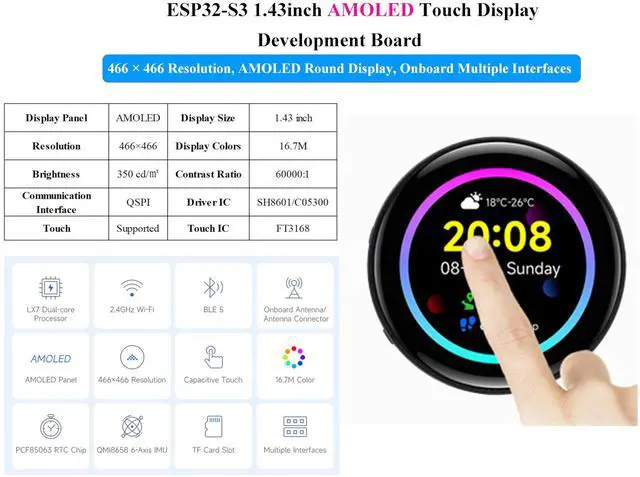

Onboard 1.43inch AMOLED display, QSPI interface, 466 x 466 resolution. 178deg wide viewing angle,Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, countin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 1.43 inch AMOLED Touch Display Development Board, 466x466 QSPI Interface AMOLED Round LCD, Onboard Accelerometer and Gyroscope Sensor RTC Chip, ESP32 with Display, with CNC Metal Case
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
April 30, 2025
There are no reviews yet.
