Upgraded Complete Enclosure for Raspberry Pi Cluster, Compatible with Pi 5, 4B, 3B+/3B, and Other B Models, House Up to 4×2.5" SSD, Support PoE/PoE+ HAT and Switch, 2 Cooling Fans

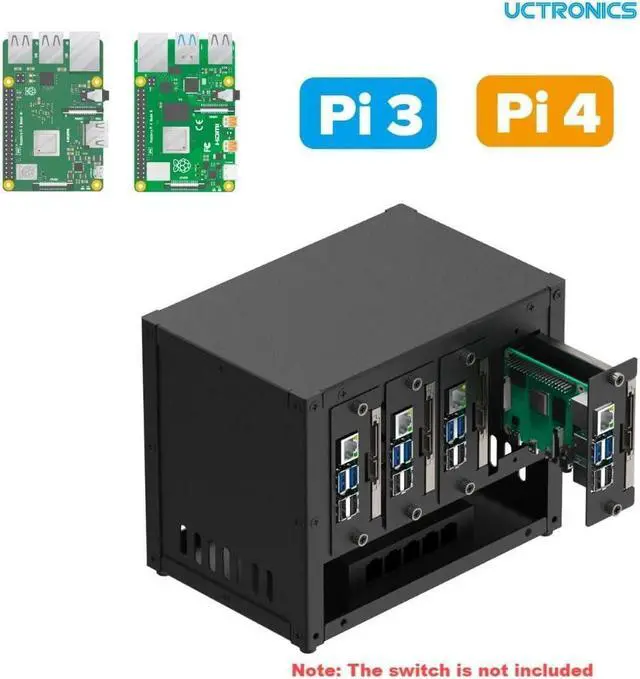

Front Removable Each baseplate is independent so as to easily slide in-and-out, just fixed with captive loose-off screws, allowing you very convenient and quick access to each node within the cluster for maintenance.
Front Removable Each baseplate is independent so as to easily slide in-and-out, just fixed with captive loose-off screws, allowing you very convenient and quick access to each node within the cluster for maintenance.
ApplicationsThis is the perfect solution for building Pi Array, Pi NAS, Pi LAN lab or other projects need to organize your Raspberry Pis in a manageable way.
Product Description

UCTRONICS Raspberry Pi Cluster Complete Enclosure V 3.0 is upgraded from the previous version of enclosure U6243.

It's designed to provide a desktop hardware solution for the RPi array. The fully complete case with compact design reserved enough space for 4 RPis, 4 2.5 SSDs, and an Ethernet switch, as well as 2 cooling fans.

Each RPi mounting bracket is independent and can be removed just by unscrewing the two captive loose-off screws.

The large opening at the back panel allows you to use more models of switches.

It's your perfect solution to build a home media server, Pi NAS or media center, learn distributed computing and deployment, and private servers for numerous games.

Note

: This rack doesn't come with SATA cable for SSD, If you need it, please turn to

B0C5D2CDS9

Support Powered by Raspberry Pi official PoE+ hat or UCTRONICS Mini PoE HAT.

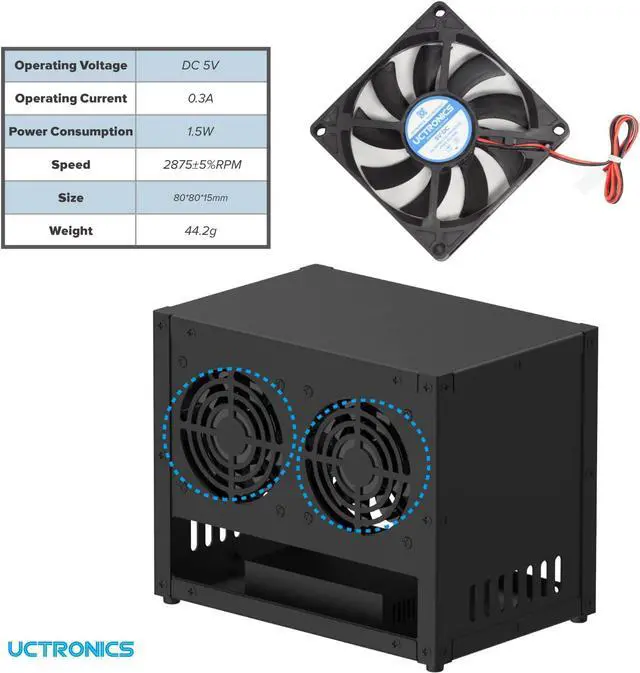

We have added a fan adapter board in this version. You can power the fan at the same time. The quiet and stable 8cm fan provides a stable temperature environment for your Raspberry Pi and prevents the Raspberry Pi CPU damage caused by overheating.

Please note:

Fan adapter is now only available with a USB-C connector. There are two versions of the paper manual with different fan adapters image because of the late update, but the fan adapter in the package only has one USB-C connector.

Q: What is the Fan Adapter for and how is it used

A: There are two ways to power your pi. 1. by the USB C port; 2 by a PoE hat.

If you power your Pi with the USB C port, you can use GPIO power pins (+5V & Gnd) on the Raspberry Pi to power the fans. In this way, the fan adapter is unnecessary.

If you use a PoE hat to power your pi, the PoE hat will occupy the GPIO ports on the pi, then the fan has no way to be put on. In this way, the fan adapter works to solve the problem. Just plug the fan into the fan adapter's GPIO power pins. With a PoE hat added on, the PoE hat will power your pi, and you also can use the fans at the same time with the fan adapter.

Please note that additional M 2.5 *6+3 female-male standoffs or M 2.5 *14/16mm screws are required when you consider installing a PoE hat.

Note

The fan is not a PWM fan and does not support speed and temperature control.

Package content

Mounting panel ×6

Foot pad×4

8cm Cooling fan×2

M5*10 screw for fans×8

Fan adapter ×1

Raspberry pi mounting bracket with captive loose-off screws×4

Framework×4

M 2.5 *5 for Raspberry pi×16

M3*5 screw for SSD×16

M3*5 screw for frameworks×32
