$229.35
Meet Your Seller

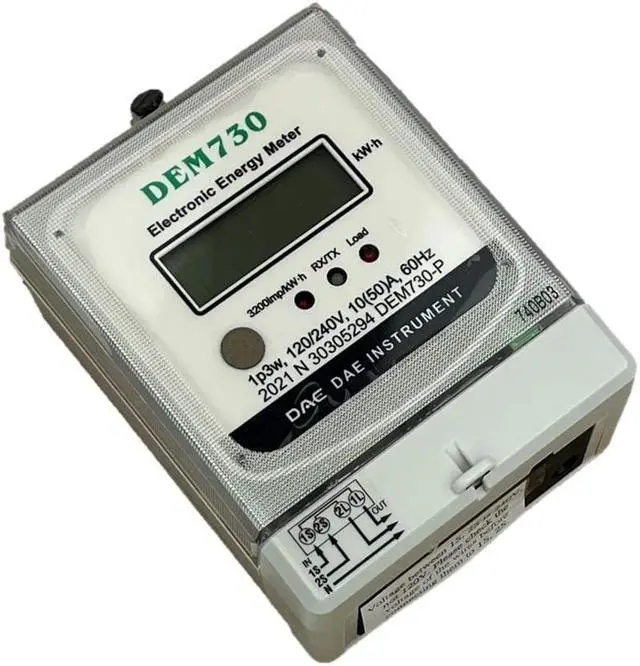

DEM730P Electric kWh Submeter, RS485, 1P3W (2 Hot wire, 1 Neutral), 120/240V, 50A, Internal CT

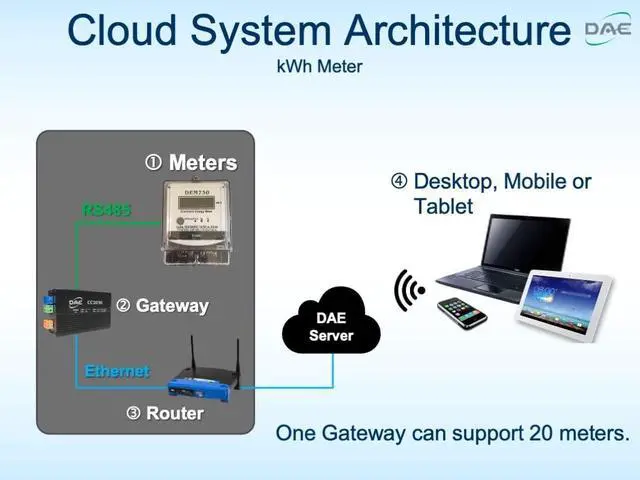

- DAE Cloud Metering (2nd picture) available with DAE CC2030 KIT Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per picture 5 or video & ready to go.

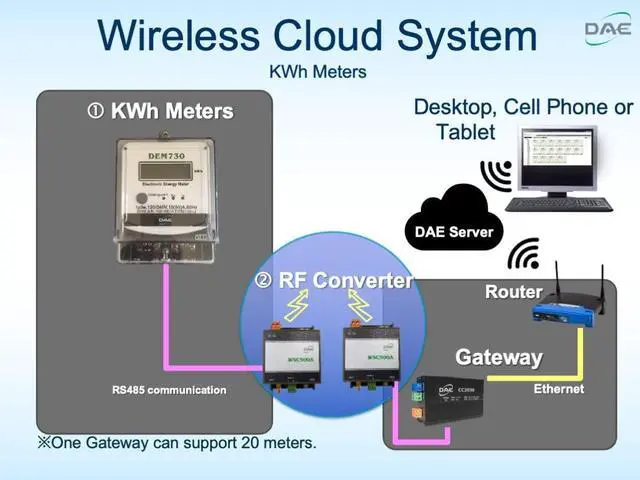

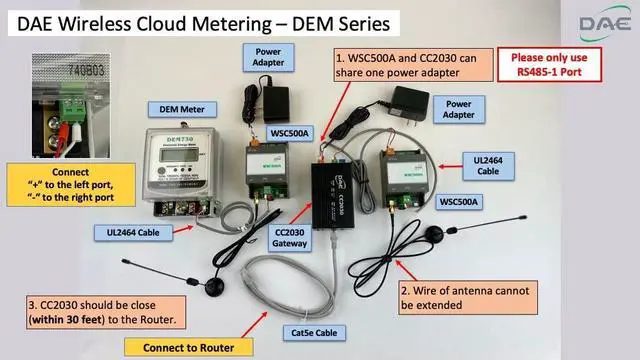

- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500 RF Converters to connect electric meter and CC2030 wirelessly. (3rd Picture) Just connect wires as per picture 6 or video & ready to go.
- Conforms to International Standard IEC61036. For UL/cUL listed and California CTEP approved electric meters, please refer to DAE Polaris 1500 series like DAE P153-200-S KIT
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use.
Product Description

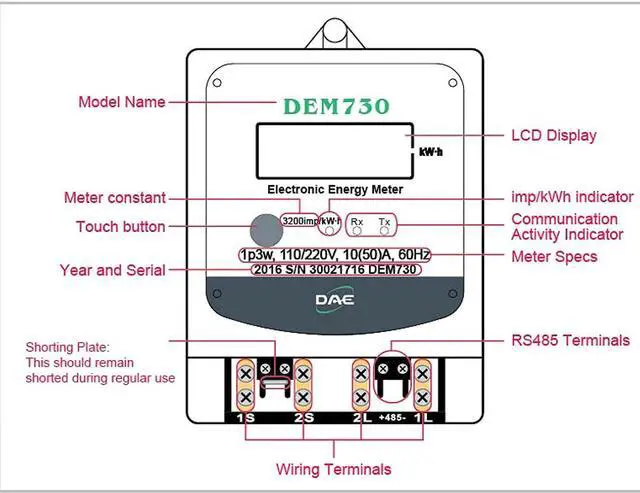

DAE DEM730P Electric kWh Submeter

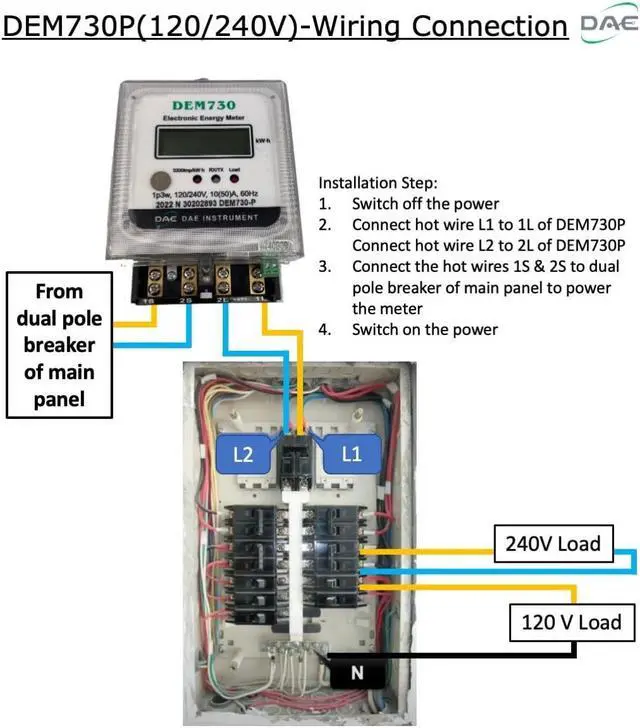

For installation, please proceed with the following steps.
Cloud Metering Solutions
Cloud Metering Installation Guide for DEM Series
DAE B1725 Plastic watertight NEMA 4 IP66 Universal Electrical Enclosure with Mounting Plate
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use
Western Dovetail, Inc, Vallejo, CA
Cloud Metering with 2 P153-200-S KIT + 2 MJ-100 + 2 AMR130AN KIT + 1 CC2030 KIT
"Great system, excellent support, works like a charm right out of the box. JJ answered all my questions even on the weekend. Online software was all set up in advance. Highly recommend to anyone needing to set up metering for tenants. "
SKP Park of the Sierras, Coarsegold CA
254 P103-200-S KIT + 254 B1725
DAE was awarded a contract from Park Sierra (a RV Park located at Coarsegold, CA) on May 13th, 2016. In addition to the California CTEP approval at state level, all the 254 units of DAE P103-200-S KIT smart electrical meters have to be inspected in Madera County prior to sending to Park Sierra. The Division of Weights & Measures - Madera County bought a test equipment for inspecting the smart meters due to the project.
DAE P103-200 Electrical Digital Meters replaced GE traditional meters.
Scientific Cutting Tools, Inc, CA
Cloud Metering with 1 P254-400 KIT + 1 CC2030 KIT
DAE CC2030 Gateway will collect the kWh data and send them to the cloud through Ethernet. With cell phone, PC, you will be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants.
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use.
Product Description
DAE DEM730P Electric kWh Submeter
For installation, please proceed with the following steps.
Cloud Metering Solutions
Cloud Metering Installation Guide for DEM Series
DAE B1725 Plastic watertight NEMA 4 IP66 Universal Electrical Enclosure with Mounting Plate
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use
Western Dovetail, Inc, Vallejo, CA
Cloud Metering with 2 P153-200-S KIT + 2 MJ-100 + 2 AMR130AN KIT + 1 CC2030 KIT
"Great system, excellent support, works like a charm right out of the box. JJ answered all my questions even on the weekend. Online software was all set up in advance. Highly recommend to anyone needing to set up metering for tenants. "
SKP Park of the Sierras, Coarsegold CA
254 P103-200-S KIT + 254 B1725
DAE was awarded a contract from Park Sierra (a RV Park located at Coarsegold, CA) on May 13th, 2016. In addition to the California CTEP approval at state level, all the 254 units of DAE P103-200-S KIT smart electrical meters have to be inspected in Madera County prior to sending to Park Sierra. The Division of Weights & Measures - Madera County bought a test equipment for inspecting the smart meters due to the project.
DAE P103-200 Electrical Digital Meters replaced GE traditional meters.
Scientific Cutting Tools, Inc, CA
Cloud Metering with 1 P254-400 KIT + 1 CC2030 KIT
DAE CC2030 Gateway will collect the kWh data and send them to the cloud through Ethernet. With cell phone, PC, you will be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants.
