KFI-40 Optical Fiber Identifier Optic Dominant Traffic Detector Multi in one Chucks with 800-1700nm Cable Tester (KFI-40)

Approximate core power reading; Battery low indication
Low false detection & inser-tion loss
Product Description

Products Introduction

Upgraded high accuracy fiber identifier KFI-40 integrates VFL and LED lighting function, It is one of the necessary tools for fiber maintenance. Fiber identifier can detect any position of the single mode and multi mode fiber.

With the fiber identifier to identify the fiber on the line, you can identify the fiber power and 3 kinds of signal frequencies, and there will be a buzzer sound when identifying the frequency. Display the signal direction via left and right direction light and to make prompt judgment. VFL adopt 2.5 mm universal connector and output power is up to 1mW, It can detect fiber break or bending problems within 5km, and it supports pulse and continuous wavelength operation. And it equipped with LED light, convenient for you to work in the dark.

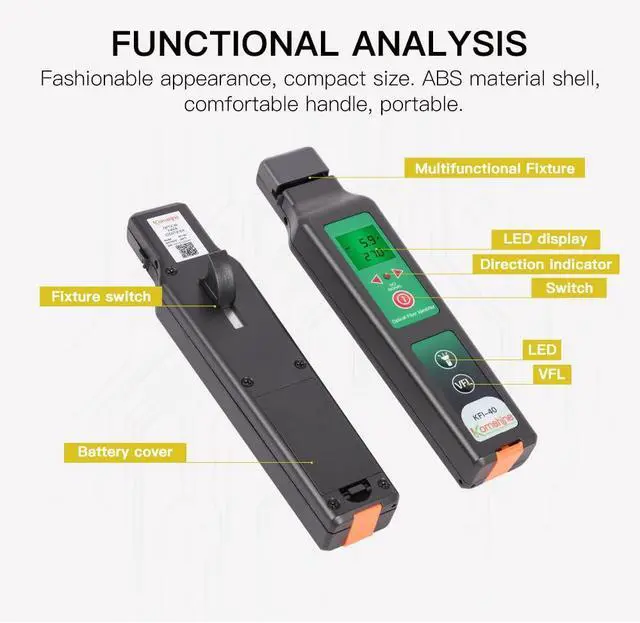

Products characters and functions

Universal back clip design, suitable for 0.25 / 0.9 / 2.0 / 3.0 fiber

LED backlit display, suitable for various environment and no auxiliary lighting required

Testing sensitivity -40dBm to 10 dBm

Strong and stable light source, strong penetrating power

Be equipped with LED light, more convenient to work in the dark

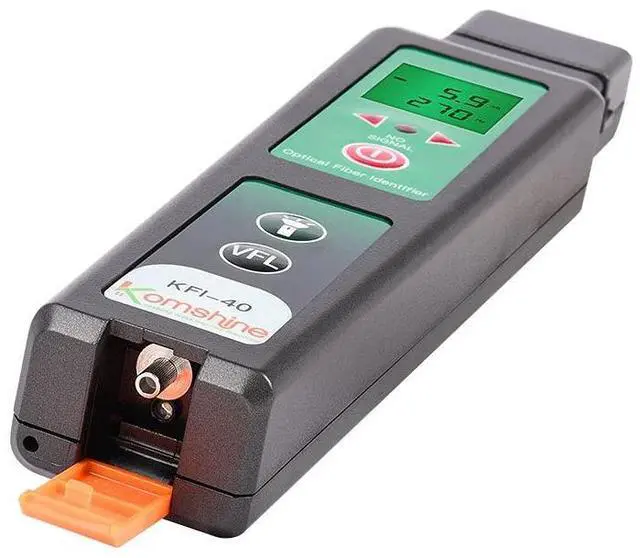

Built-in VFL, 2.5 mm universal connectorsstrong stabilitytesting distance is up to 5KM

PRODUCT SPECIFICATION
