    wsdcam TVI to HDMI Converter Full HD 4K Converter, 1080p/720p/4K/8MP/5MP/4MP/3MP, BNC to HDMI Video Converter Adapter - CVBS/TVI/CVI/AHD to HDMI

    Be the first to review this product...
    • TVI to HDMI video converter that is used to display live 1080p high definition video from TVI security cameras on a HDMI TV monitor for public view monitors or connect to DVR. In addition to TVI cameras, the converter also works with CVBS, AHD, CVI cameras
    • Works with all HD-TVI/AHD video resolutions: 720p, 1080p, 3 MP, 4 MP, 5 MP, and 8 MP(4K). Works with CVI video resolutions: 720p, 1080p, 4 MP, and 8 MP(4K). And there are LEDs that specify what resolution has been detected by the video input

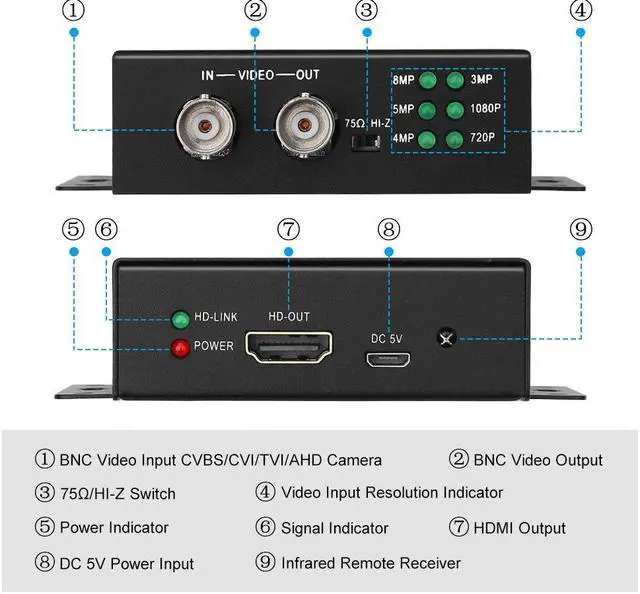

    • The HDMI video output is 1080p resolution. There is 4K BNC Video Loop Out which allows you to send the native HD video signal (TVI, CVI, AHD, CVBS) to another device, such as a surveillance DVR, second converter, or camera tester. There is a 75O/ HI-Z switch. If you are using the BNC loop output, this switch should be set to HI-Z (If HDMI output, set it to 75O)

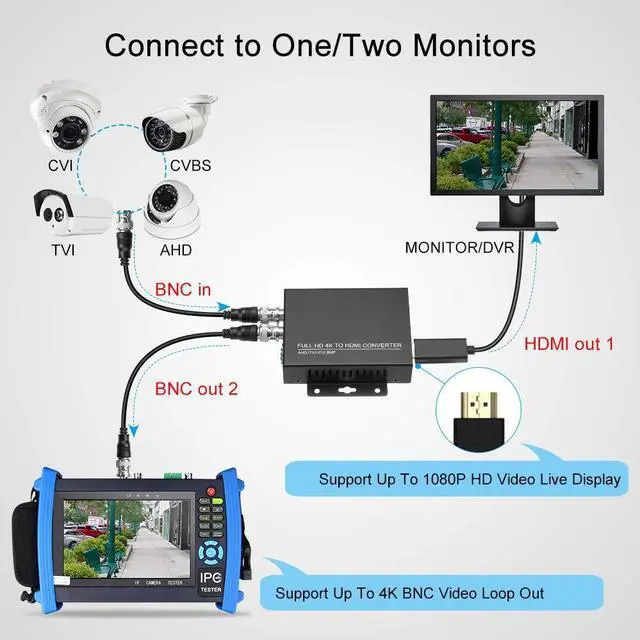

    • Multiple TVI to HDMI converters can be used as a video splitter to connect one analog camera to multiple HDMI monitors
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    HD-TVI to HDMI Converter is typically used to connect a TVI security camera to an HDMI monitor to display a live high definition video feedProduct
    Parameters: *Supported HD-TVI Camera Resolutions &
    Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536) @ 18/25/30 FPS 4 MP 2688 x 1520p @ 15 FP 4 MP 2560 x 1440p @ 12/25/30 FPS 5 MP 2592 x 1944p @ 12.5 /20 FPS 4K (8 MP) 3840 x 2160 @ 15 FPS *Supported CVI 4MP, AHD 5MP Camera *Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display *TVI+CVBS to HDM, HDMI output *HDMI
    Output Resolution: 1080p 60Hz, HD-LINK light *Support transmission distance up to 300m over coaxial cable *5V 1A Power Supply, power indicator light *Operating
    Temperature: -10degC~60degC
    / -14degF~140degF *Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch
    Note: *There is a 75O/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75O setting. *Using the loop output is optional. Some customers only want to view their camera live on a TV and don't require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
