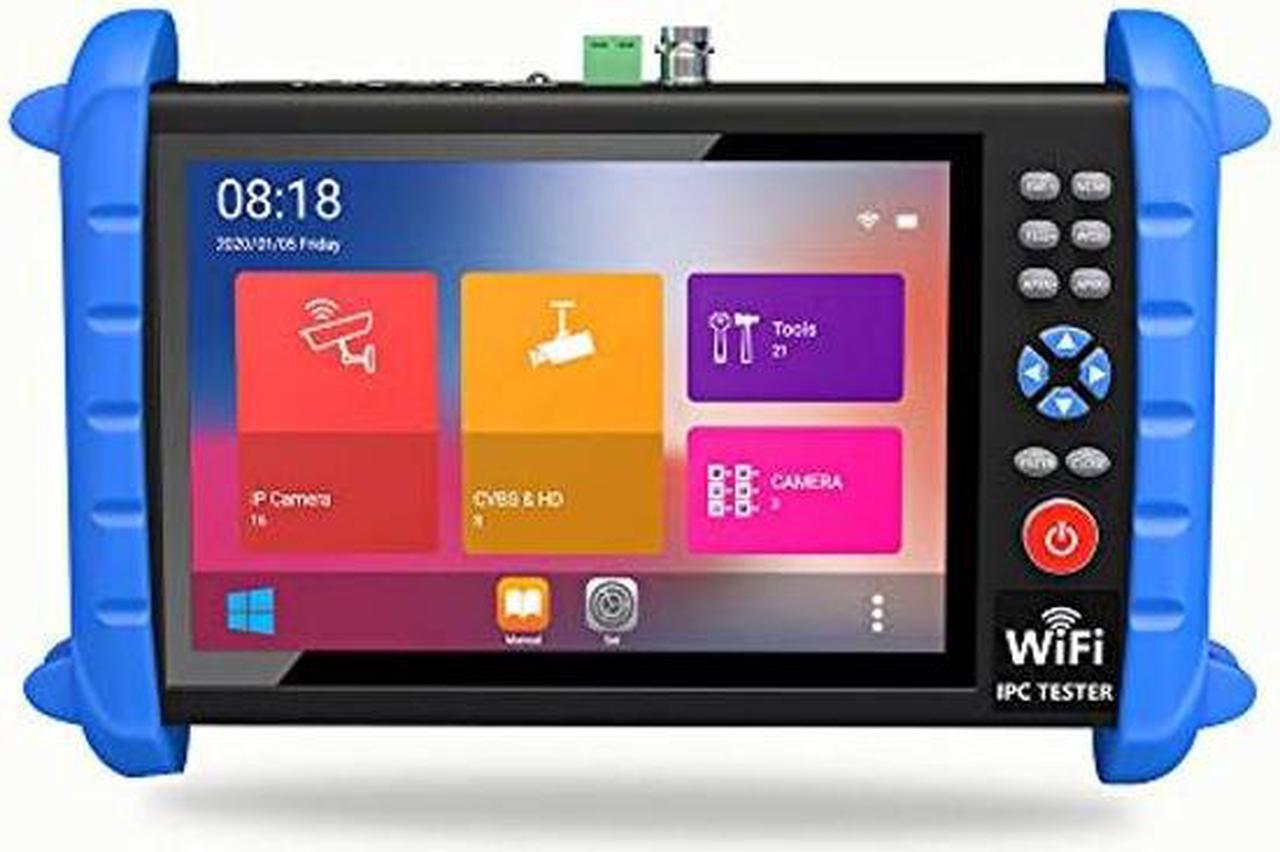

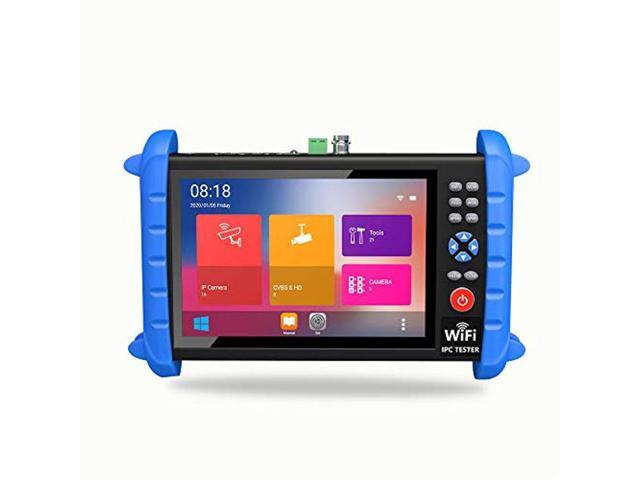

7 Inch IP Camera Tester Security CCTV Tester Monitor-Support 6K IP/Coax/Analog Camera-with HDMI in&Out/Power Output/PTZ Control/IP Searching/Network Tool
- 7 inch 1920*1200 HD resolution IPS touch screen, with rechargeable 7000mA / 7.4V lithium battery
- It outputs DC 5V/12V/24V and PoE 48V for camera power supply
- Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters
- With HDMI input and output, 1080P.
- Support max 6K IP camera and TVI/CVI/AHD 8MP camera testing
+
+
Overview
Specs
Reviews
IPCX-ACTHA
1. Support HD camera
Testing: TVI 8MP (3840*2156 15P), CVI 8MP (3840*2156 15P), AHD 8MP (3840*2156 15P).
2. Support IP camera max up to 6K and Analog camera.
3. Support PoE 48V, DC5V 2A, DC12V 3A, DC24 1A output.
4. Compatible with Onvif standard protocol, compatible to most cameras in the market.
5.
Screen resolution: HD IPS 1920 x 1200, instant image transmission.

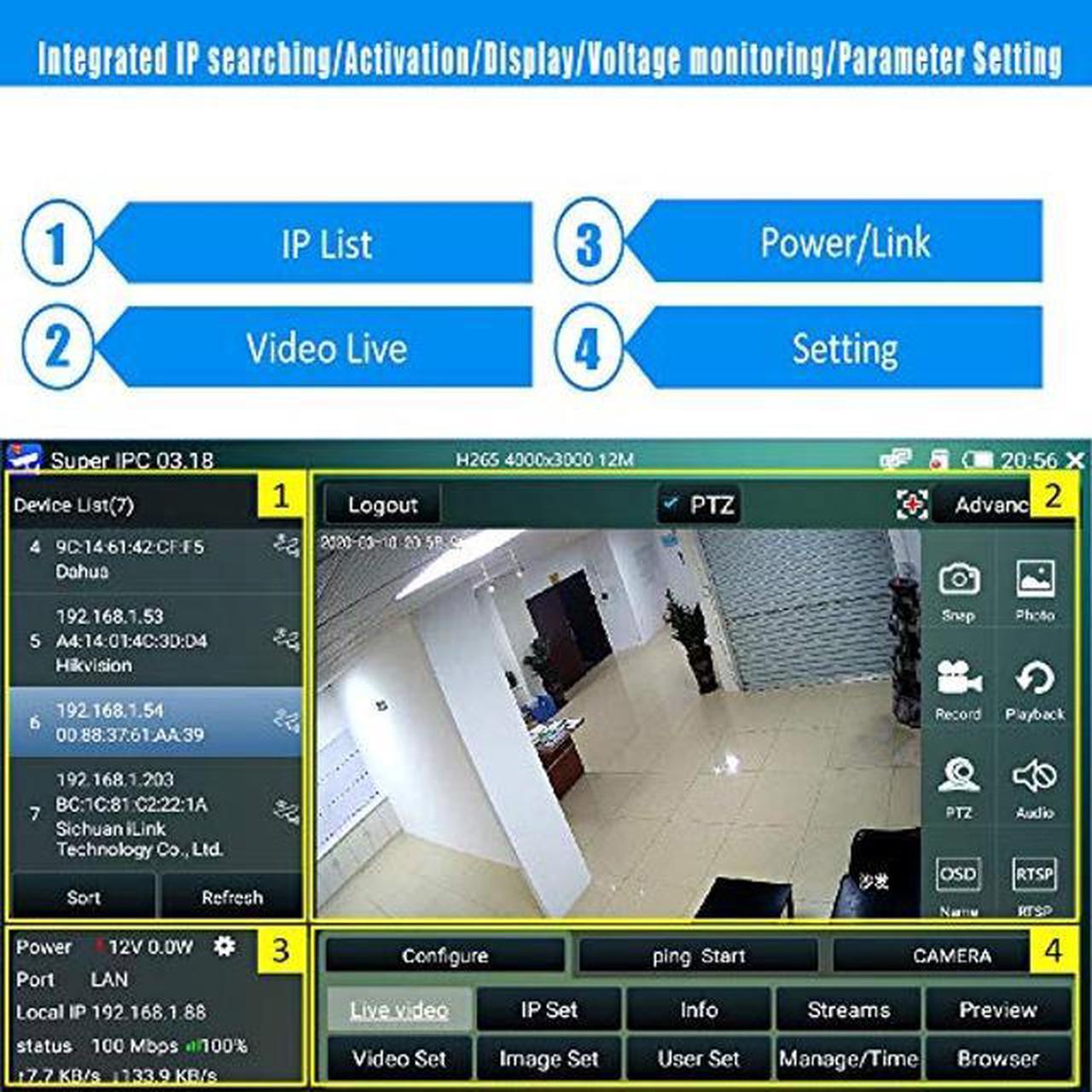

6. IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester's IP address.
7. Open source, can install Android software.
8.4K H265, H264, MPEG4 network camera main stream test.
9. HDMI input and output, 1080P.
10. With Built-in manual book and Browser.
11. Support wireless WIFI(10M/100M/1000M) and hotpots, easily connect and test wireless WIFI camera.
12.
RS485 Port: Receive, send and analyze data, used for PTZ protocol analysis, etc.
13.
Network tools: to scan all the IP address in the network, and test current network condition and PING value.
14. It can update software on line on store.

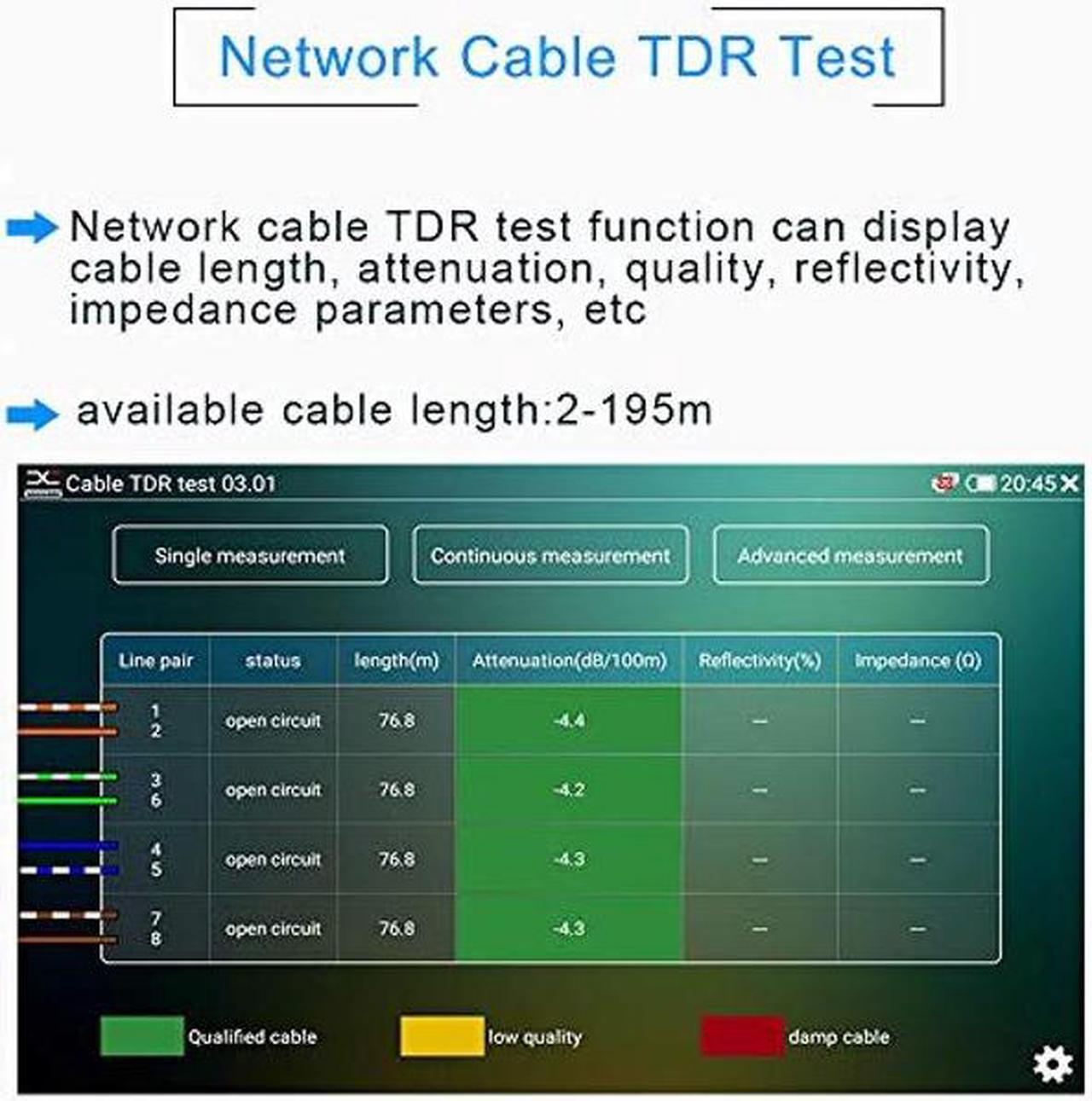

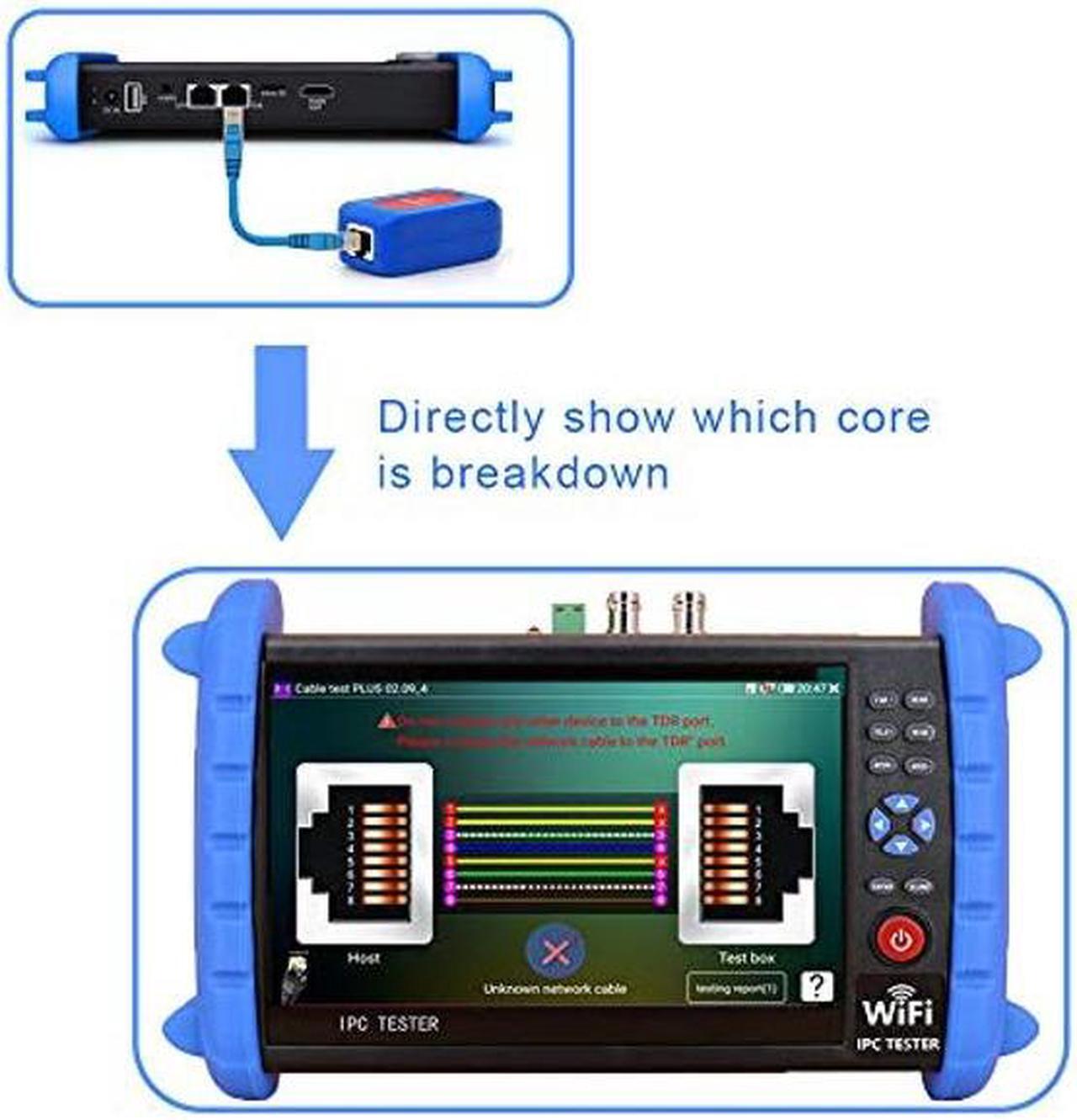

15. Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters.
16. Rechargeable 7000mA / 7.4V polymer lithium battery.
Working hour: 6~10 hours.
If you have any operation issue, please don't hesitate to contact with us.
1. Support HD camera
Testing: TVI 8MP (3840*2156 15P), CVI 8MP (3840*2156 15P), AHD 8MP (3840*2156 15P).
2. Support IP camera max up to 6K and Analog camera.
3. Support PoE 48V, DC5V 2A, DC12V 3A, DC24 1A output.
4. Compatible with Onvif standard protocol, compatible to most cameras in the market.
5.
Screen resolution: HD IPS 1920 x 1200, instant image transmission.
6. IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester's IP address.
7. Open source, can install Android software.
8.4K H265, H264, MPEG4 network camera main stream test.
9. HDMI input and output, 1080P.
10. With Built-in manual book and Browser.
11. Support wireless WIFI(10M/100M/1000M) and hotpots, easily connect and test wireless WIFI camera.
12.
RS485 Port: Receive, send and analyze data, used for PTZ protocol analysis, etc.
13.
Network tools: to scan all the IP address in the network, and test current network condition and PING value.
14. It can update software on line on store.
15. Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters.
16. Rechargeable 7000mA / 7.4V polymer lithium battery.
Working hour: 6~10 hours.
If you have any operation issue, please don't hesitate to contact with us.
