10G SFP+BIDI Transceiver a Pair for Cisco Meraki SFP-10G-BX20U-I Ubiquiti UF-SM-10G-S-1270 MikroTik S+2332LC10D-1270 D-Link Netgear 10GBASE-BIDI SFP+1270nm /1330nm 20km DOM Other Open Switches
- 10G SFP+ bidi :TX1270nm/RX1330nm and TX1330nm/RX1270nm Use in pairs with Simplex LC Fiber Connector, 10Gbps,20km, 0°C~+70°C, with DDM
- Wide Compatibility - for Cisco, Ubiquiti, Netgear, D-Link, TP-Link, Linksys, Broadcom, Edge-core, EMC, F5, Meraki, Mikrotik, Norkia, QTC, Supermicro, and Other Open Switches.
- 10GBase-BIDI SFP+ Transceivers modules supporting data rate of 10Gbps and 20km The transceivers are compatible with SFP+ Multi-Source Agreement and SFF-8472 digital diagnostics functions.
- Easy to Use - Easy installation, plug and play, fully hot-pluggable. Widely used in fiber switches routers NIC server or other fiber optic equipments with 10Gb SFP+ ports.
- 3 Warranty - Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance Fibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fiber Mall Cisco SFP-10G-BXU-I and Cisco SFP-10G-BXD-I Compatible 10G BX SFP+ BIDI Transceiver Modules (1270nm/1330nm SMF 20km LC DDM) should be used together.
Product Features
v Cisco Genuine: SFP-10G-BX20U-I SFP-10G-BX20D-I
v Form Type: 10G BIDI SFP+
v Supports up to 10.7G bps bit rates
v Hot-pluggable SFP+ footprint
v 1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
v Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
v Single + 3.3V power supply
v Real Time Digital Diagnostic Monitoring
v Standard: 0 to +70°C
v Industrial: -40 to +85°C
Introduction
BiDi optical module uses WDM (Wavelength Division Multiplexing) to achieve transmission of optical signal in both directions on one fiber. Different from common optical modules that have one transmit port (TX) and one receive port (RX), this module has only one port to send and receive signals at different wavelengths after its filter finishes wave filtering.
Applications
v 10Gbps Optical systems
v 10GBASE-LR at 10.3125G bps
v 10GBASE-LW at 9.953G bps
Cisco SFP-10G-BXU-I and Cisco SFP-10G-BXD-Iis supported on a wide range of Cisco equipment.
Cisco Nexus 7000 N7K-M224XP-23L
Cisco ASR 9000 A9K-MPA-8X10GE
Cisco ASR 9000 A9K-RSP440-SE
Cisco WS-C3650-48PD
Package

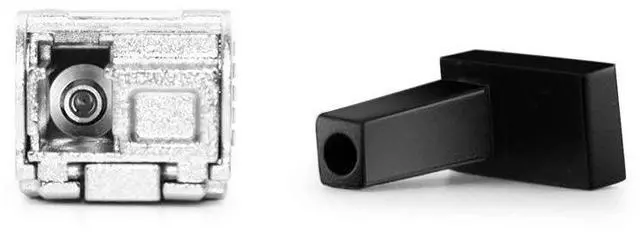

1*sfp dust cover

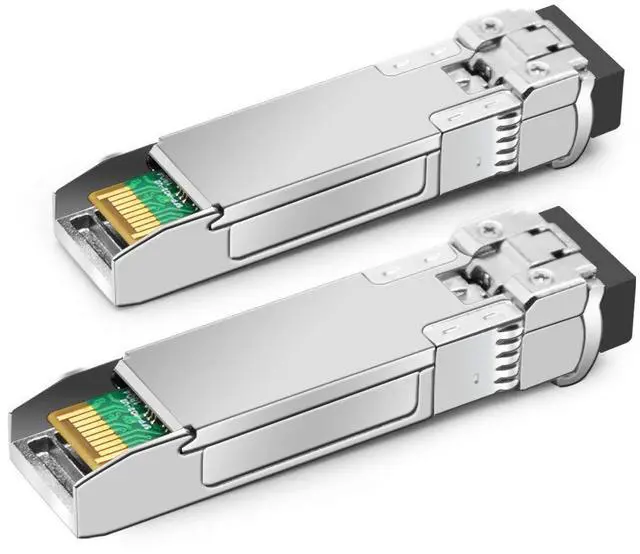

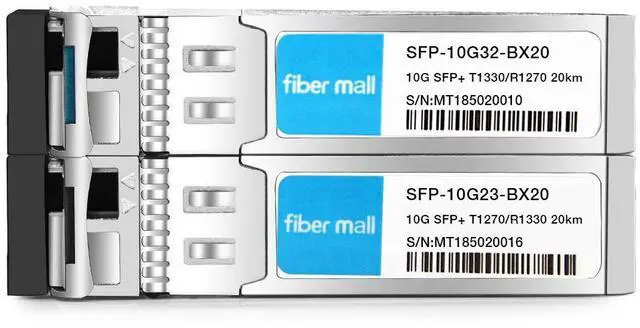

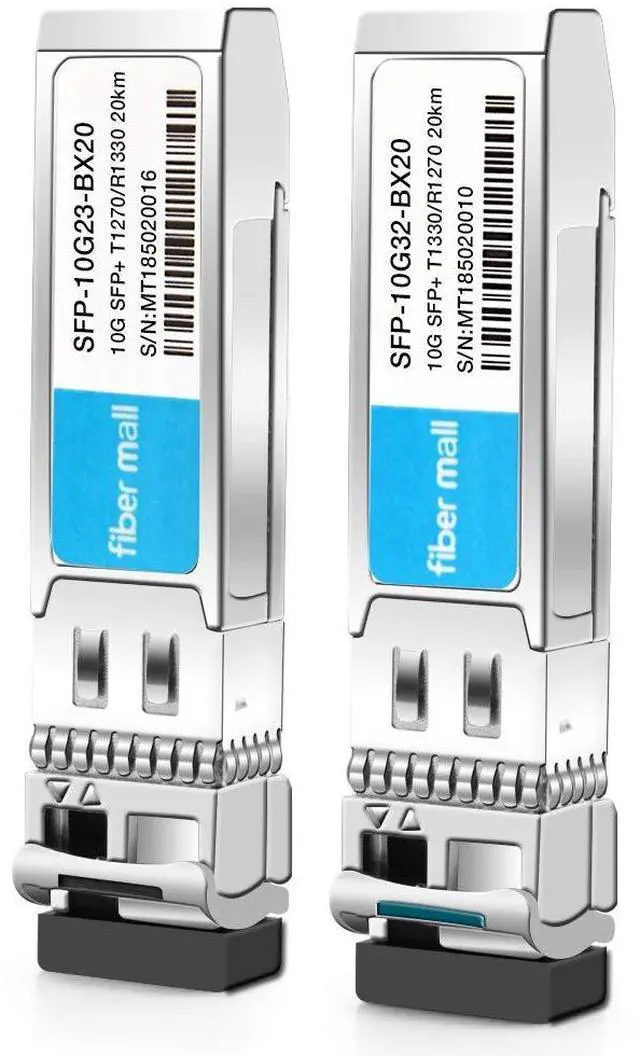

1 *pair 10Gbps BIDI fiber transceiver module
1* package box
Product Features
v Cisco Genuine: SFP-10G-BX20U-I SFP-10G-BX20D-I
v Form Type: 10G BIDI SFP+
v Supports up to 10.7G bps bit rates
v Hot-pluggable SFP+ footprint
v 1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
v Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
v Single + 3.3V power supply
v Real Time Digital Diagnostic Monitoring
v Standard: 0 to +70°C
v Industrial: -40 to +85°C
Introduction
BiDi optical module uses WDM (Wavelength Division Multiplexing) to achieve transmission of optical signal in both directions on one fiber. Different from common optical modules that have one transmit port (TX) and one receive port (RX), this module has only one port to send and receive signals at different wavelengths after its filter finishes wave filtering.
Applications
v 10Gbps Optical systems
v 10GBASE-LR at 10.3125G bps
v 10GBASE-LW at 9.953G bps
Cisco SFP-10G-BXU-I and Cisco SFP-10G-BXD-Iis supported on a wide range of Cisco equipment.
Cisco Nexus 7000 N7K-M224XP-23L
Cisco ASR 9000 A9K-MPA-8X10GE
Cisco ASR 9000 A9K-RSP440-SE
Cisco WS-C3650-48PD
Package
1*sfp dust cover
1 *pair 10Gbps BIDI fiber transceiver module
1* package box
