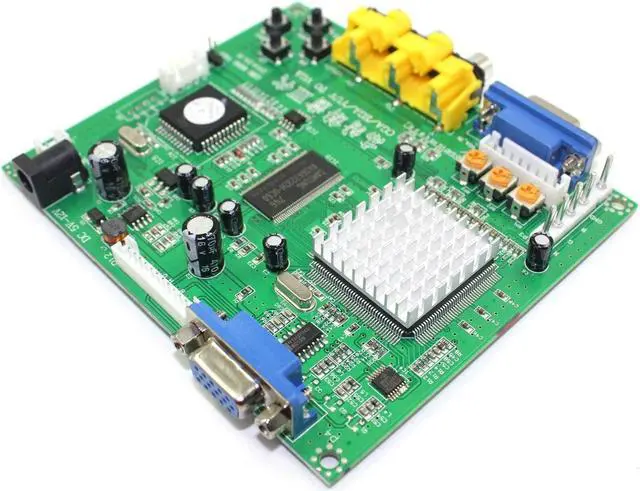

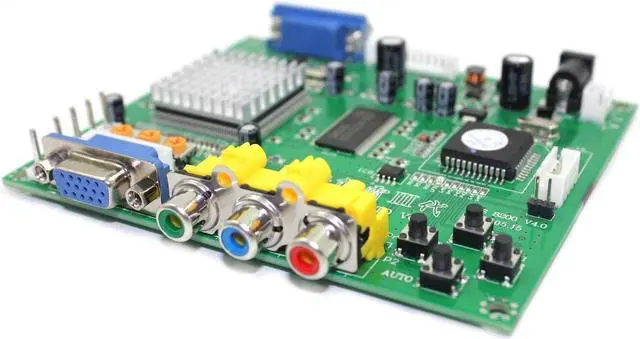

JahyShow Video Converter GBS8200 1 Channel Relay Module Board CGA/EGA/YUV/RGB to VGA HD Arcade Jamma Game Video Converter Board 1 VGA Output CRT PDP LCD Monitor GBS-8200
- Supports cga/ega/vga/yuv component signal input. supports vga output (640 x 480,800 x 600,1024 x 768,1360 x 768)
- Supports image position control & image zoom control.on screen display (english and chinese). the high definition gbs-8200 video converter is a professional game converter, which support all games such as, amusement, play station, for xbox, wii, etc
- It can convert cga/ega/vga/yuv component input signal to the hd monitors (crt monitor lcd monitor pdp monitor) with vga interface (vga video signal), and automatically scan cga / ega / yuv signal, vga output signals

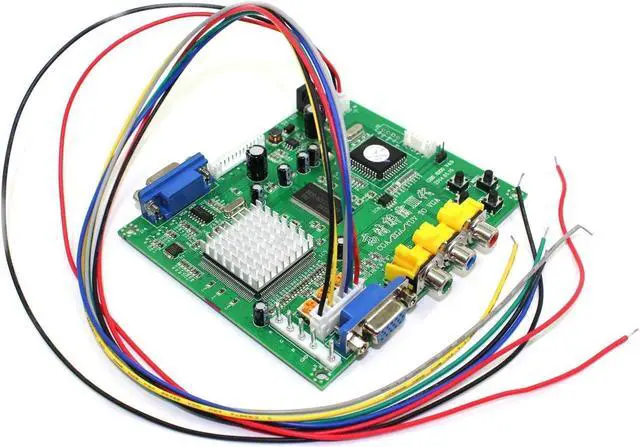

- Package list 1 * cga/ega/rgb to vga game video converter board 1 * 6pin signal wire 1 * 2pin power supply wire
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Convert CGA/EGA/VGA/YUV Component input Signal to VGA video
signal
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).

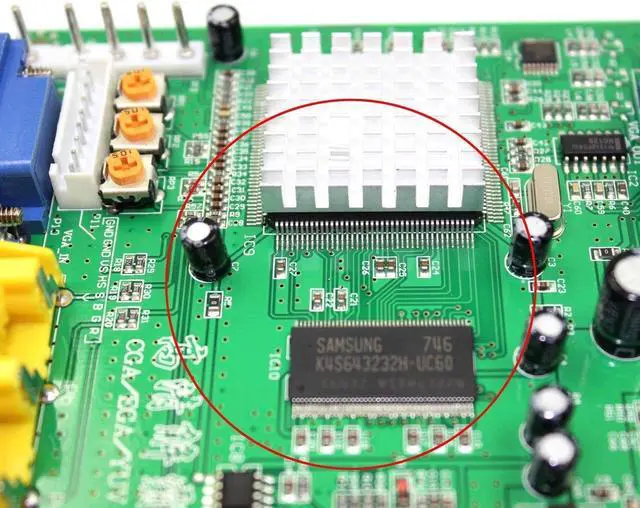

True digital 24-bit A/D converter for true 16.7 -million color conversion.
Input Power: DC 5V ± 0.5V (2A) P7 or P9
Input signal:
CGA / EGA: 14.5 kHz ~ 16.5 kHz / 23.5 ~ 25.5 kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
User controls
Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green
Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55 in
Package Weight: 87g / 3.06 oz
Package size: 15.5 * 12.5 * 3.0 cm / 6.10 * 4.92 * 1.18 in
Package weight: 116g / 4.09 oz
Menu Control
MENU open OSD menu, and enter.
UP up and increase.
DOWN/AUTO down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu)
SW switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu).
Clamp sp & Clamp please dont adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package list
1 * CGA/EGA/RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
Convert CGA/EGA/VGA/YUV Component input Signal to VGA video
signal
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).
True digital 24-bit A/D converter for true 16.7 -million color conversion.
Specifications
Input Power: DC 5V ± 0.5V (2A) P7 or P9
Input signal:
CGA / EGA: 14.5 kHz ~ 16.5 kHz / 23.5 ~ 25.5 kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
User controls
Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green
Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55 in
Package Weight: 87g / 3.06 oz
Package size: 15.5 * 12.5 * 3.0 cm / 6.10 * 4.92 * 1.18 in
Package weight: 116g / 4.09 oz
Menu Control
MENU open OSD menu, and enter.
UP up and increase.
DOWN/AUTO down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu)
SW switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu).
Clamp sp & Clamp please dont adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package list
1 * CGA/EGA/RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
