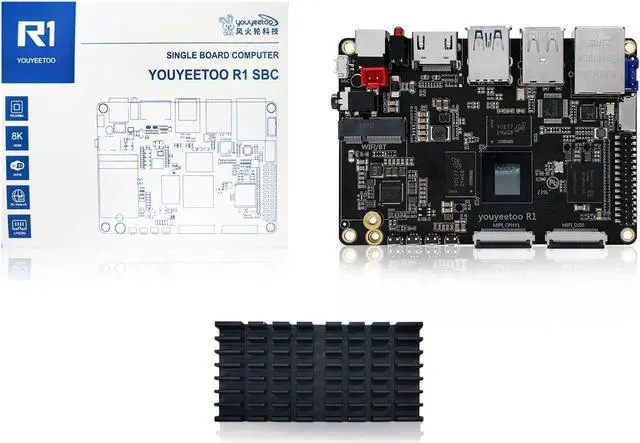

WayPonDEV youyeetoo R1 Rockchip RK3588S 8-Core 64bit Single Board Computer,Support 8K Dispaly, PCIe 2.0 SSD,NFC,WIFI5/6, Android/Linux AI Devkit for AIOT (4GB RAM+32GB eMMC)
- [Optional RAM Configuration ] WayPonDEV youyeetoo R1 is a compact arm-based SBC,which support LPDDR4 RAM from 4GB,8GB and 16GB up to 32GB, and optional eMMC flash with 32GB/64/GB/128GB/256GB capacity(please check the variant option from different Asin's title).
- [AIoT Chip-Rockchip RK3588S] Youyeetoo R1 open-source singe board computer is powered by the Rockchip RK3588S octa-core 64-bit processor from Rockchip, built on an 8nm process, with frequency up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU and features a built-in NPU with 6 TOPS of AI computing power.
- [Compact Size but Feature-rich Interfaces] Youyeetoo R1 RK3588S SBC has only 3.93 inch x 2.73 inches (100*69.3mm)in size, but various interfaces including M.2 PCIe2.0, dual MIPI CSI cameras, Multi-screen, USB2.0 x3, USB3.0 x1, TTL UART serial port x3,debug UART x1, I2C x2, GPIO x7, SPI x1, ADC x2, CAN x1 and other common interfaces for the AIOT(Internet of Things).
- [Support Multiple OS & Wide Range of Applic
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
CPU: Rockchip RK3588S (8nm LP process) 8-core 64-bit4xCortex-A76 and 4xCortex-A55Up to 2.4GH z frequency
GPU: ARM
Mali-G610 MP4 Odin GPU: Compatible with OpenGL ES 1.1 / 2.0 / 3.1 / 3.2; OpenCL 1.1, 1.2, 2.0; Vulkan 1.11. 2 450 GFLOPS; 3D and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
Storage:
eMMC: 32G/64G/128G/256GB (option); M. 2 slot (BOTTOM) M-Key @NVMe
SSD (PCIe) 2242ps: The speed is PCIe 2.0 ); @SATA 3.0 SSD m. 2 2242; MicroSD (TF) Card Slot
Network: EthernetRJ45 10/100/1000Mbps Ethernet
Wireless: M. 2(E-Key) Socket Expansion Slot
1. Wi-Fi5+BT 5.0 module (RTL8822CE) default driver
2. WI-FI6+BT 5.2 dual-band WiFi+BT module
4G LTE M. 2(M-Key)Socket Expansion Slot
(default driver for EC20/EC25 4G LTE Data)
(Need a 4G adapter board)

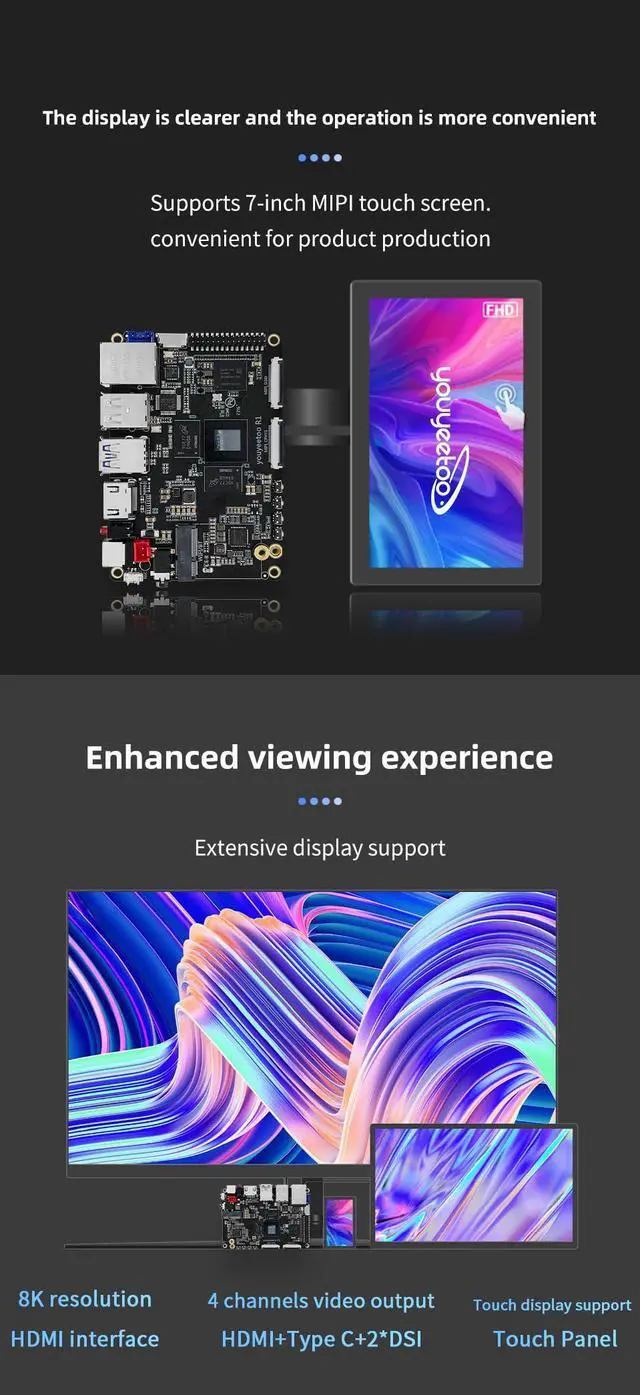

Display: 1 x HDMI 2.1 (8K@60Hz or 4K@120Hz); MIPI FPC2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen);
DP: 1 x Type C for DP 1.4 (8K@30Hz)
Camera: MIPI FPC slots 2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1)
USB: USB-A USB 2.0 * 2, USB 3.0 * 1;
USB-C: TypeC * 1; USB socketUSB 2.0 * 1
M. 2
Socket: M. 2-1 (BOTTOM) 2242 M-keyPCle Gen 2.0 lane 2, support NVME SSD/SATA SSD/4G LTE (need M. 2 to MiniPCIE adapter board)
M. 2-2 (TOP) 2230 E-keySupport moduleWIFI5+BT 5.0 / WIFI6+BT 5.2
30PIN Socket: I2C * 3 (I2C1I2C3I2C7); UART * 3 (UART5UART7UART9); CAN * 1; PWM * 1 (PWM7); ADC * 2 (ADC3ADC4); GPIO pin * 7 default 3.3V support 1.8V; VCC * 2 (VCC3v3VCC5v);
SPI(pin: 14, 16, 19, 21, 23) Reuses I2C7 and UART9
OS Support: Android 13/Debian 11/ Ubuntu 22.04 /Linux Buildroot

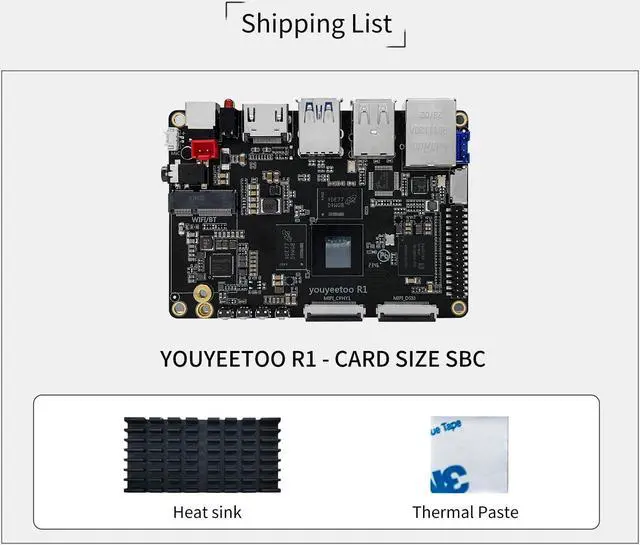

Packing list: Youyeetoo R1 SBC*1 Heat sink*1 Thermal Paste*1
CPU: Rockchip RK3588S (8nm LP process) 8-core 64-bit4xCortex-A76 and 4xCortex-A55Up to 2.4GH z frequency
GPU: ARM
Mali-G610 MP4 Odin GPU: Compatible with OpenGL ES 1.1 / 2.0 / 3.1 / 3.2; OpenCL 1.1, 1.2, 2.0; Vulkan 1.11. 2 450 GFLOPS; 3D and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
Storage:
eMMC: 32G/64G/128G/256GB (option); M. 2 slot (BOTTOM) M-Key @NVMe
SSD (PCIe) 2242ps: The speed is PCIe 2.0 ); @SATA 3.0 SSD m. 2 2242; MicroSD (TF) Card Slot
Network: EthernetRJ45 10/100/1000Mbps Ethernet
Wireless: M. 2(E-Key) Socket Expansion Slot
1. Wi-Fi5+BT 5.0 module (RTL8822CE) default driver
2. WI-FI6+BT 5.2 dual-band WiFi+BT module
4G LTE M. 2(M-Key)Socket Expansion Slot
(default driver for EC20/EC25 4G LTE Data)
(Need a 4G adapter board)
Display: 1 x HDMI 2.1 (8K@60Hz or 4K@120Hz); MIPI FPC2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen);
DP: 1 x Type C for DP 1.4 (8K@30Hz)
Camera: MIPI FPC slots 2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1)
USB: USB-A USB 2.0 * 2, USB 3.0 * 1;
USB-C: TypeC * 1; USB socketUSB 2.0 * 1
M. 2
Socket: M. 2-1 (BOTTOM) 2242 M-keyPCle Gen 2.0 lane 2, support NVME SSD/SATA SSD/4G LTE (need M. 2 to MiniPCIE adapter board)
M. 2-2 (TOP) 2230 E-keySupport moduleWIFI5+BT 5.0 / WIFI6+BT 5.2
30PIN Socket: I2C * 3 (I2C1I2C3I2C7); UART * 3 (UART5UART7UART9); CAN * 1; PWM * 1 (PWM7); ADC * 2 (ADC3ADC4); GPIO pin * 7 default 3.3V support 1.8V; VCC * 2 (VCC3v3VCC5v);
SPI(pin: 14, 16, 19, 21, 23) Reuses I2C7 and UART9
OS Support: Android 13/Debian 11/ Ubuntu 22.04 /Linux Buildroot
Packing list: Youyeetoo R1 SBC*1 Heat sink*1 Thermal Paste*1
