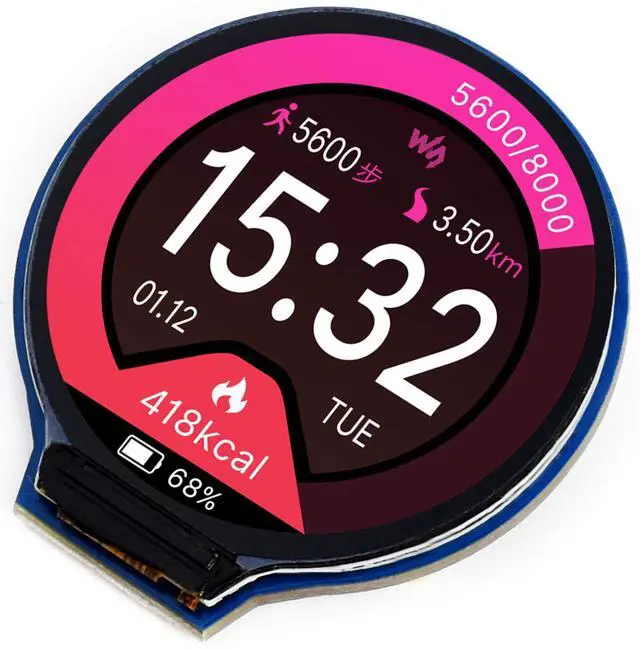

1.28inch Round LCD IPS Module 240x240 Resolution 65K RGB Colors SPI Interface for Arduino/Raspberry Pi/Jetson Nano/STM32

Features
240x240 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Ardu/STM32
Comes with development resources (examples for Raspberry Pi/Ardu/STM32)

Specifications

Operating voltage: 3.3V /5V
Interface: SPI
LCD type: IPS
Controller: GC9A01
Resolution: 240 (H) RGB x 240 (V)
Display size: 32.4 mm
Pixel size: 0.135H x 0.135V mm

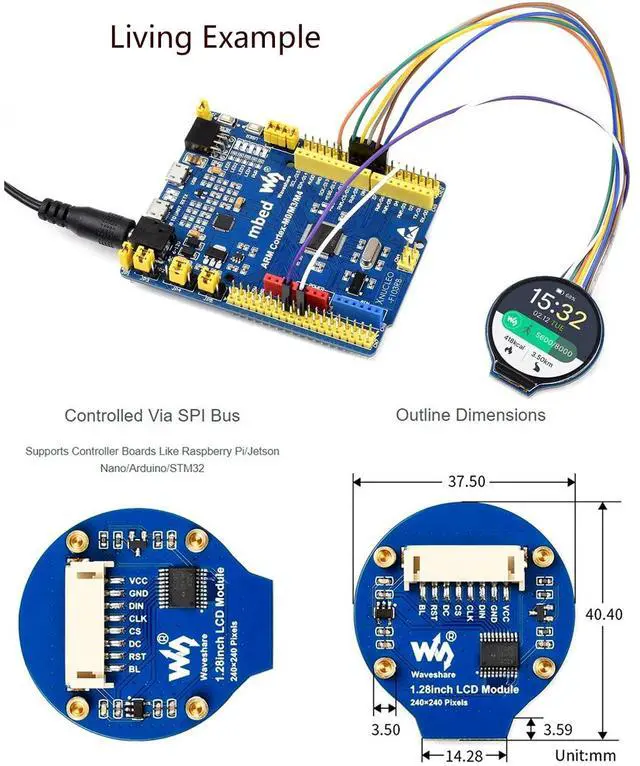

Dimension: 40.4 × 37.5 (mm) 37.5 (mm)
LCD and the controller
The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666.
For most LCD controllers, the communication method of the controller can be configured, they are usually using 8080 parallel interface, 3-line SPI, 4-line SPI, and other communication methods. This LCD uses a 4-line SPI interface for reducing GPIO and fast speed. LCD
If you are wondering which point is the first pixel of the screen (because the screen is round), you can understand it as a square screen with an inscribed circle drawn in it, and it only displays the content in this inscribed circle. The pixels in other locations are simply discarded (just like most round smartwatches on the market)

PACKAGE CONTENT
1.28 inch LCD Module x1
20cm cable x1
