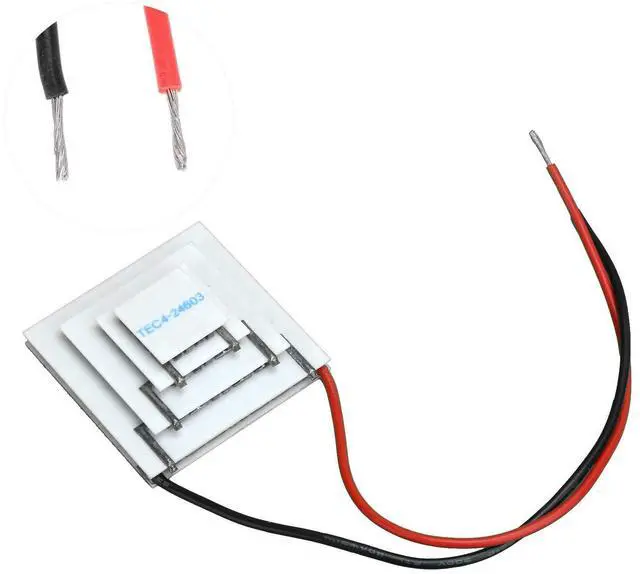

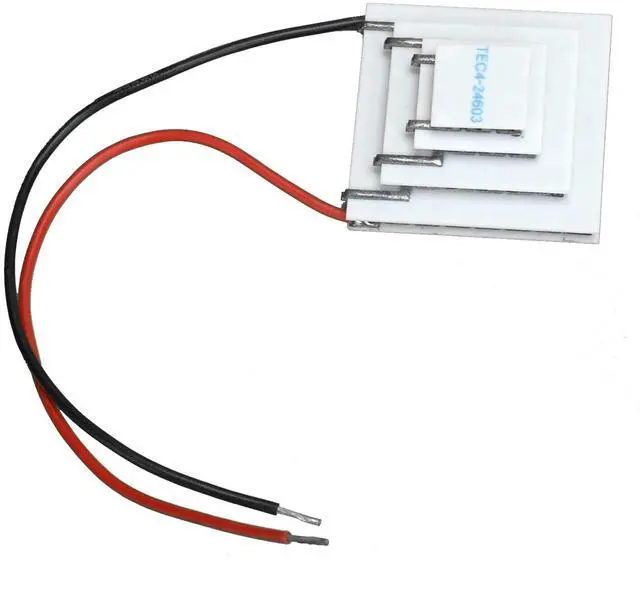

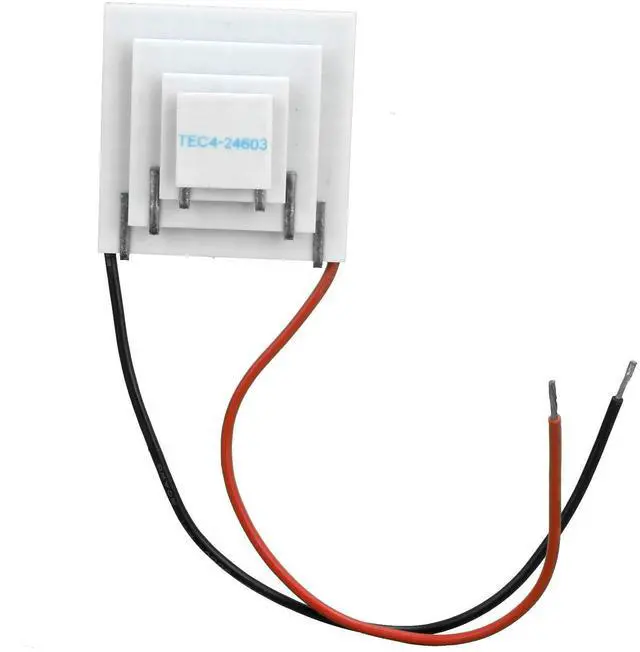

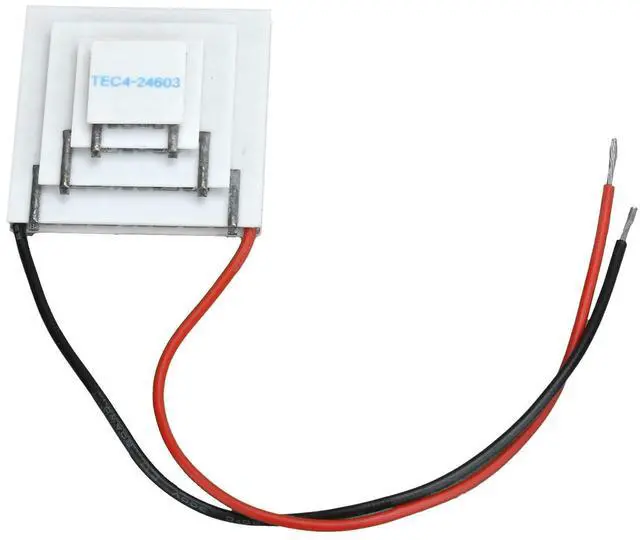

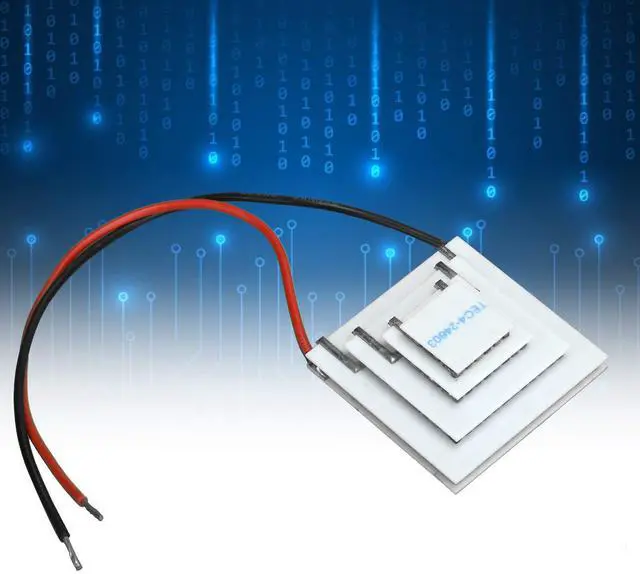

4 Layer Thermoelectric Cooler, Heat Sink Heatsink Cooling Peltier, Thermoelectric Cooler Refrigeration Computer Accessories,for High Tech Fields, Home, Electronic
- HEATSINK COOLER PERFORMANCE- Without any refrigerant, can work continuously, there is no pollution source, no rotating parts, and no rotation effect. No sliding part is a solid piece, there is no vibration, noise, long life, and easy installation. When the hot end has good heat dissipation and the cold end is empty, the cooling fin can attain the maximum temperature difference in less than one minute.
- FUNCTION- Thermoelectric cooler has 2 functions, both cooling and heating. The cooling efficiency is generally 55~60%, but the heating efficiency is always higher than 1, and one can replace the separate cooling system and heating system.
- EASY TO CONTROL- Through the control of the input current, high accurate temperature control can be realized. Coupled with temperature detection and control means, it is easy to realize remote control, program control, and computer control to form an automatic control system.
- WARM TIPS- The reverse use of semiconductor refrige
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Thermoelectric Cooler
Model: TEC4-24603
Material: Ceramic
Rated Voltage: DC12V
Maximum Voltage: DC 14.6V (Th=30)
Maximum Current: 3A (U= 14.6V, Th=30)
Maximum Temperature Difference: 107(Qc=0, Th=30)
Maximum Cooling Capacity: 6.8W (T=0, Th=30)
Internal 3.9 ~ 4.3
Specification: 20AWG, L=Approx. 150mm / 5.9 in
Packaging Process: 704 silicone rubber sealing
Assembly Pressure: 4kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1.
Applications in high-tech fields: satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2.
Home appliance applications: dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3.
Application in electronic technology: cooling of electronic equipment, electronic components, computers, etc.
4.
Industrial applications: automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5.
Agricultural and biological applications: physical cooling pads, semiconductor physiological, vaccine preservation, etc.
Size: Approx. 15mm / 0.6 in
20mm / 0.8 in
30mm / 1.2 in
40mm / 1.6 in
Package List:
1 x Semiconductor Cooling Film
Item Type: Thermoelectric Cooler
Model: TEC4-24603
Material: Ceramic
Rated Voltage: DC12V
Maximum Voltage: DC 14.6V (Th=30)
Maximum Current: 3A (U= 14.6V, Th=30)
Maximum Temperature Difference: 107(Qc=0, Th=30)
Maximum Cooling Capacity: 6.8W (T=0, Th=30)
Internal 3.9 ~ 4.3
Specification: 20AWG, L=Approx. 150mm / 5.9 in
Packaging Process: 704 silicone rubber sealing
Assembly Pressure: 4kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1.
Applications in high-tech fields: satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2.
Home appliance applications: dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3.
Application in electronic technology: cooling of electronic equipment, electronic components, computers, etc.
4.
Industrial applications: automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5.
Agricultural and biological applications: physical cooling pads, semiconductor physiological, vaccine preservation, etc.
Size: Approx. 15mm / 0.6 in
20mm / 0.8 in
30mm / 1.2 in
40mm / 1.6 in
Package List:
1 x Semiconductor Cooling Film
