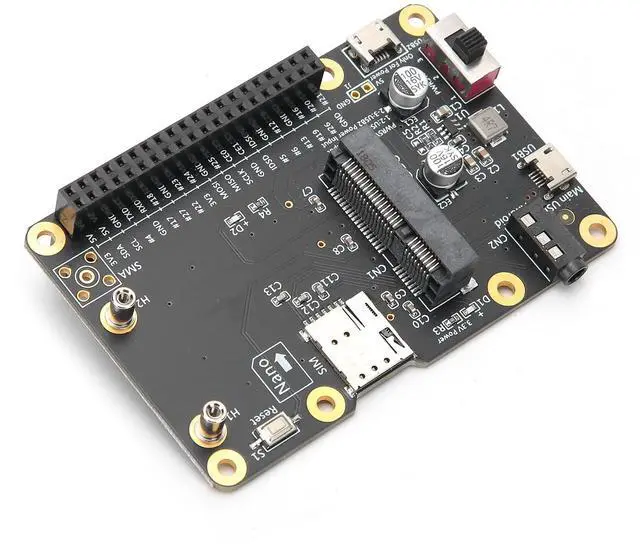

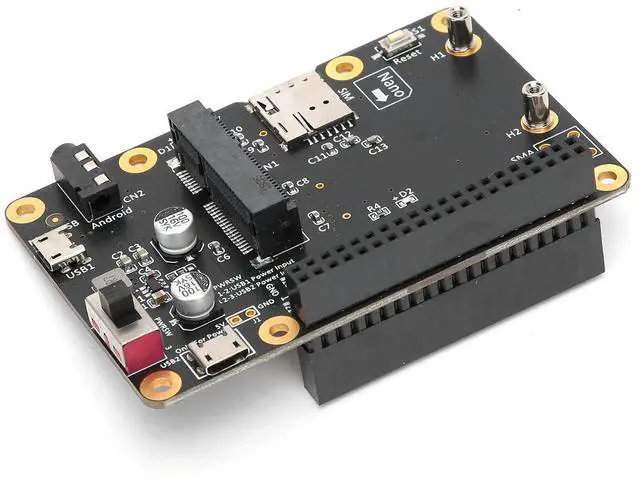

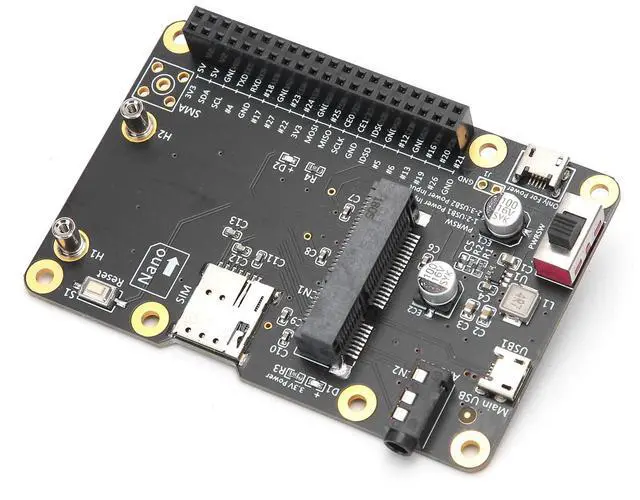

ASHATA 3G/4G LTE Base Hat for 4/3/2/B+ Module, PCLaptopComputer Board to USB, Built in Nano SIM Card Socket,Clipin Mini PCIE Socket
- Totally compatible with for 4/3/2/B+ with the 40 pin GPIO header
- Clipin mini PCIE socket is compatible with worldwide LTE, for UMTS/HSPA+ and for GSM/GPRS/ coverage with regional or global modules which work with different frequencies and carriers
- For NANO SIM card socket can easily reachable from the upside of the HAT
- Can be used standalone with PC/Laptop over micro USB without stacking with for
- Efficient and low quiescent current power circuit can support up to 3Amps
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: 3G/4G LTE Base Hat
Working Temperature Range: 40 ~ 80
Compatible with the Following Brand Boards:
1. For 4, 3, 2, B+
2. For Tinker Board
3. For Rock 64
4. For ARTI
Ks Board
5. For Latte Panda
Compatible with the Following Brand Mini PCI E Modules:
For Quectel: EC25/EC21/ EC20 /UC20/ LTE EP06
For: AirPrime MC Series
For Telit: LM960, LE910V2, HE910, LE910Cx
For: ME909s 120, ME909s 821, etc.
For Simcom: SIM7100, SIM7230, etc.
For ZTE: ZM8620, etc.
For U Blox: MPCI L2 Series
For Thales: PLS62W, mPLS8, mPLAS9
Size: Approx. 85 x 55mm / 3.3 x 2.2 in
25mm / 1in

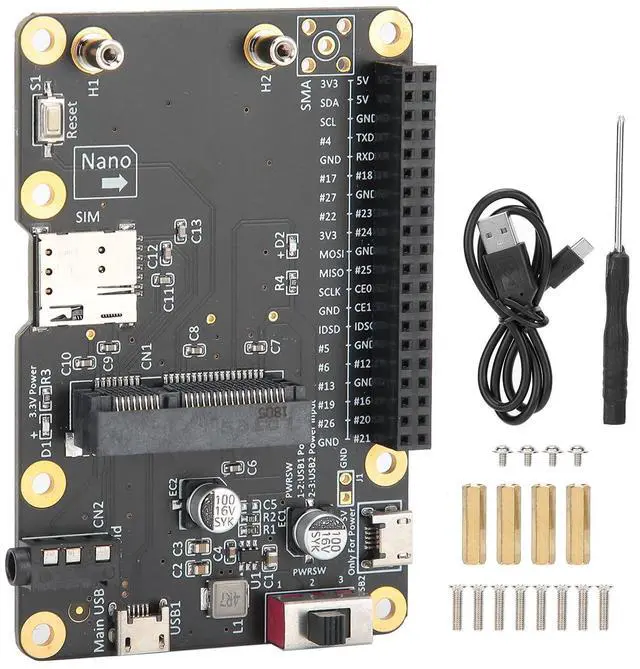

Package List:
1 x 3G/4G LTE Base Hat
1 x USB 2.0 to Micro USB Cable
1 x Screw Driver
1 x Accessories Package
1 x User Manual
Item Type: 3G/4G LTE Base Hat
Working Temperature Range: 40 ~ 80
Compatible with the Following Brand Boards:
1. For 4, 3, 2, B+
2. For Tinker Board
3. For Rock 64
4. For ARTI
Ks Board
5. For Latte Panda
Compatible with the Following Brand Mini PCI E Modules:
For Quectel: EC25/EC21/ EC20 /UC20/ LTE EP06
For: AirPrime MC Series
For Telit: LM960, LE910V2, HE910, LE910Cx
For: ME909s 120, ME909s 821, etc.
For Simcom: SIM7100, SIM7230, etc.
For ZTE: ZM8620, etc.
For U Blox: MPCI L2 Series
For Thales: PLS62W, mPLS8, mPLAS9
Size: Approx. 85 x 55mm / 3.3 x 2.2 in
25mm / 1in
Package List:
1 x 3G/4G LTE Base Hat
1 x USB 2.0 to Micro USB Cable
1 x Screw Driver
1 x Accessories Package
1 x User Manual
