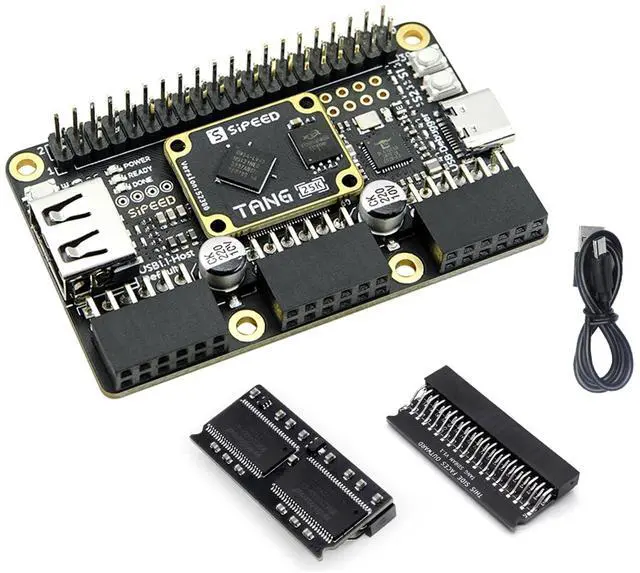

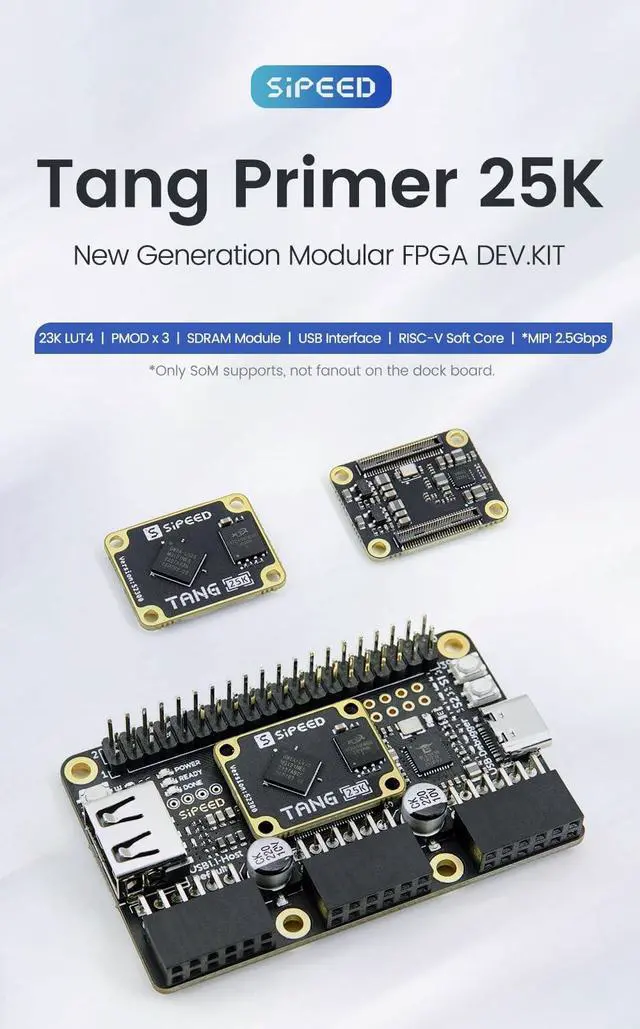

Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (SDRAM Bundle)

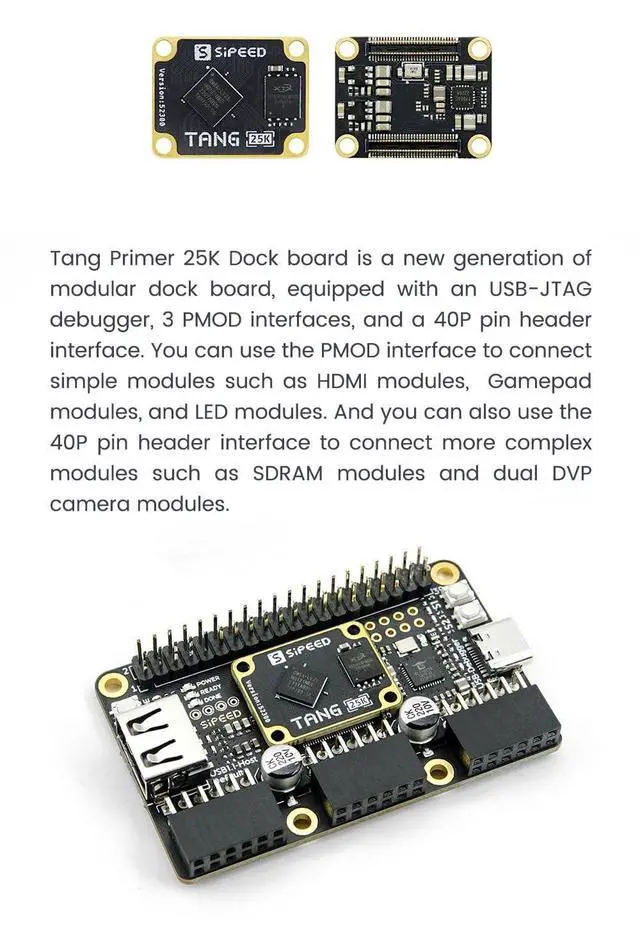

[FPGA RISCV CPU] Tang Primer 25K Dock single board computer is a new generation of modular development board with onboard RISC-V soft core, 23K LUT4 FPGA GW5A RISCV CPU, supports MIPI 2.5Gbps Ethernet, and is equipped with a USB-JTAG debugger , 3x PMOD interface, 1x USB interface and 1x 40P pin header interface to facilitate FPGA programming.

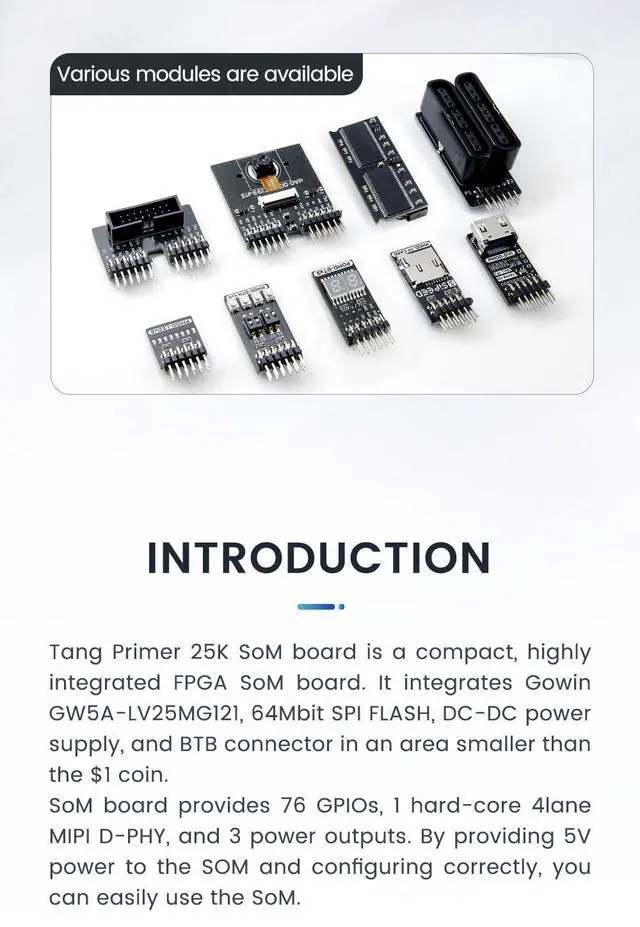

[PMOD Interface Module] The Tang Primer 25K Dock single board computer supports using the PMOD interface to connect simple modules such as HDMI modules, game controller modules and LED modules. It can also use the 40 PIN GPIO interface to connect SDRAM modules, dual DVP camera modules and other more complex functions. module.
[Small Size, High integration] Tang Primer 25K Dock single board computer is a small, highly integrated FPGA development board. It only needs to provide a 5V power supply to the core board and correctly set the configuration pins. It can be applied to any space with limited space. scene.
[Rich Peripheral Pins] Tang P

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

-Specification-CPU: GW5A-LV25MG121
FPGA SoCFlash: 64Mbits
NOR FlashDebugger: on-board high-speed debugger, support JTAG + UART, using the
USB-C port burningUSB-A: one, can be used as a USB 1.1 Host to connect the gamepad and other
HID devicesIO pin: a 2x20Pin 2.54 pin Support SDRAM moduleGeneral
IO: 75MIPI
IO: 4lane
DataPMOD: 3
pcsPushbuttons: 2

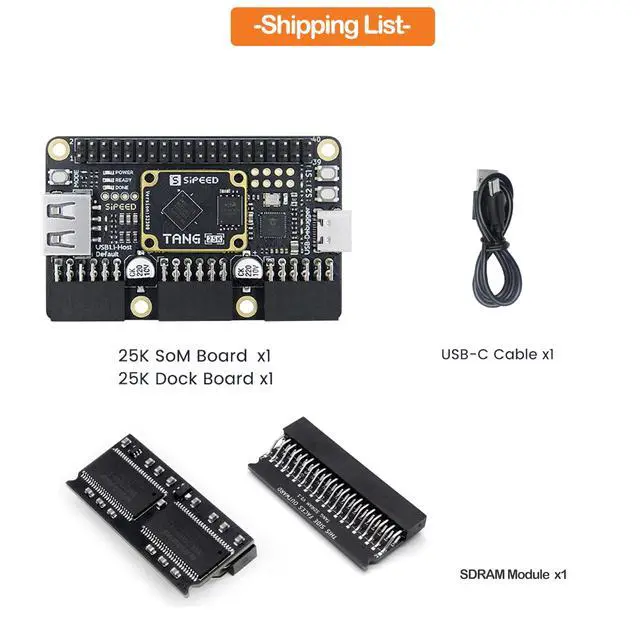

pcsSize: 64x40mm-Package Content-Shown as picture Combo x1-Technical
Support- Github Link: "github.
com/sipeed/TangPrimer-25K-example" Card Location Map:
"file:
///C: /Users/Lenovo/Downloads/Tang_Primer_25K_Dock_60033_ibom. html" Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-.
)" or skype: monica_9122.
