Wonrabai 1.9inch LCD Display Module IPS Screen 170x320 Resolution 262K Display Colors Embedded ST7789V2 Driver Chip 3.3V / 5V SPI Interface Compatible with Raspberry Pi/with Arduino/STM32

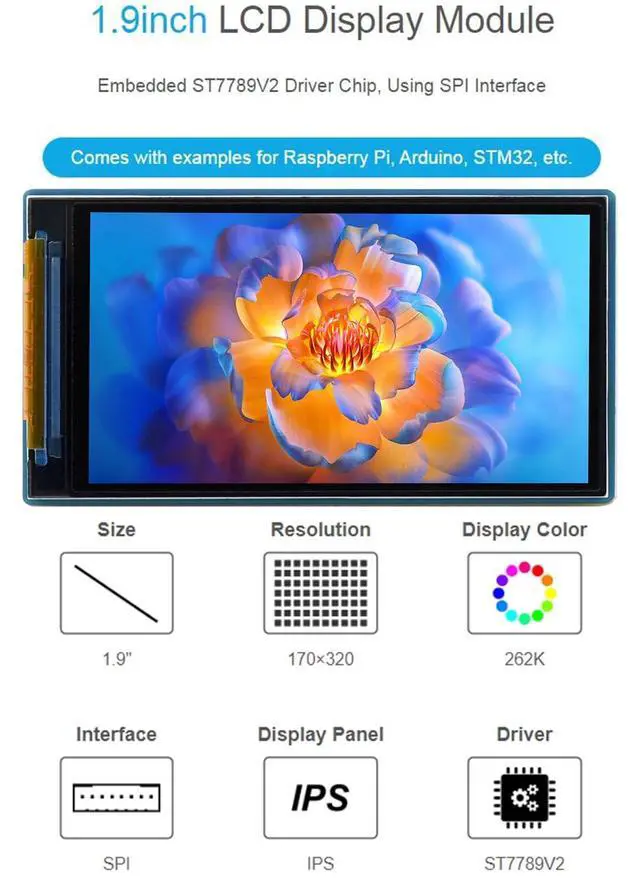

- This is Waveshare 1.9inch LCD Display Module, 170320 Resolution, 262K colors, clear and colorful displaying effect
- Embedded ST7789V2 driver chip, Using SPI Interface
- Onboard Voltage Translator---Compatible With 3.3V / 5V Power input

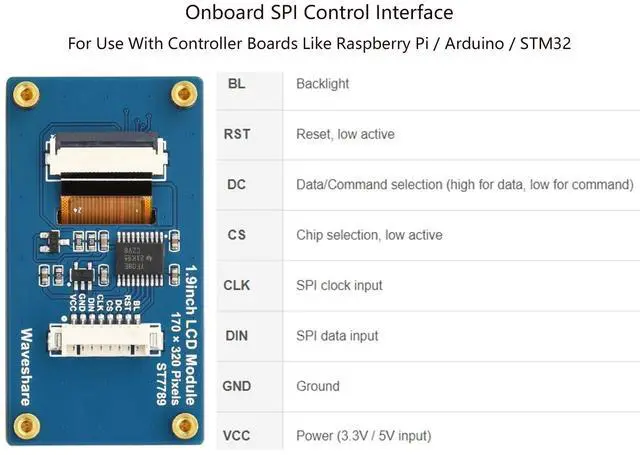

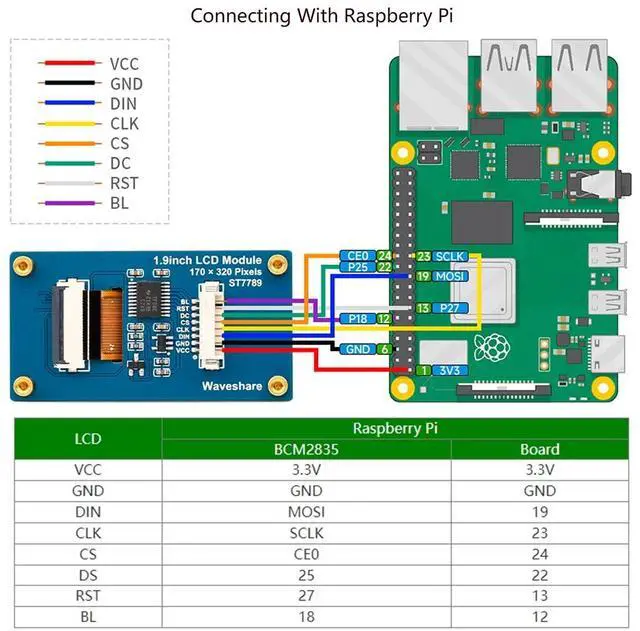

- Onboard SPI Control Interface--For Use With Controller Boards, Compatible with Raspberry Pi/ withArduino/STM32
- This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This is Waveshare 1.9 inch LCD Display Module 170320 Resolution, IPS, 262K Colors, Embedded ST7789V2 driver chip, Using SPI InterfaceFeatures170320 resolution, 262K colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards, compatible with Raspberry Pi/ withArduino/STM32. Comes with online development resources (examples for Raspberry Pi/Arduino/STM32), Please

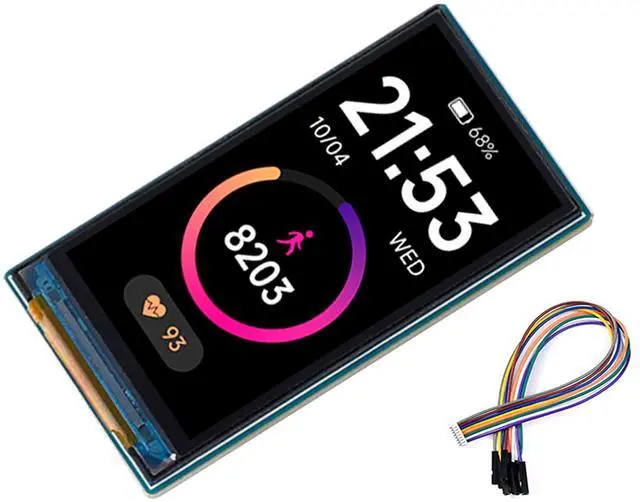

check: n9. cl/6e3z1SpecificationsOperating voltage -- 3.3V / 5VResolution--170 320 pixelsCommunication Interface--4-wire SPIDriver--ST7789V2Display size -- 22.70 42.72 mmDisplay Panel--IPSPixel Size-- 0.1335 0.1335 mmModule size-- 27.3 51.2 mmPackage Content 1.9 inch LCD Module x1 GH 1.25 20cm cable x1
check: n9. cl/6e3z1SpecificationsOperating voltage -- 3.3V / 5VResolution--170 320 pixelsCommunication Interface--4-wire SPIDriver--ST7789V2Display size -- 22.70 42.72 mmDisplay Panel--IPSPixel Size-- 0.1335 0.1335 mmModule size-- 27.3 51.2 mmPackage Content 1.9 inch LCD Module x1 GH 1.25 20cm cable x1
