ESP-Launcher Development Board
- 2 MB SPI Flash + 4 MB HSPI Flash
- InterfacesI/O USB
- UIButtons, LEDs
- SDK: ESP8266 SDK source code and example applications
- Demo code: https://github.com/espressif/ESP8266_RTOS_SDK
- Please contact [email protected] if you have further business or technical questions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

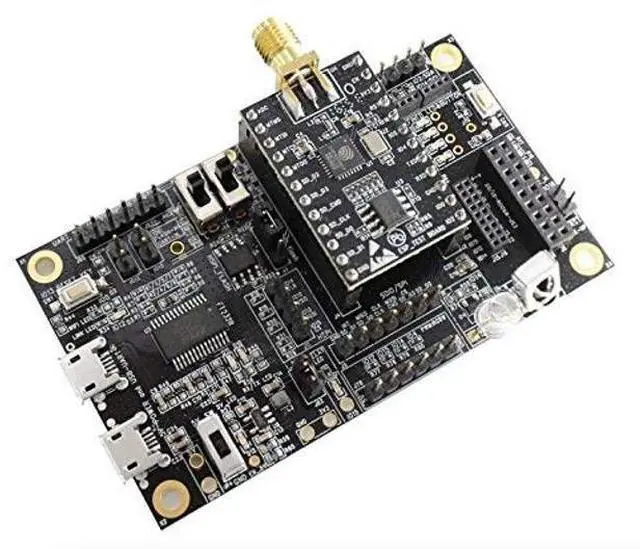

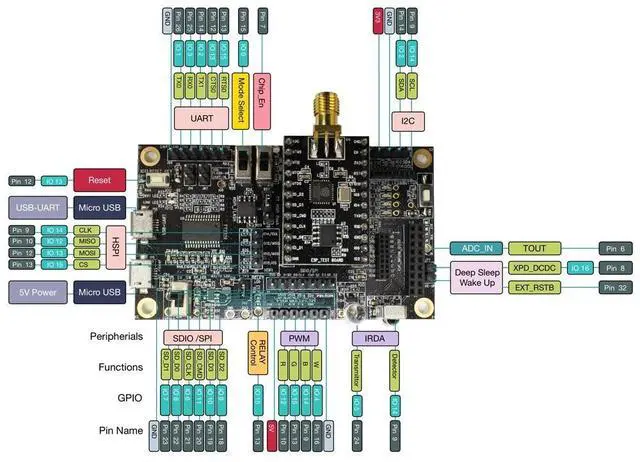

ESP8266-based Development Board, with 2 USB interfaces for quick configuration and easy development. ESP-Launcher is a Micro USB-powered development board that allows access to all 32 pins of ESP8266. It integrates the commonly-used peripherals. With its complete and self-contained Wi-Fi networking capabilities, ESP8266EX can perform either as a standalone application, or as a slave to a host MCU. When ESP8266EX hosts an application, it promptly boots up from the external flash. The integrated high- speed cache optimizes the system's performance and memory. Also, ESP8266EX can be applied to any micro-controller design as a Wi-Fi adaptor through SPI/SDIO or I2C/UART interfaces.
Besides the Wi-Fi functionalities, ESP8266EX also integrates an enhanced version of Tensilicas L106 Diamond series 32-bit processor and on-chip SRAM. It can be interfaced with external sensors and other devices through the GPIOs, resulting in low development cost at early stage and minimum footprint. Software Development Kit (SDK) provides sample codes for various applications.
Besides the Wi-Fi functionalities, ESP8266EX also integrates an enhanced version of Tensilicas L106 Diamond series 32-bit processor and on-chip SRAM. It can be interfaced with external sensors and other devices through the GPIOs, resulting in low development cost at early stage and minimum footprint. Software Development Kit (SDK) provides sample codes for various applications.
