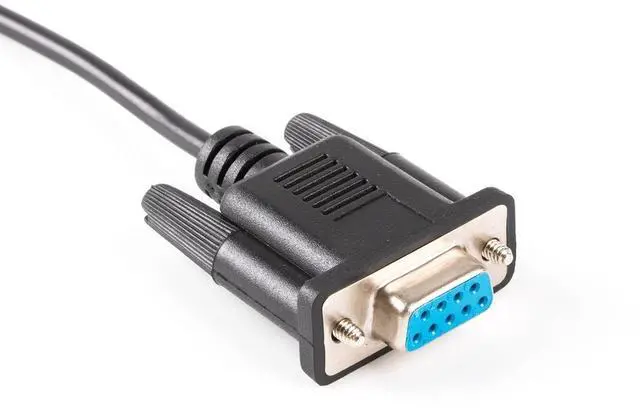

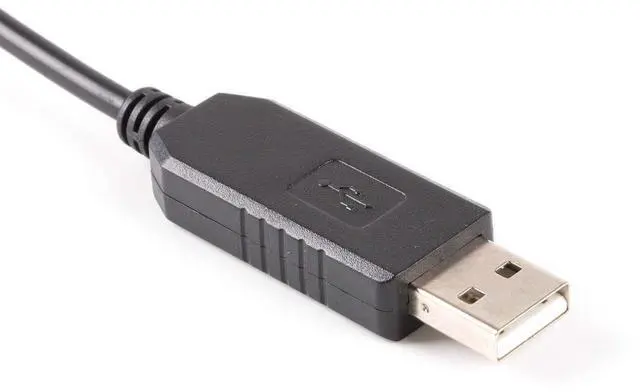

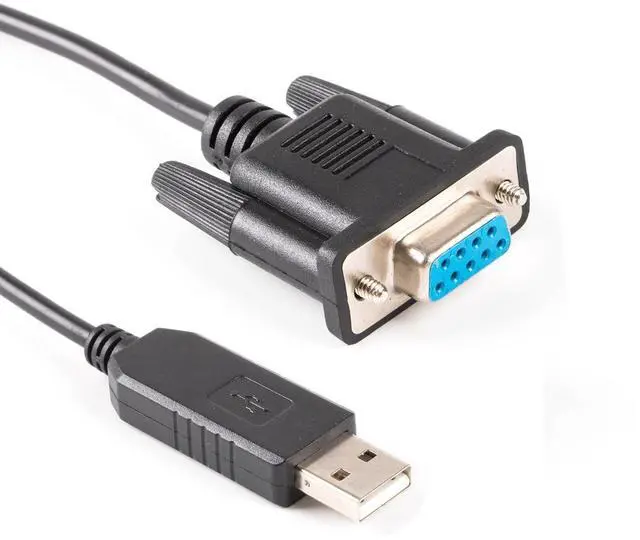

Letotech 5.9ft USB 2.0 to DB9 Female Cross-Wired RS232 Serial Cable - PC Control TV, Null Modem Pinout

(USB UART RS232 serial converter cableInside CP2102+ZT232 chip boardusb serial null molden DCE adapter cable for upgrading the old version desktop DB9 - DB9 cross wired null modem cable This cable is mostly specially used in PC (host) - PC (host) communication, also called null modem cableThis cable also can be used for PC control the TV, smart TV (as nowadays the TV is a computer) The other application of the usb rs232 db9 female cable is for PC (host) - device (slave), most of this application is 2-RX, 3-TX, 5-GND....

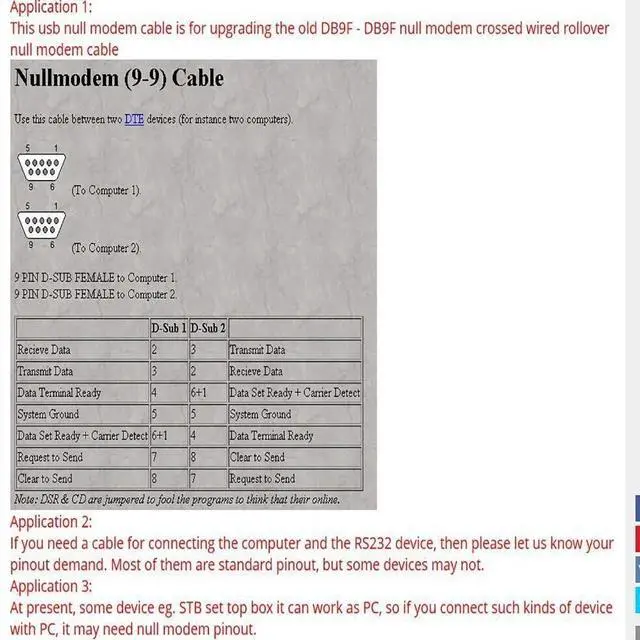

. The overview is the same, only the pinout is different, please be noted win8 10 android linux mac cross wired usb serial db9 ftdi ft232r usb rs232 null modem cable This cable can make your laptop pc(with USB, without DB9) to communicate with your desktop PC (with DB9 COM port) communicated each other. USB to Null Modem (Cross-Wired) RS232 Serial AdapteUSB 2.0 RS232 to DB9 female cableCP2102+ZT232 chipUSB 2.0 standard, full speedBaud Rate up to 921.6K bNull modem pinout(laptop pc with usb communicate with destop pc (with DB9 com port) ): 2-TXD (yellow), 3-RXD (orange), 5-GND (GND), 7-CTS (green), 8-RTS (brown), 1/4/6/9-NCStandard DB9

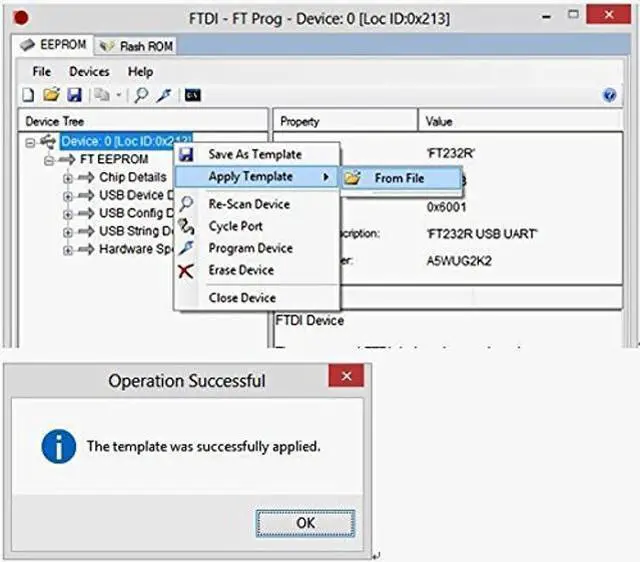

COM port pinout: pc (host) with usb to RS232 terminal device (slave) 2- RXD (yellow), 3-TXD (orange), 5-GND (GND), 7-RTS (green), 8-CTS (brown), 1/4/6/9-NCCustomized pinout accept(based on 2/3/5/7/8), but need your message, otherwise, send the standard pinout. 5c*26AWG, copper, 1.8 m, blackSupport Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OSSupport EEPROM, support Vendor ID re-write, support Mprog 3.5S upport FTDI VCP driver and
D2XX driverNeutral packing: zipper PE bag for each. CE, RoHS complianceif you need connect the rs232 device with pc, esp notebook pc, laptop pc, port pc, mini pc, etc, then you need a USB RS232 to DB9 MALE cables
