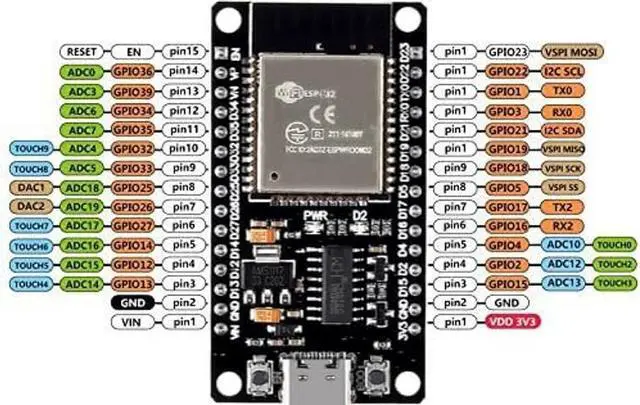

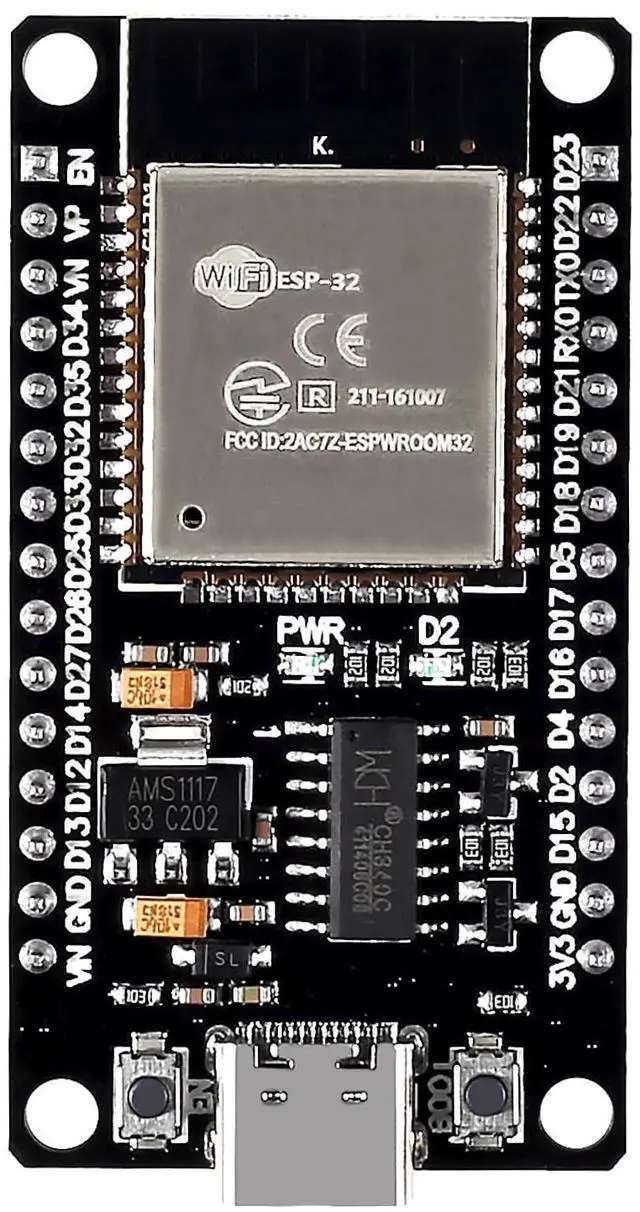

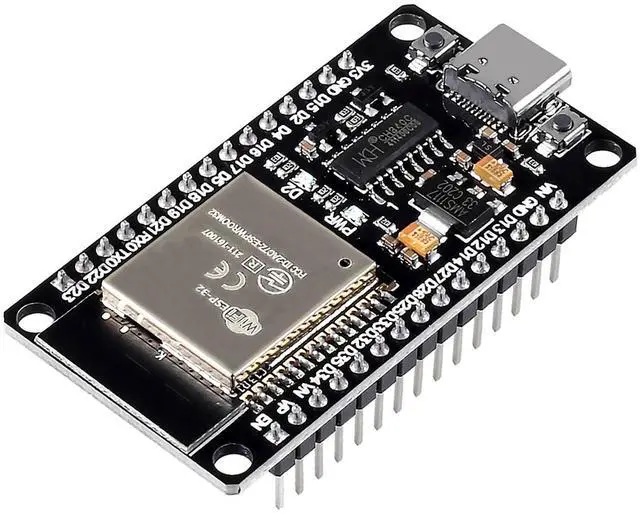

4PCS ESP32 Type C Development Board ESP32S Type-C USB WiFi + Bluetooth ESP-WROOM-32 2.4GHz CH340C Dual Core WiFi NodeMCU Processor Microcontroller ESP32-DevKitC-32
- Dual core ESP-32 development board, 2.4GHz dual mode development board. There are two touch buttons, one is reset, the other is enable module to enter the halberd program mode. This Esp32 module charging cable doesnt support type c to type c fast charging cable, only supports usb to type c ordinary charging cable
- The module is ESP-WROOM-32 module, the peripheral uses the USB serial port to expand the type c interface, which can be directly debugged by a USB connected computer, and the data transmission is fast and stable.
- The module supports for NodeMCU and other development environments, which expands the range of its resources available and greatly improves the ease of learning and development. Of course, it can also be widely used in Internet of things occasions, such as home automation, wireless industrial control, wireless positioning system signal
- ESP32 development board support lua program, easy to develop, support LWIP protocol, Freertos, three modes : AP, STA and AP +
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The module is the ESP- WROOM-32 development board, and the ESP- WROOM32 parameter characteristic is also the parameter characteristic of the moduleLow power dual core 32-bit CPU, which can be used as application processorThe main frequency is up to 240MHz, and the operation capacity is up to 600DMIPSSupport UART / SPI / I2C / PWM / DAC / ADC and other interfacesSupport openOCD debugging interfaceIt supports multiple sleep modes, and the current reaches 6.5 ua in deep sleepEmbedded LwIP and FreeRTOSSupport STA/AP/STA+AP modeSupport Smart Config / Airkiss one key distribution networkSupport VIN external wide voltage input 5-12V power supply (battery version maximum 5.5V input)Support USB power supply, external 3.3V power supply, and VIN power supply three kinds of power supply

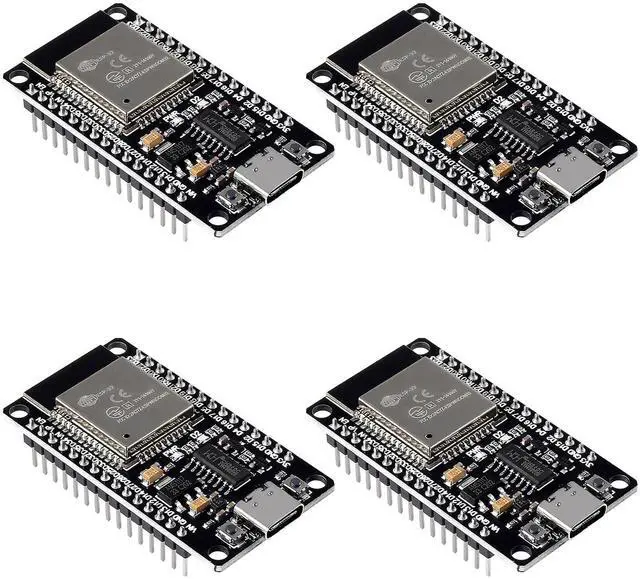

Mode development boardPackage include: 4
X ESP32 development boardNote: This Esp32 module charging cable doesnt support type c to type c fast charging cable, only supports usb to type c ordinary charging cable
Mode development boardPackage include: 4
X ESP32 development boardNote: This Esp32 module charging cable doesnt support type c to type c fast charging cable, only supports usb to type c ordinary charging cable
