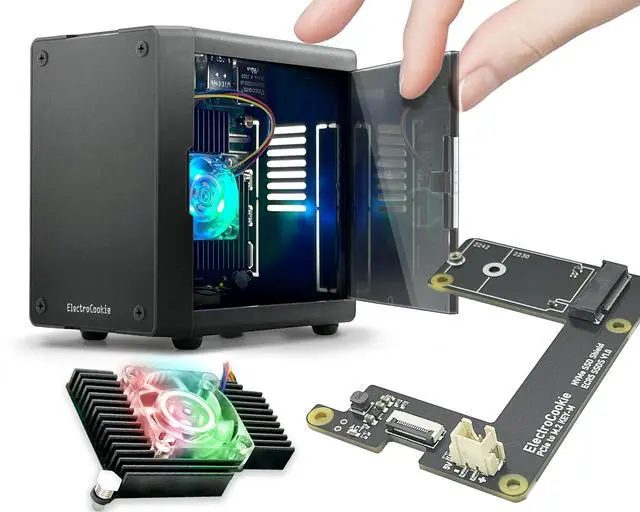

ElectroCookie Mini PC Case for Raspberry Pi 5 with M.2 NVMe SSD PCIe HAT and Active RGB Lighting Cooler (Black Case + M.2 HAT[ECR5 SSDS])
- Miniature PC-Style Case for Raspberry Pi 5, featuring an NVMe M.2 SSD shield compatible with 2230 and 2242 sizes, providing expanded storage and ultra-fast responsiveness.
- **SSD Compatibility & Setup Info : Please check SSD compatibility in the product description or by searching Pi Benchmark online. Boot drive setup instructions are also provided in the product description below, or you can follow official Raspberry Pi documentation and online tutorials.
- Enjoy easy access to GPIO pins and quick SSD swaps with the tinted side door, which also beautifully showcases internal RGB lighting to combine style with functionality.

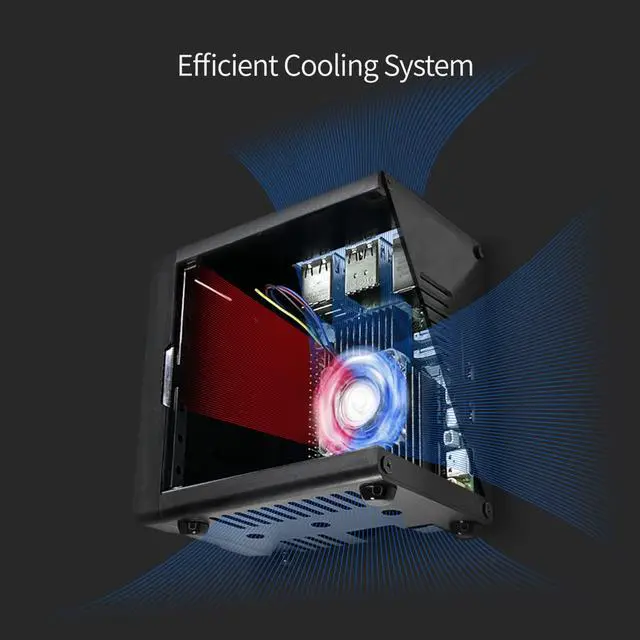

- Equipped with an RGB-lit PWM fan that turns on with system power and automatically adjusts its speed based on CPU temperature (*Note: The lighting is not programmable, and the fan may not spin when the CPU is cool, or may run continuously if no OS or bootable drive is available to control it.).
- Easily power your Raspberry Pi 5 on or off from outside the ca
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

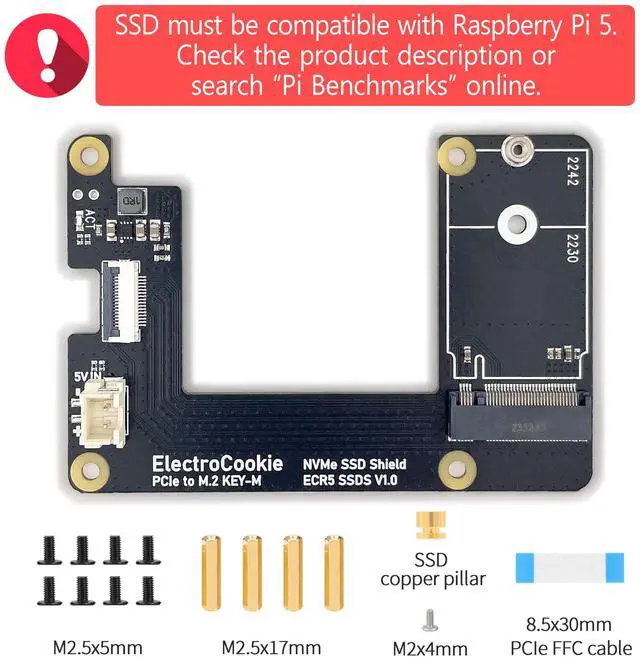

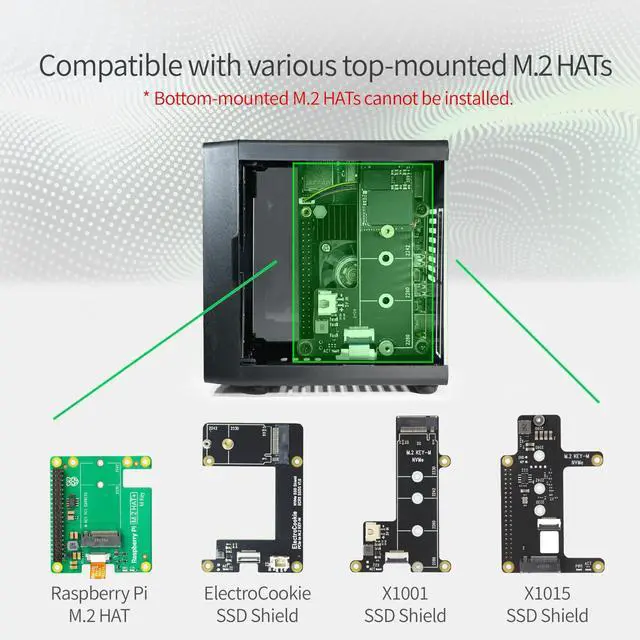

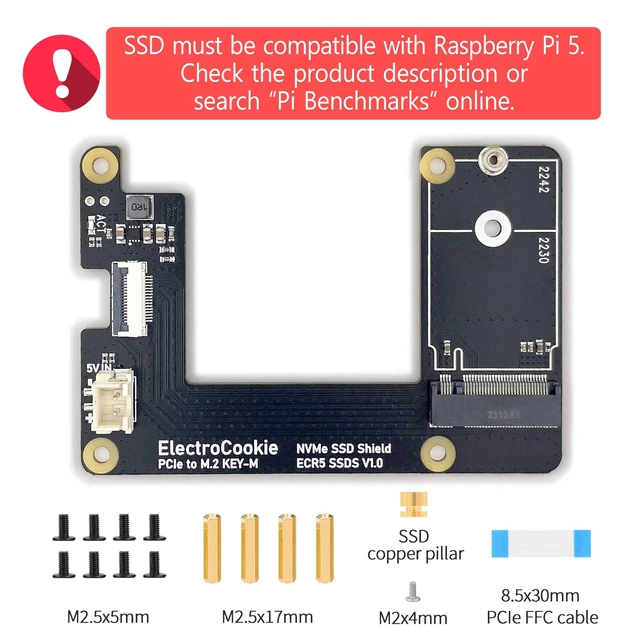

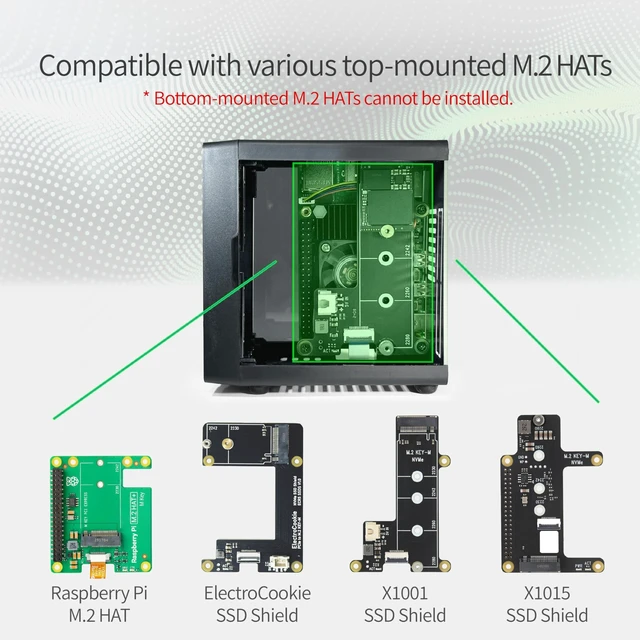

Raspberry Pi 5 NVMe SSD HAT Compatibility NoticeThis NVMe SSD HAT for Raspberry Pi 5 shares the same circuit design as widely adopted M. 2 HATs, featuring a PCB layout thats been minimally customized to fit our case dimensions. As with the official Raspberry Pi Foundation M. 2 HAT, it supports only 2230 and 2242 NVMe SSDs. If your SSD is not recognized or fails to boot with the Raspberry Pi 5, it is most likely due to incompatibility between the SSD and the Raspberry Pi
5. The HAT simply acts as a signal and power bridge and does not affect SSD compatibility. SSD controllers known to cause issues include: SMI2263XT, SMI2263EN, MAP1202, Phison series controllers Known Incompatible SSDs The following SSDs have been reported to show compatibility issues with
Raspberry Pi 5: Inland TN446 Corsair MP600 Micron 2450 Kingston OM8SEP4256Q-A0 WD_Blue SN550 / SN580 WD_Green SN350 WD_Black SN850 / SN770 Kingspec series Any other SSDs that use SMI2263XT, SMI2263EN, MAP1202, or Phison series controllers Recommended SSDs (Confirmed Compatible) The following SSDs are known for low power consumption and low heat generation, making them a great match for the Raspberry Pi 5s hardware and power limits: Samsung PM9A1, PM981, PM991, PM991a, PM9B1 SK hynix BC901, BC711 Official Raspberry Pi NVMe SSD Tips for Stable Operation Make sure your Raspberry Pi 5s bootloader and OS are up to date. Before purchasing an SSD, we recommend searching online for Pi Benchmarks to check real-world performance and compatibility reports. How to Set Up SSD Boot on Raspberry Pi 5 Using an M.

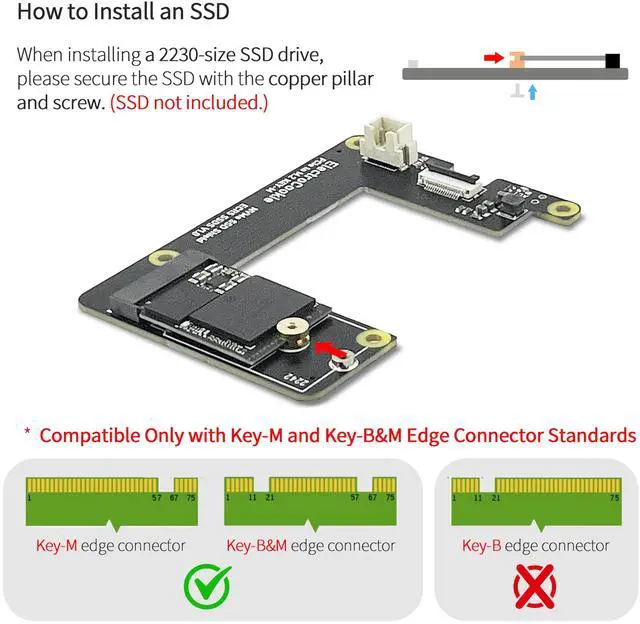

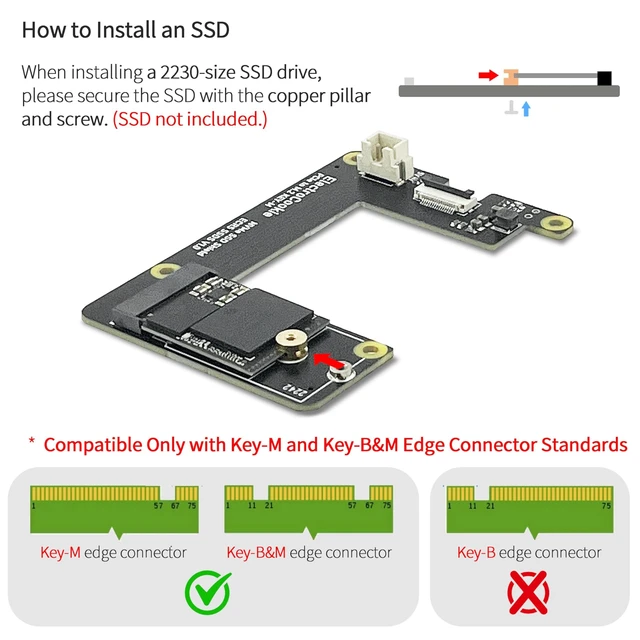

2 HAT Note: SSD boot setup is the same as with the official M. 2 HAT or other standard models. You can follow the official Raspberry Pi documentation, online tutorials, or simply refer to the step-by-step guide below. 1. Assemble your Raspberry Pi 5 board with the M. 2 HAT and SSD. 2. Insert an SD card with Raspberry Pi OS into your Raspberry Pi 5, and power it on. 3. Open the terminal and run the following commands one by one to update your Raspberry Pi.: sudo apt update && sudo apt full-upgradesudo apt install rpi-eepromsudo rpi-eeprom-update4.
Install Raspberry Pi Imager: sudo apt install rpi-imager5.
Launch Raspberry Pi Imager: rpi-imager6.
In the Imager: - Select Raspberry Pi 5 as your device- Choose the OS version- Select your SSD as the target drive, and start the installation. 7. After OS installation, run the following to configure boot order: sudo raspi-config8.
Set boot order: Advanced Options Boot Order NVMe/USB BootThen press Finish or the Escape key. 9. Reboot your Raspberry Pi. It will now boot from the NVMe SSD
5. The HAT simply acts as a signal and power bridge and does not affect SSD compatibility. SSD controllers known to cause issues include: SMI2263XT, SMI2263EN, MAP1202, Phison series controllers Known Incompatible SSDs The following SSDs have been reported to show compatibility issues with
Raspberry Pi 5: Inland TN446 Corsair MP600 Micron 2450 Kingston OM8SEP4256Q-A0 WD_Blue SN550 / SN580 WD_Green SN350 WD_Black SN850 / SN770 Kingspec series Any other SSDs that use SMI2263XT, SMI2263EN, MAP1202, or Phison series controllers Recommended SSDs (Confirmed Compatible) The following SSDs are known for low power consumption and low heat generation, making them a great match for the Raspberry Pi 5s hardware and power limits: Samsung PM9A1, PM981, PM991, PM991a, PM9B1 SK hynix BC901, BC711 Official Raspberry Pi NVMe SSD Tips for Stable Operation Make sure your Raspberry Pi 5s bootloader and OS are up to date. Before purchasing an SSD, we recommend searching online for Pi Benchmarks to check real-world performance and compatibility reports. How to Set Up SSD Boot on Raspberry Pi 5 Using an M.
2 HAT Note: SSD boot setup is the same as with the official M. 2 HAT or other standard models. You can follow the official Raspberry Pi documentation, online tutorials, or simply refer to the step-by-step guide below. 1. Assemble your Raspberry Pi 5 board with the M. 2 HAT and SSD. 2. Insert an SD card with Raspberry Pi OS into your Raspberry Pi 5, and power it on. 3. Open the terminal and run the following commands one by one to update your Raspberry Pi.: sudo apt update && sudo apt full-upgradesudo apt install rpi-eepromsudo rpi-eeprom-update4.
Install Raspberry Pi Imager: sudo apt install rpi-imager5.
Launch Raspberry Pi Imager: rpi-imager6.
In the Imager: - Select Raspberry Pi 5 as your device- Choose the OS version- Select your SSD as the target drive, and start the installation. 7. After OS installation, run the following to configure boot order: sudo raspi-config8.
Set boot order: Advanced Options Boot Order NVMe/USB BootThen press Finish or the Escape key. 9. Reboot your Raspberry Pi. It will now boot from the NVMe SSD
