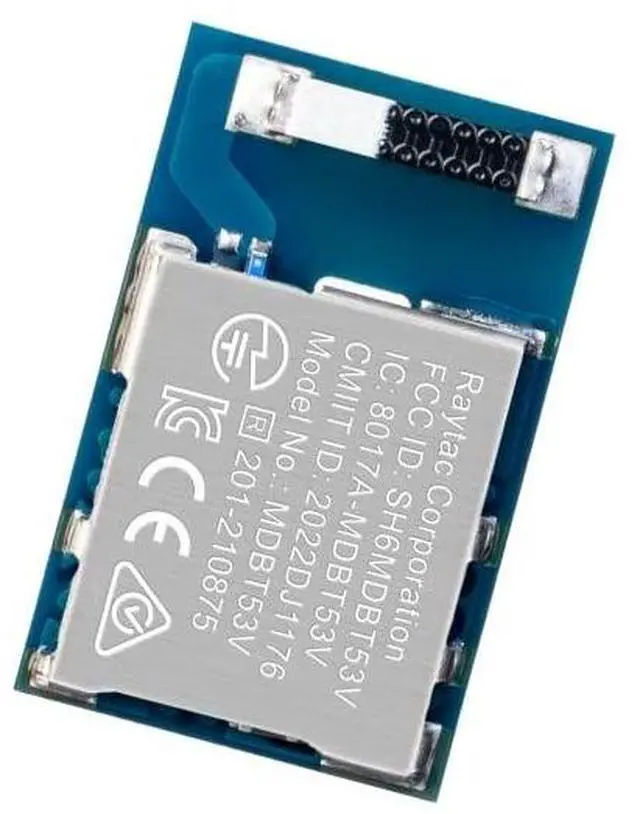

MDBT53V-1M Nordic nRF5340 Dual Core Chip ANT 25 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (3pcs Pak)
- Nordic nRF5340 Chip Antenna Module / MDBT53V-1M (3pcs Pak)

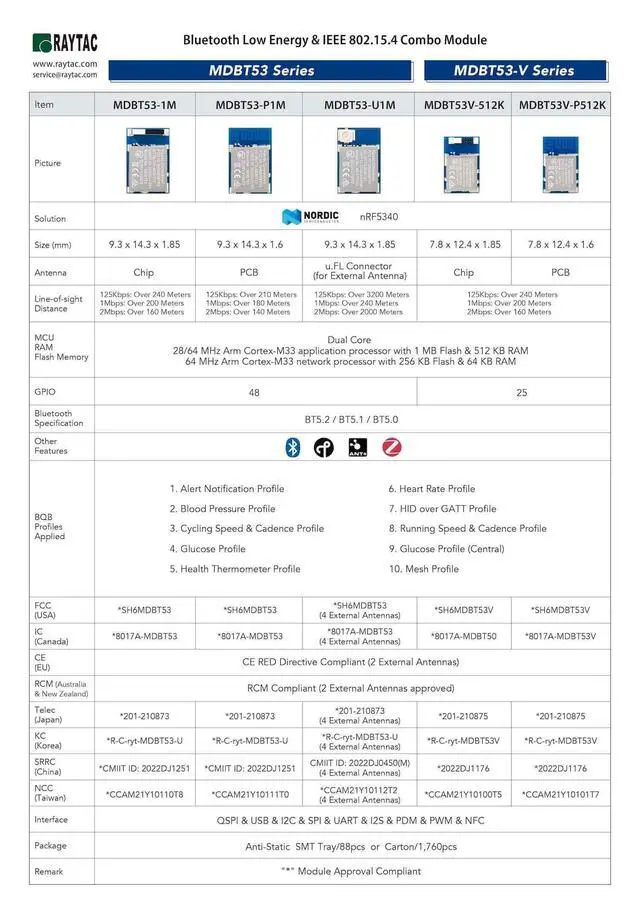

- Dual Core Processors: Network Core (256 kB flash + 64 kB RAM) / Application Core (1 MB flash + 512 kB RAM)
- Supports Bluetooth LE Audio

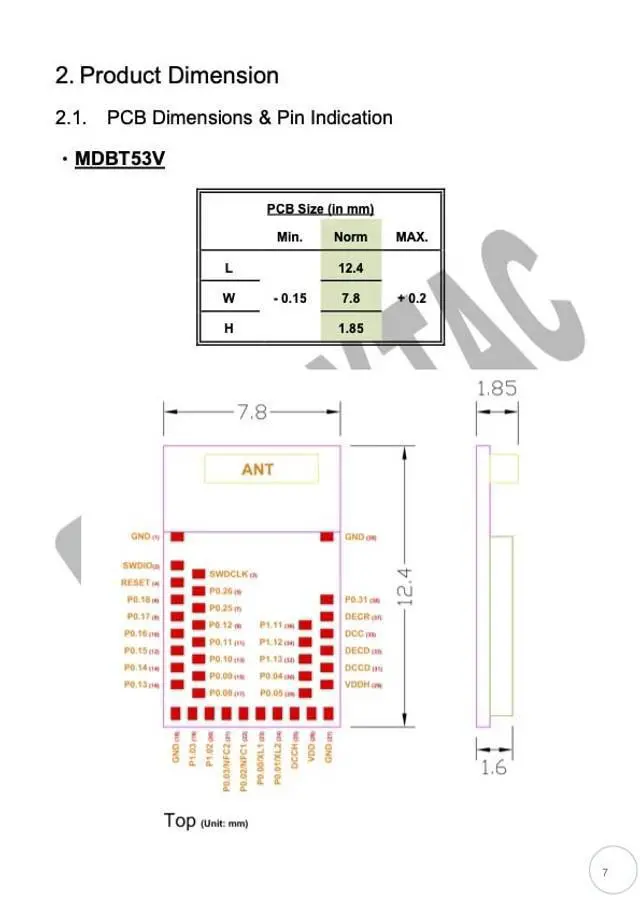

- 25 GPIO / 7.8 x 12.4 x 1.85 mm
- Interface: QSPI & USB & I2C & SPI & UART & I2S & PDM & PWM & NFC
- Operation Temp.: -40C to 105 C (-40F~221F) / 1.7 to 5.5 V supply voltage
- RoHS & Reach Compliant
- Raytac Part No.: MDBT53V-1M
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Raytacs MDBT53V-1M is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF5340 SoC solution, which
incorporates: GPIO, SPI, UART, TWI, I2S, PDM, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors.
Features: Dual
Core processors: Network Core (256 kB flash + 64 kB RAM) / Application Core (1 MB flash + 512 kB RAM) Supports Bluetooth LE Audio Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 7.8 x (W) 12.4 x (H) 1.85 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
incorporates: GPIO, SPI, UART, TWI, I2S, PDM, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors.
Features: Dual
Core processors: Network Core (256 kB flash + 64 kB RAM) / Application Core (1 MB flash + 512 kB RAM) Supports Bluetooth LE Audio Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 7.8 x (W) 12.4 x (H) 1.85 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
