Asixxsix B75 Computer Motherboard, LGA 1155 Socket DDR3 16GB Gaming Motherboard with M2 NVMe NGFF ATA3 0 PCI E, PC Motherboard for Core i3 i5 i7 XeonE3 V2 Pentium Processors
- SUPPORT FOR VARIOUS PROCESSORS: For LGA 1155 motherboard utilizes the B75 chipset, supporting for 2nd and 3rd generation for Core i3, i5, i7, for XeonE3/V2 series, for Celeron G series, and for Pentium G series processors, including popular modelss like for E3 1280 V2 and for Core i7 3770K.

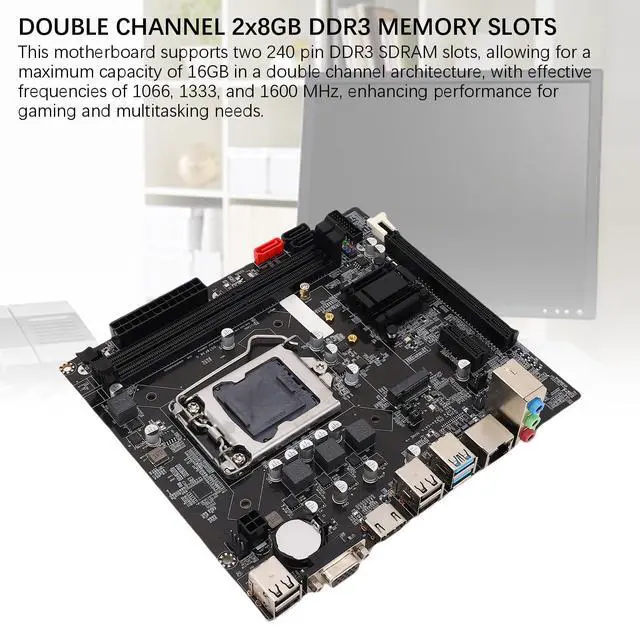

- DOUBLE CHANNEL 2x8GB DDR3 MEMORY SLOTS: This motherboard supports two 240 pin DDR3 SDRAM slots, allowing for a maximum capacity of 16GB in a double channel architecture, with effective frequencies of 1066, 1333, and 1600 MHz, enhancing performance for gaming and multitasking needs.

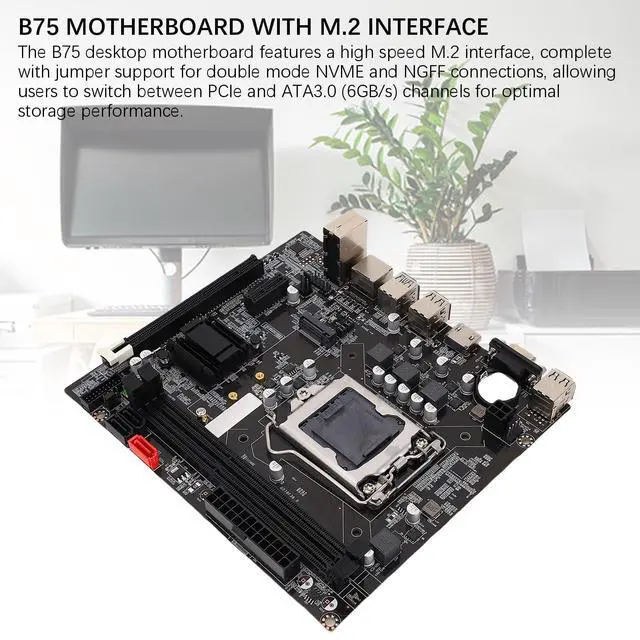

- B75 MOTHERBOARD WITH M.2 INTERFACE: The B75 desktop motherboard features a high speed M.2 interface, complete with jumper support for double mode NVME and NGFF connections, allowing users to switch between PCIe and ATA3.0 (6GB/s) channels for optimal storage performance.

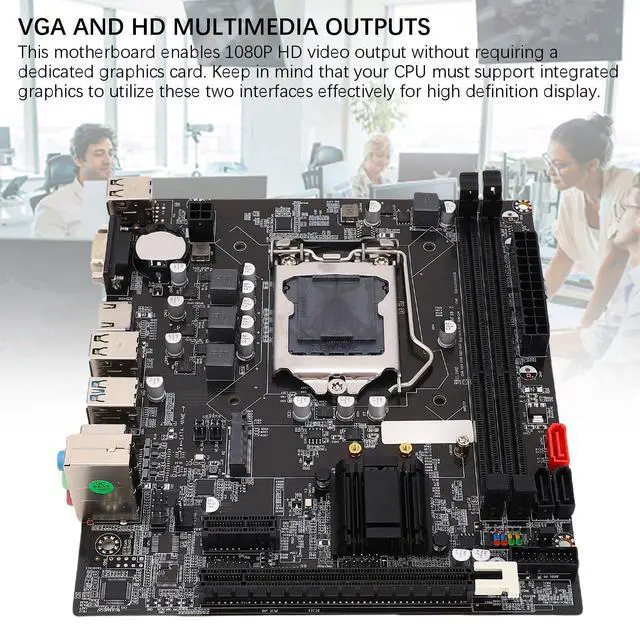

- VGA AND HD MULTIMEDIA OUTPUTS: This motherboard enables 1080P HD video output without requiring a dedicated graphics card. Keep in mind that you
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec: Item
Type: Computer
MotherboardModel:
B75Material: PCB
Battery: CR2032 (Built in)
Capacity:
240mAhSocket: for
LGA1155 SocketCPU Support: for 2nd or 3rd gen for Core i3/i5/i7, for XeonE3/V2 series, for Celeron G series, and for
Pentium G series processorsMemory: 2 x 240 pin DDR3 SDRAM slots, Maximum memory support 16GB, Supports double channel DDR3 1066/1333/1600
MHzStorage: 2 x ATA 2.0 (3Gb/s) ports + 1 x ATA 3.0 (6Gb/s) portIntegrated
LAN: Onboard for Realtek 10/100 Mbps
LAN
Expansion Slots: 1 x PCI Express x16 slot, 1 x PCI Express x1 slotIntegrated
Sound: Onboard for Realtek ALC 6 channel HD sound codec, Front sound interface, Front stereo microphone interfaceI/O
Interfaces: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x High Definition Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (sound input/sound output/Microphone input)Power
Interfaces: 1 x 24 pin ATX power port, 1 x 4 pin ATX 12V power portProduct
Size: M-ATX architecture (Approx. 17 x 19cm / 6.69 x 7.48 in)How to
Use: Simply remove the product and start using it.
PackageList: 1 x Computer Motherboard
Type: Computer
MotherboardModel:
B75Material: PCB
Battery: CR2032 (Built in)
Capacity:
240mAhSocket: for
LGA1155 SocketCPU Support: for 2nd or 3rd gen for Core i3/i5/i7, for XeonE3/V2 series, for Celeron G series, and for
Pentium G series processorsMemory: 2 x 240 pin DDR3 SDRAM slots, Maximum memory support 16GB, Supports double channel DDR3 1066/1333/1600
MHzStorage: 2 x ATA 2.0 (3Gb/s) ports + 1 x ATA 3.0 (6Gb/s) portIntegrated
LAN: Onboard for Realtek 10/100 Mbps
LAN
Expansion Slots: 1 x PCI Express x16 slot, 1 x PCI Express x1 slotIntegrated
Sound: Onboard for Realtek ALC 6 channel HD sound codec, Front sound interface, Front stereo microphone interfaceI/O
Interfaces: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x High Definition Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (sound input/sound output/Microphone input)Power
Interfaces: 1 x 24 pin ATX power port, 1 x 4 pin ATX 12V power portProduct
Size: M-ATX architecture (Approx. 17 x 19cm / 6.69 x 7.48 in)How to
Use: Simply remove the product and start using it.
PackageList: 1 x Computer Motherboard
