for Raspberry Pi GNSS HAT Based on MAX-M8Q Support Multi-Constellation Receiver GPS Beidou Galileo GLONASS Support Augment Systems Like SBAS QZSS IMES and D-GPS Accurate Fast Positioning @XYGStudy

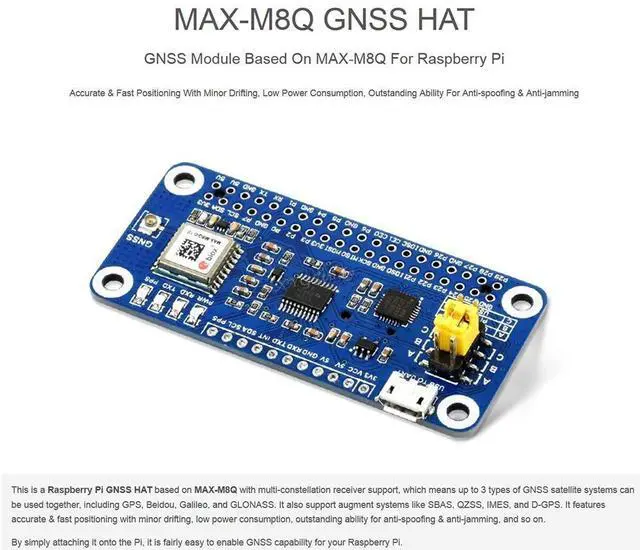

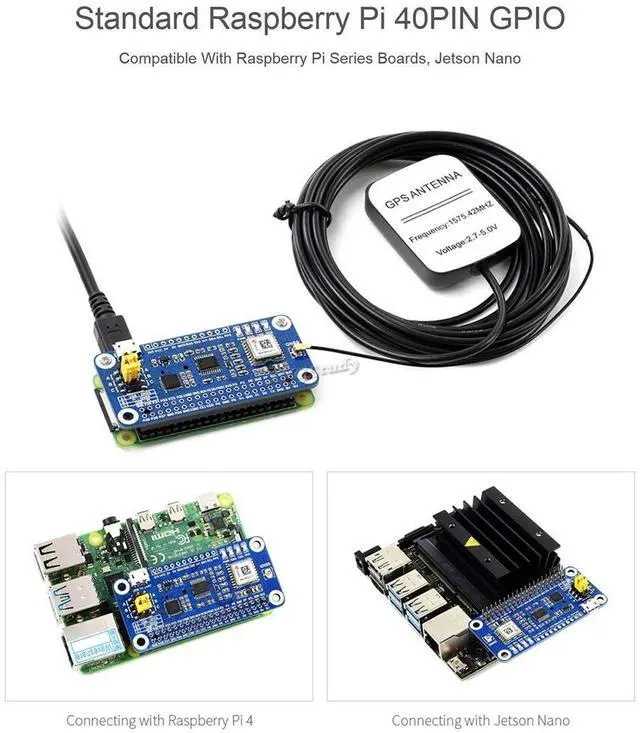

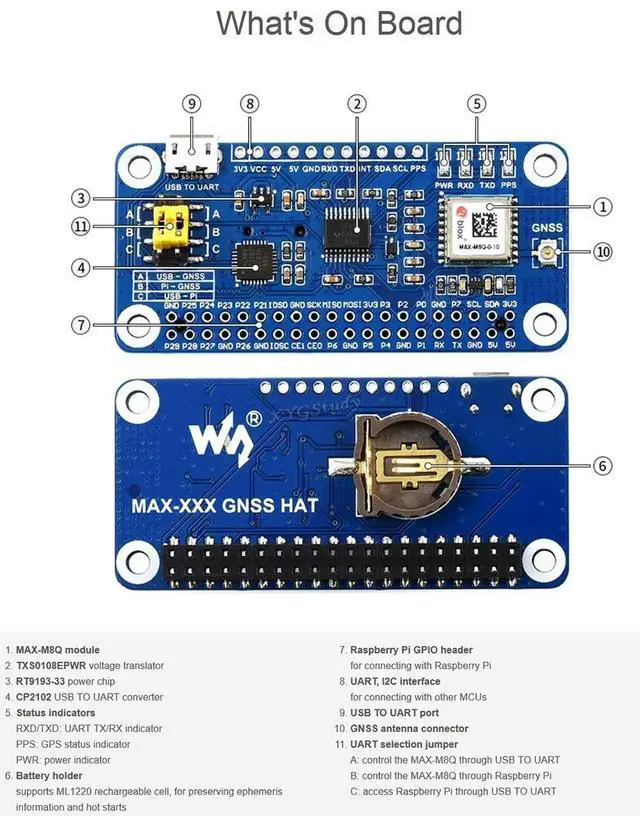

OverviewThis is a Raspberry Pi GNSS HAT based on MAX-M8Q with multi-constellation receiver support, which means up to 3 types of GNSS satellite systems can be used together, including GPS, Beidou, Galileo, and GLONASS. It also support augment systems like SBAS, QZSS, IMES, and D-GPS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on. FeaturesMulti-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumptionAugment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service locationA-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivityFeatures -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencingSupports U-Center, an easy way to config the moduleStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoOnboard USB TO UART converter CP2102 for serial debuggingBreakouts the module's UART and I2C interface, for connecting with host boards like
Arduino/STM32Baudrate range: 4800~921600bps (9600bps by default)

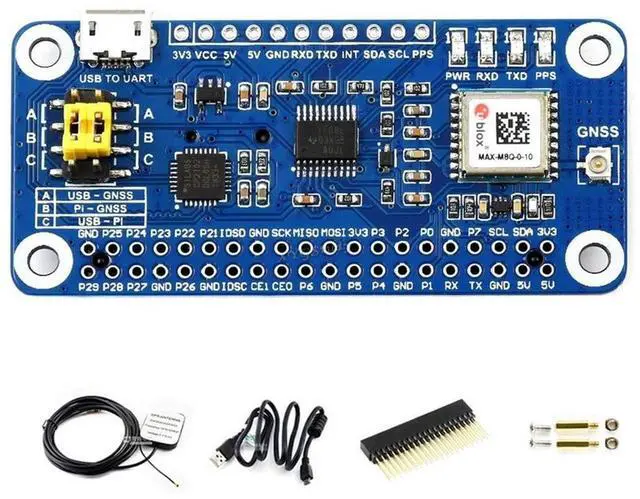

Supports DDC (I2C compliant) interface: up to 400KHz (max) Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts4x LEDs for indicating the module operating statusPackage ContainsMAX-M8Q GNSS HAT x1GPS External Antenna (B) x1USB-A to Micro-B cable x1RPi screws pack (2pcs) x12x20PIN female header x1For more resources you may need, pls contact me via message, i will send you then via attachment.
