Benewake TF02-Pro LiDAR Sensor - IP65 LiDAR Rangefinder 40m Laser Radar with Strong Light Resistance for UAVs and Smart Traffic Systems (UART/I2C/IO)
- Long-Range Detection: Measures distances from 0.05m to 40m (90% reflectivity) and up to 13.5m (10% reflectivity), even under 100Klux ambient light.
- High Accuracy: 5cm (0.055m), 1% (540m), with a resolution of 1cm and repeatability of <2cm.
- Ultra-Fast Response: Frame rate up to 1000Hz for real-time monitoring.
- Robust Design: IP65 protection, operating temperature -20C to 60C, and durable PC/ABS enclosure.
- Multi-Interface Support: I/O ,UART (default 115200 baud) and IC (400kbps) protocols for flexible integration.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

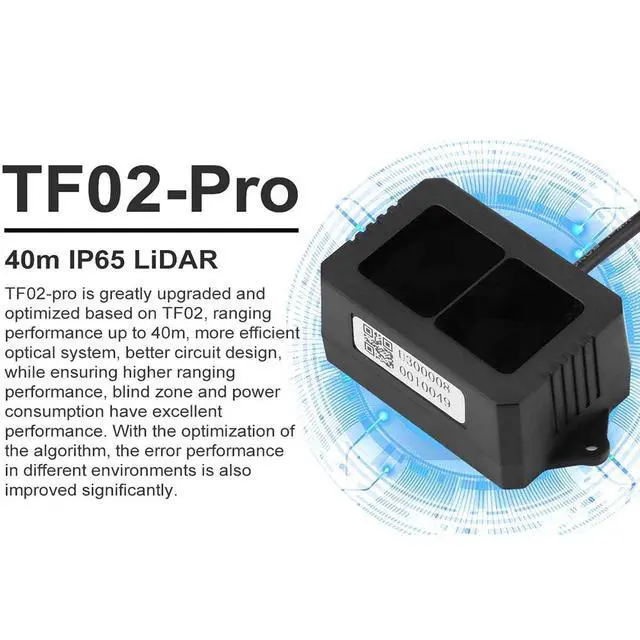

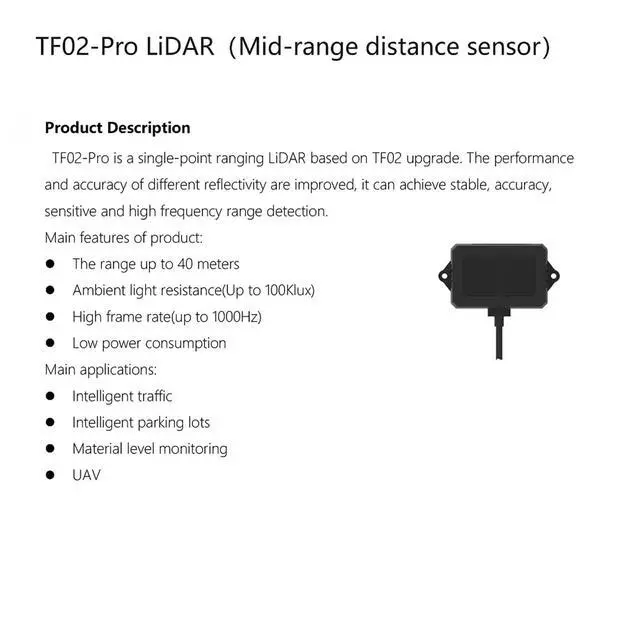

Product DescriptionThe TF02-Pro is an upgraded single-point LiDAR sensor designed for stable, accurate, and high-frequency ranging in demanding environments. Its anti-interference capability ensures reliable performance under strong ambient light (up to 100Klux), making it ideal for industrial and commercial applications.
Applications: Smart
Traffic Systems: Vehicle detection, toll collection, and parking management.
Material Level Monitoring: Bulk solid/liquid measurement in silos or containers.
UAV Navigation: Obstacle avoidance and altitude control.
Smart Parking: Space occupancy detection and guidance.

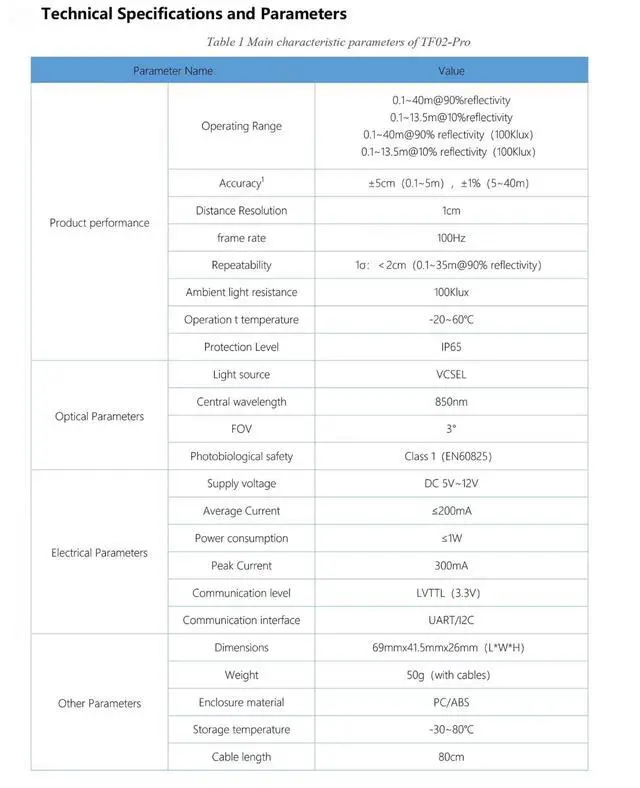

Technical SpecificationsRange: 0.0540 m (90% reflectivity), 0.0513.
5m (10% reflectivity)Accuracy: 5cm ( 0.055 m), 1% (540m)
Frame Rate: Adjustable 11000Hz (default 100Hz)
FOV: 3Power
Supply: DC 5V12V, 1W
power consumptionCommunication: UART (8 data bits, 1 stop bit, no parity) / IC (slave mode, address 0x10), I/ODimensions: 69mm 41.5 mm 26mm (LWH), 50g (with cable)
Certification: EN60825 Class 1 (Eye-safe)Easy
Integration & ConfigurationPlug-and-Play: Pre-calibrated with default settings for immediate use.
Configurable Parameters: Adjust frame rate, baud rate, output format (HEX/string), and I/O mode via simple commands.
Software Support: Free PC software for real-time data visualization and parameter tuning.
Firmware Upgradable: Remote updates via Benewakes dedicated tool. Package Includes1 TF02-Pro LiDAR Sensor1 80cm
Cable (Red: 5V+, White: RXD/SDA, Green: TXD/SCL, Black: GND)Access to Software & Technical Support
Applications: Smart
Traffic Systems: Vehicle detection, toll collection, and parking management.
Material Level Monitoring: Bulk solid/liquid measurement in silos or containers.
UAV Navigation: Obstacle avoidance and altitude control.
Smart Parking: Space occupancy detection and guidance.
Technical SpecificationsRange: 0.0540 m (90% reflectivity), 0.0513.
5m (10% reflectivity)Accuracy: 5cm ( 0.055 m), 1% (540m)
Frame Rate: Adjustable 11000Hz (default 100Hz)
FOV: 3Power
Supply: DC 5V12V, 1W
power consumptionCommunication: UART (8 data bits, 1 stop bit, no parity) / IC (slave mode, address 0x10), I/ODimensions: 69mm 41.5 mm 26mm (LWH), 50g (with cable)
Certification: EN60825 Class 1 (Eye-safe)Easy
Integration & ConfigurationPlug-and-Play: Pre-calibrated with default settings for immediate use.
Configurable Parameters: Adjust frame rate, baud rate, output format (HEX/string), and I/O mode via simple commands.
Software Support: Free PC software for real-time data visualization and parameter tuning.
Firmware Upgradable: Remote updates via Benewakes dedicated tool. Package Includes1 TF02-Pro LiDAR Sensor1 80cm
Cable (Red: 5V+, White: RXD/SDA, Green: TXD/SCL, Black: GND)Access to Software & Technical Support
