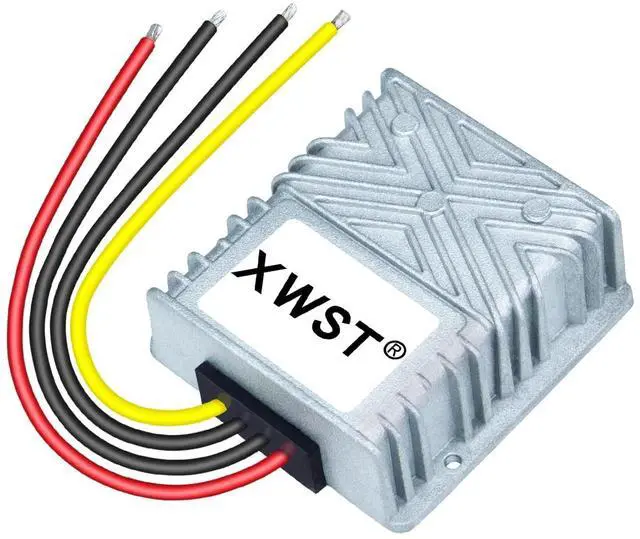

DC DC Stabilizer 30V-72V to 48V Boost Buck Converter 8A 384W Waterproof Voltage Regulator 48Volt Power Module for Golf Cart Car Audio Solar Power System LCD LED Display Screen(XW-3072-48-8A-N)

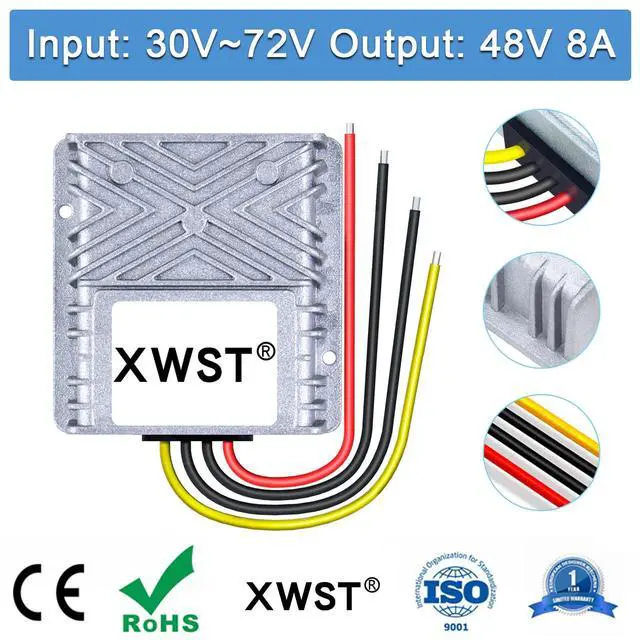

- PARAMETER --- XWST DC-DC converter input voltage range is DC 30~72V (48V); output voltage is DC48V; output current is 8A; output power is 384W.
- APPLICATION --- the 48v buck boost converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
- PROTECTION --- this voltage stabilizer comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
- FEATURE --- the stabilizer power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
XWST DCDC Power Supply Stabilizer Module Technical Specification: Input
Voltage: DC 30V~72V (48V)
Output Voltage: DC 48VOutput
Current: 8AOutput
Power: 384WConversion
Efficiency: >93%No Load
Voltage Range: Set voltage 3%Load
Regulation: 3%Quiescent
Power Dissipation: <10mAOperating
Temperature: -25~65Storage
Temprature: -30~80Operating
Humidity: 10%~90%Waterproofing
Grade: IP67Over-current
Protection: YesOver-temperature
Protection: YesShort-circuit
Protection:

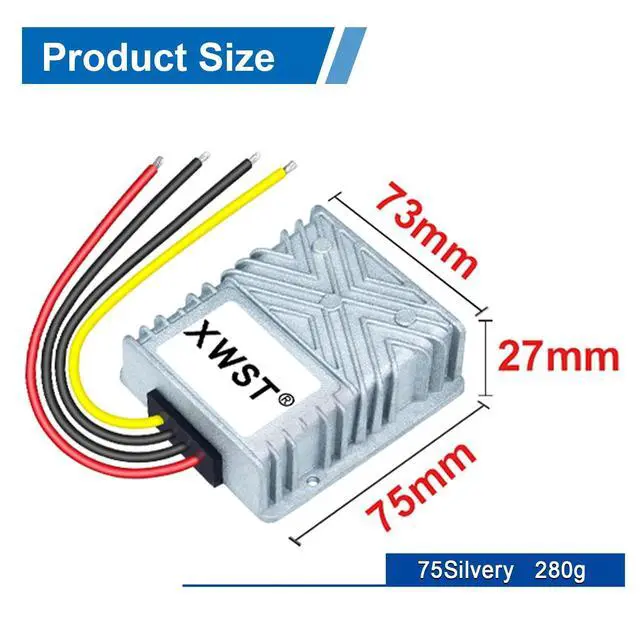

NoSize: 75mm x73mm x 27mmNet
Weight:
280gMaterial: aluminium

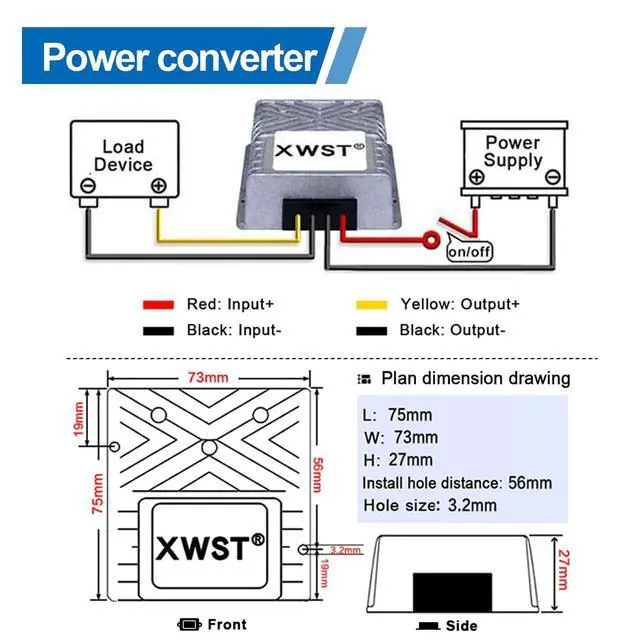

shellNote: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included: 1x DC-DC Stabilizer
Voltage: DC 30V~72V (48V)
Output Voltage: DC 48VOutput
Current: 8AOutput
Power: 384WConversion
Efficiency: >93%No Load
Voltage Range: Set voltage 3%Load
Regulation: 3%Quiescent
Power Dissipation: <10mAOperating
Temperature: -25~65Storage
Temprature: -30~80Operating
Humidity: 10%~90%Waterproofing
Grade: IP67Over-current
Protection: YesOver-temperature
Protection: YesShort-circuit
Protection:
NoSize: 75mm x73mm x 27mmNet
Weight:
280gMaterial: aluminium
shellNote: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included: 1x DC-DC Stabilizer
