$116.99
Meet Your Seller

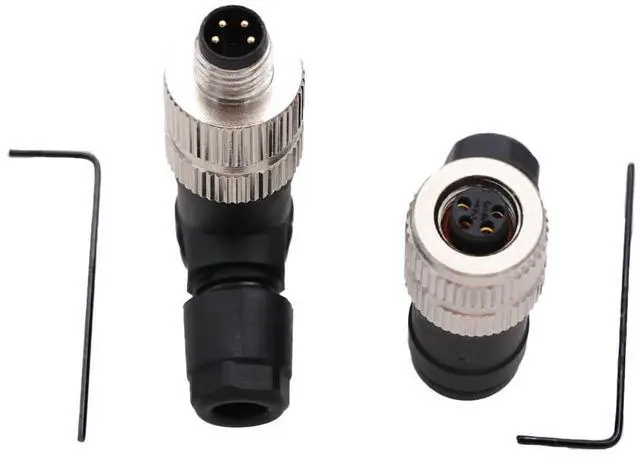

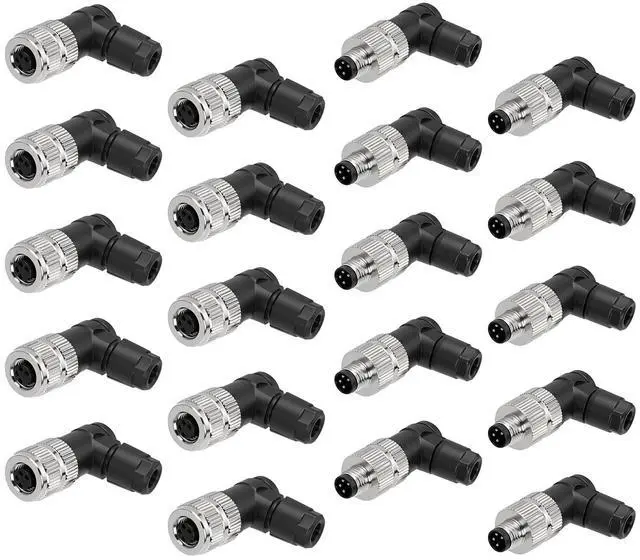

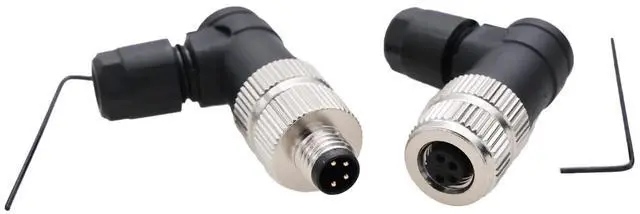

ZBLZGP M8 4 Pin Sensor Connector Waterproof Male Female Plug Straight Angle Screw Threaded Coupling Aviation Plug Socket Sensor Power Cord for Industrial Equipment 10Pack

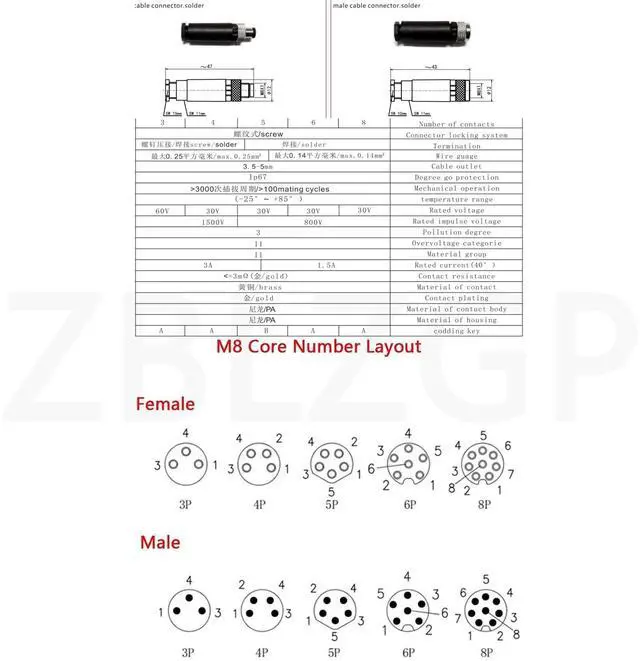

- M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
- Rated Current1.5A/2A/3A/4A.Rated Voltage30V for 5/6/8 pin60V for 3/4 pin.Protection levelIP67/IP68 waterproof.Contact Resistance10m.Mechanical Operation>500 mating cycles.
- Screw/Nut MaterialBrass with nickel plated.Contact MaterialPhosphorus copper with gold plated.Temperature Range: -25C ~ + 85C.
- Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
- The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8* 1.0 screw locking circular connector. ^^ Rated Current 1.5A /2A/3A/4A. Rated Voltage30V for 5/6/8 pin60V for 3/4 pin. Protection levelIP67/IP68 waterproof. Contact Resistance10m. Mechanical Operation>500 mating cycles. ^^ Screw/Nut MaterialBrass with nickel plated. Contact MaterialPhosphorus copper with gold plated.
Temperature Range: -25C ~ + 85C. ^^ Easy quick connect and disconnect coupling; Shield and un-shield Version Available with metal or plastic housing. ^^ The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
Temperature Range: -25C ~ + 85C. ^^ Easy quick connect and disconnect coupling; Shield and un-shield Version Available with metal or plastic housing. ^^ The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
