    AHD 1080P Vehicle Backup Camera with Monitor Kit,18LED IR Night Vision 4 Pin Reverse Rear View Mirror Camera + 7" Car LCD Monitor Parking System 12V-24V with 49ft Cable for Long Bus Truck Trailer RV

    Be the first to review this product...
    • AHD 1080P Hard Wired Version Reversing Camera KitAHD 7 inch car ips Monitor and AHD 1080P 18 IR LED Night Vision Reversing Rear View Mirror Camera
    • Support 12V-24V Vehicle Long Bus Truck Trailer Tractor RV Van Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Duty,
    • 7 inch AHD 1080P IPS Monitor high resolution image,full color display and low power consumption,adjustable brightness,contrast and color.2 channel video input,V1/V2 button switch,2 connect plug,V2 is remote by Blue wire for reversing use priority, Monitor will automatically switch for V2 when the reversing gear is selected (reversing trigger connected) Come with Butterfly bracket and Pillow Frame
    • 18 LED AHD 1080P Reversing camera IP 68 waterproof,build with Aluminum alloy casing, more sturdy and durable than others plastic casings,4 Pin Connector 18 LED infrared lights Night Vision clearly Mirror view at night (No Grid Lines) Rear View Camera (145horizontal wide view angle ) 180vertical adjustable angle
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

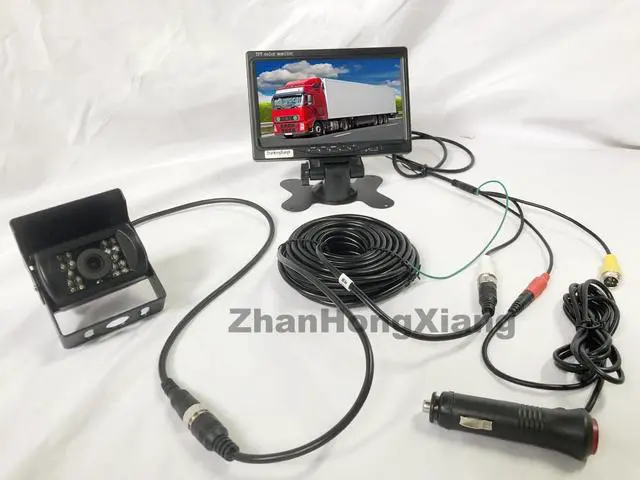

    This is AHD 1080P 4pin Reversing camera Monitor systemonly need to connect the monitor power wire with car electronics system: Red wire to car Positive/Live, Black wire to GND, (or use the car charger get power directly ) Green/Blue wire to reversing gear Trigger+ (or No need to connect) Simple to install easy to useThis rear view Camera monitor kit supports reversing used or permanently usedAHD 7 inch Car IPS Monitor DC 12V-24VDisplay
    Size: 7.0
    InchResolution:
    1024*600System: PAL/NTSC
    AutoVideo signal format: AHD
    1080PPower requirement: DC
    12V-24VConsumption:
    6WVideo: 2 channel video inputV1/V2 switch, (V2 for reversing parking reverse rear view priority)
    Net Weight: Approx. 743gAHD 1080P 18 IR LED Car Rear View CameraImage sensor: AHD 1080P mirror image without
    Grid LinesTV system: PAL for UK EU, NTSC for US CA other country please contact usLens: 2.5 mm (145+ Wide View angle )Number of pixels: 2.0 MP
    Camera (1920*1080) Horizontal Resolution: 1000+
    TV LinesVideo signal format: AHD
    1080PScan frequency: 50Hz-60HzS/N
    Ratio: 48dB (AGC
    OFF) Minimum illumination: 0 LUX
    Backlight compensation: AutoWhite
    Balance: Auto TracingAuto
    Gain Control: AutomaticNight
    vision: YesVideo
    Output: 1.0V p-p. 1.5.
    4Pin ConnectorSynchronous System: International
    Synchronizationwork Temperature: -20C~+60CPower
    Requirement: DC
    12V-24VWeight: Approx
    300gWaterproof: IP 68
