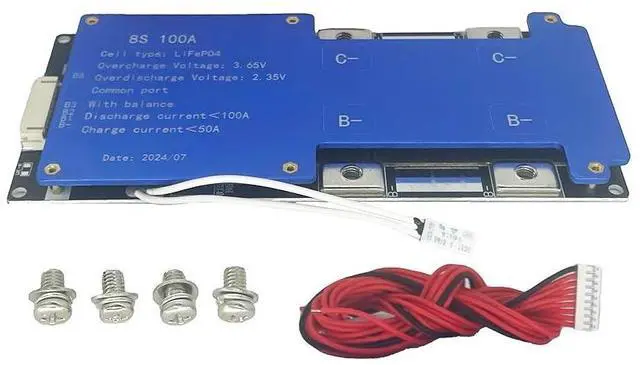

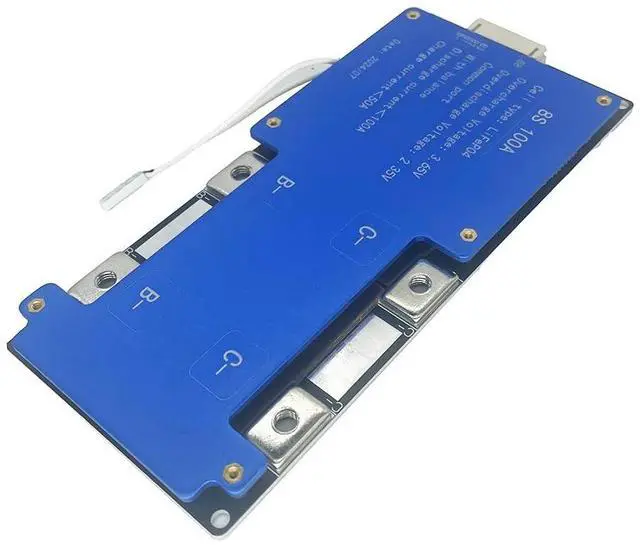

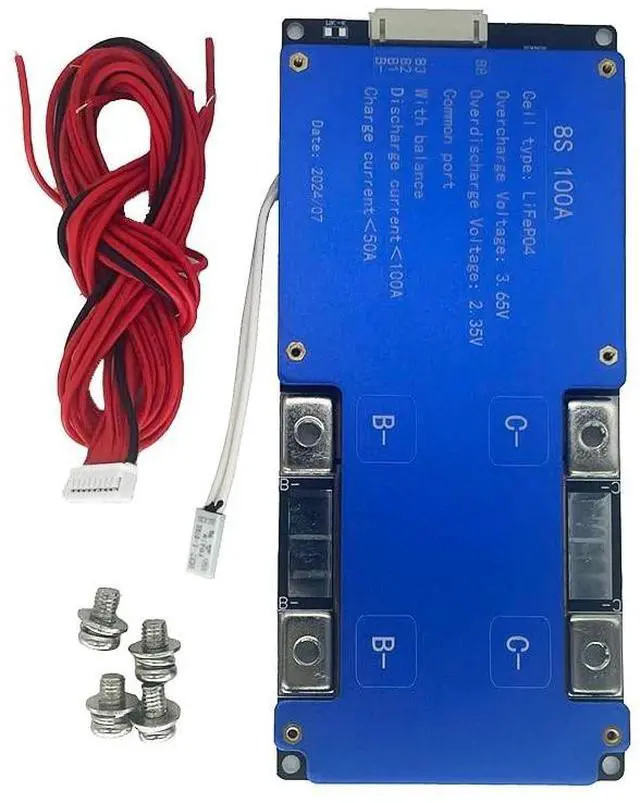

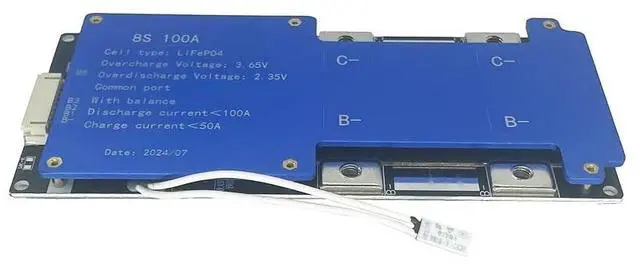

8S 100A DC24V BMS LiFePO4 Battery Balance Charge Board NTC Temperature Protection Equalizer
- Voltage :DC24V Discharge current :100a Charging current (same port):50a Internal resistance of main circuit conduction :5mq Discharge overcurrent protection :600+ 10a Power consumption :40ua Hibernation overdischarge power consumption :10ua
- High quality MOS tube with low internal resistance, all aluminum material, fast heat dissipation
- When any series of battery cells or wires in the battery pack fault short circuit can disconnect the output power protection battery pack
- Overcharge protection, balance protection, over discharge protection, over current protection, short circuit protection, electrostatic protection, weak current switch
- [Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not support), we will give you a perfect solution.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
High quality MOS tube with low internal resistance, all aluminum material, fast heat dissipationWhen any series of battery cells or wires in the battery pack fault short circuit can disconnect the output power protection battery packOvercharge protection, balance protection, over discharge protection, over current protection, short circuit protection, electrostatic protection, weak
current switchVoltage: DC24VDischarge
current: 100aCharging
current (same port): 50aInternal resistance of main circuit conduction: 5mqDischarge
overcurrent protection: 600+
10aPower consumption: 40uaHibernation
overdischarge power consumption:
10uaParameters: Overcharge
protection: Detection
voltage: 3.65
+ 0.025 vDetection delay: 1000+
500msRelease voltage: 3.5
+ 0.05 vOverdischarge protection: Detection
voltage: 2.35
+ 0.1 vDetection delay: 1000+
500msRelease voltage: 2.7
+ 0.1 vBalance protection: Detection
voltage: 3.5
+ 0.025 vDetection delay: 100+
50msBalance current: 70+
5maOvercurrent protection: Detection
voltage: 50+
15mvDetection delay: 1000+
500msCurrent protection: 600+
100aShort circuit protection: Trigger
condition: External
short circuitDetection delay: 350usRelease
condition: The load is disconnectedPackage
Included: 1*8S 100A DC24V BMS LiFePO4 Battery Balance Charge Board
