youyeetoo X1S - N5095 x86 Windows Linux Single Board Computer - Mini PC Dual 4K Media Server-Dual M.2 Slots Support 2280 NVMe mSATA SSD/WiFi 6 Moudle PCIE 3.0,NFC (X1S(8GB RAM+128GB eMMC))
- [Small and Power Geek] youyeetoo X1 is a very cost-effective X86 single board computer for Industrial control, Makers, DIYers and geeks. Powered by Intel 11th Gen 4 Core CPU N5095 (up to 2.80GHz), the size only 115*75mm, just the size of your palm.As small servers, edge computing, smart centres.
- [WIKI]http(s)://wiki.youyeetoo.com/en/x1; [Package Includes] 1x youyeetoo X1, 1x Active Cooling Fan (Assembled), 1x 12V/3A (5525) Power Adapter. If you have any question, please feel free to click "youyeetoo" to ask or mail am2#youyeetoo.com (#>>@).
- [Dual 4K HDR and 3-Way Video Output] Including HDMI 2.0, Mirco HDMI 2.0, and MIPI-DSI. One for office, one for entertainment, and one for personalisation. Daily work, entertainment, DIY can be easily satisfied.
- [Wireless Networks] M.2 E key extension. Support WIFI(2.4G/5G)+Bluetooth dual-band. Adapted WIFI5+BT5.0, WIFI6+BT5.2.Support 4G LTE. Extreme scalability allows you to surf the web wirelessly both indoors and outdoors.
- [LAN and PoE
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The youyeetoo X1 is an x86 single board computer (mini pc) with an 11th Gen 4 Core Intel Celeron N5095. Multiple RAM and storage sizes are available, with support for M. 2 extended wifi, 4G LTE, and SSD. The right configuration can be matched to your project needs. Whether you are a DIY manufacturer, IoT developer, system integrator, or solution provider, you can always find what you want. Mainly for industrial, IoT, automation, robotics, and other industries. If you have any questions, please email us by clicking on the "youyeetoo" or contact us with the youyeetoo official site, We are always listening to you.
-Tutorials-youyeetoo team has provided a comprehensive tutorial [wiki. youyeetoo. com] and created a community [forum. youyeetoo. com] for the X1. You can easily learn how to use UART, SPI, MIC, and GPIO on Windows through the tutorials and exchange ideas with the community.
-Key Spec-CPU: 11th Gen 4 Core Intel Celeron N5095(Up to 2.8 GHz), 10nm, 10 TDP
Graphics Intel UHD GraphicsRAM: 4GB, 8GB, 16GB
LPDDR4Storage: 0, 64GB, 128GB, 256GBSupport TF card, M. 2 M key 2280 NVMe/mSATA SSD, SATA 3.0 via FPC.
Video: 4K@60fps (HDMI 2.0, mirco
HDMI 2.0 ) 1080P (MIPI-DSI)Audio: 3.5 mm Jack, 8 SPK 2PIN3W, MIC
Networking: WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via M. 2 2230 E key, 1 GbE LAN.

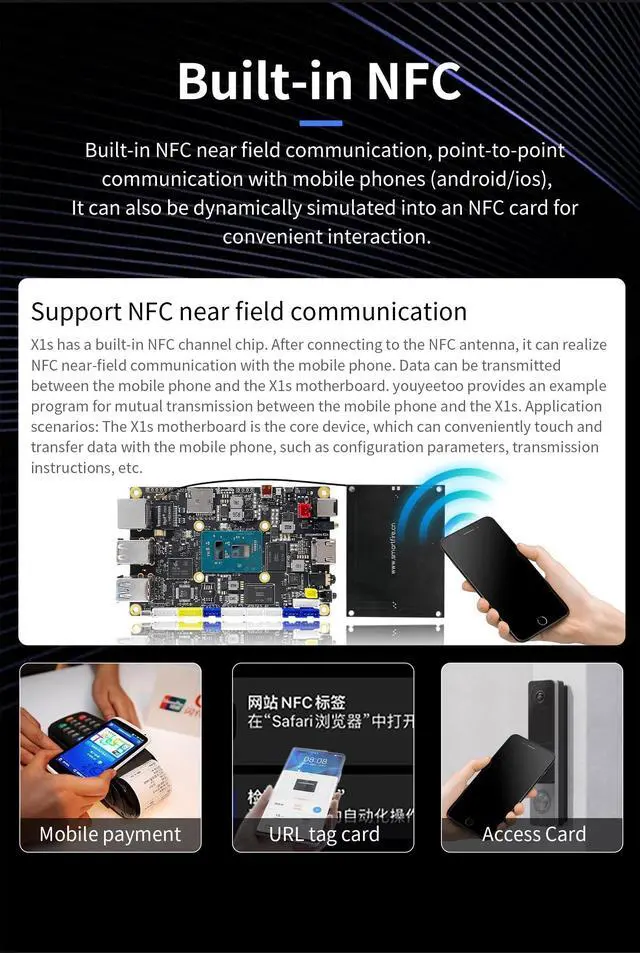

Other: USB 3.0, USB 2.0, UART, GPIO, IIC, SPI, RTC, NFCOS: Windows 10 / 11, Linux.

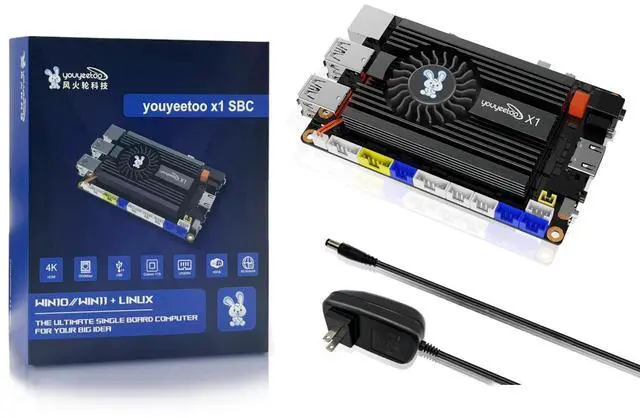

Size: 115mm x 75mm x 20 mmPower: 12V 3A via DC Power (5525) / PH-2A 2.54 mm, 24W PoESupports Wake on Call. -Shipping Listing-1* youyeetoo X11* 12V 3A DC Power Supply (5525) 1* Active Cooling Fan (Assembled)
-Tutorials-youyeetoo team has provided a comprehensive tutorial [wiki. youyeetoo. com] and created a community [forum. youyeetoo. com] for the X1. You can easily learn how to use UART, SPI, MIC, and GPIO on Windows through the tutorials and exchange ideas with the community.
-Key Spec-CPU: 11th Gen 4 Core Intel Celeron N5095(Up to 2.8 GHz), 10nm, 10 TDP
Graphics Intel UHD GraphicsRAM: 4GB, 8GB, 16GB
LPDDR4Storage: 0, 64GB, 128GB, 256GBSupport TF card, M. 2 M key 2280 NVMe/mSATA SSD, SATA 3.0 via FPC.
Video: 4K@60fps (HDMI 2.0, mirco
HDMI 2.0 ) 1080P (MIPI-DSI)Audio: 3.5 mm Jack, 8 SPK 2PIN3W, MIC
Networking: WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via M. 2 2230 E key, 1 GbE LAN.
Other: USB 3.0, USB 2.0, UART, GPIO, IIC, SPI, RTC, NFCOS: Windows 10 / 11, Linux.
Size: 115mm x 75mm x 20 mmPower: 12V 3A via DC Power (5525) / PH-2A 2.54 mm, 24W PoESupports Wake on Call. -Shipping Listing-1* youyeetoo X11* 12V 3A DC Power Supply (5525) 1* Active Cooling Fan (Assembled)
