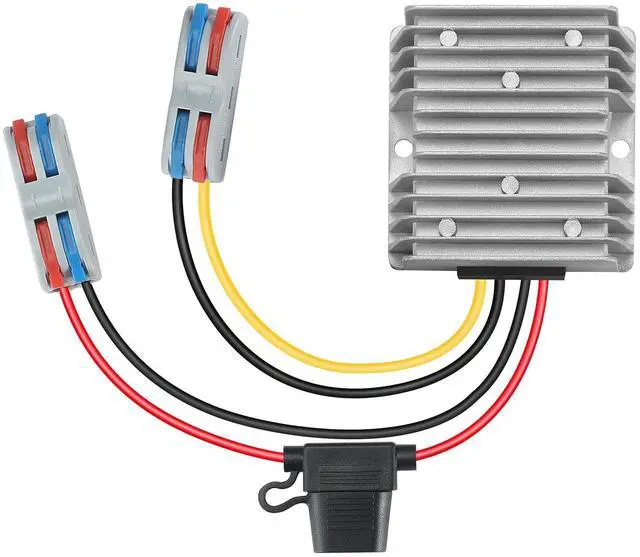

YBBOTT 10A 240W DC 36V 48V Step Down to 24V Buck Converter Waterproof Power Transformer with Fuse Supply for Golf Cart Car Truck Volt
- Power Converter: DC 30V-60V to DC 24V 10A power converter with stable performance and conversion efficiency above 95%; Durable and better heat protection; The internal gluing and aluminum alloy outer box, with excellent fluidity
- Parameter Introduction: Input voltage range: 30V to 60V; Output voltage: 24V; Output current: 10A; Maximum output power: 240W; Small Size and easy to place in any applications; The converter is shockproof, waterproof, dustproof, stable and reliable quality
- Intelligent Protection: Supports output short circuit protection, overcurrent protection, waterproof IP68 protection and overtemperature protection; Operating temperature - 20 to 65, when the working environment temperature 40, in order to extend the service life of the power supply, please use the rated output current 40%

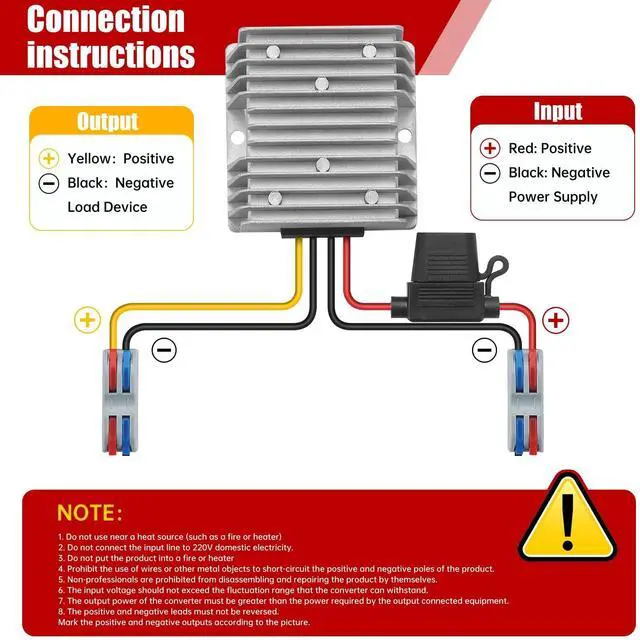

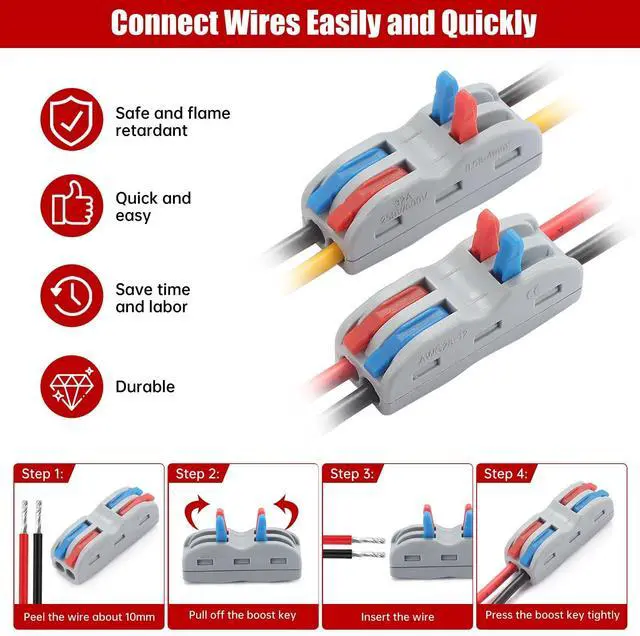

- Easy to Install: Peel the wire about 10 mm, pull of the boost key 90MAX, insert the wire, press the boost key tightly; The converter has a red, yellow and black wire, the red and y
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

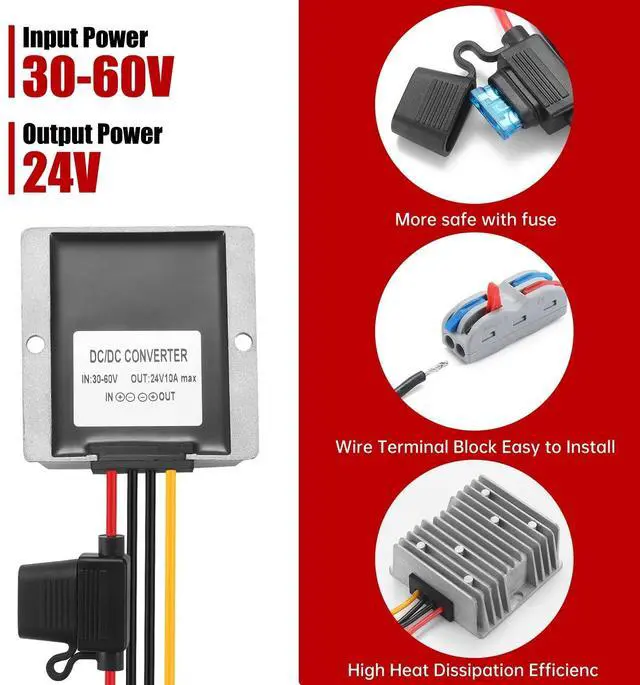

ABOUT 30V-60V to 24V 10A 240W POWER CONVERTER
Input range: 30V
to 60VTransfer efficiency: 95%Output
voltage:
24VOutput: 10A MAX
Maximum output: 240W MAX
Working temperature: -20-65Storage
temperature: -40-85Working
humidity: 10%-90%
RHWaterproof classification: IP67Short-circuit
protection: YES
Overtemperature protection: YES
Overcurrent protection: YES
Anti-connection protection: YES
Heat dissipation method: Natural heat dissipationATTENTION1. The products are stored in a dry and cool place with a temperature between 40 and 80, avoiding contact with corrosive substances and staying away from flames and heat sources2. Do not use the device near a heat source, such as a fire or heater3. Do not connect the input line to 220V electricity4. Do not put the product in a fire or heat it5. Do not short the positive or negative poles of the product with wires or other metal objects6. It is forbidden for non professional personnel to disassemble and repair the product by themselves
Input range: 30V
to 60VTransfer efficiency: 95%Output
voltage:
24VOutput: 10A MAX
Maximum output: 240W MAX
Working temperature: -20-65Storage
temperature: -40-85Working
humidity: 10%-90%
RHWaterproof classification: IP67Short-circuit
protection: YES
Overtemperature protection: YES
Overcurrent protection: YES
Anti-connection protection: YES
Heat dissipation method: Natural heat dissipationATTENTION1. The products are stored in a dry and cool place with a temperature between 40 and 80, avoiding contact with corrosive substances and staying away from flames and heat sources2. Do not use the device near a heat source, such as a fire or heater3. Do not connect the input line to 220V electricity4. Do not put the product in a fire or heat it5. Do not short the positive or negative poles of the product with wires or other metal objects6. It is forbidden for non professional personnel to disassemble and repair the product by themselves
