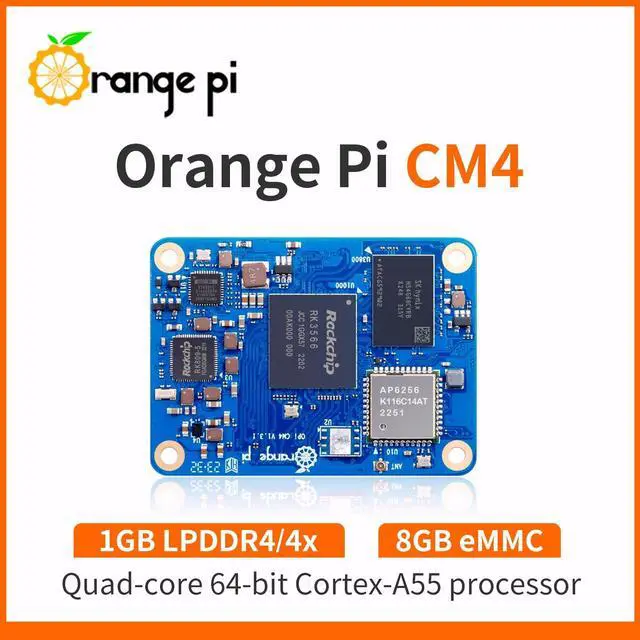

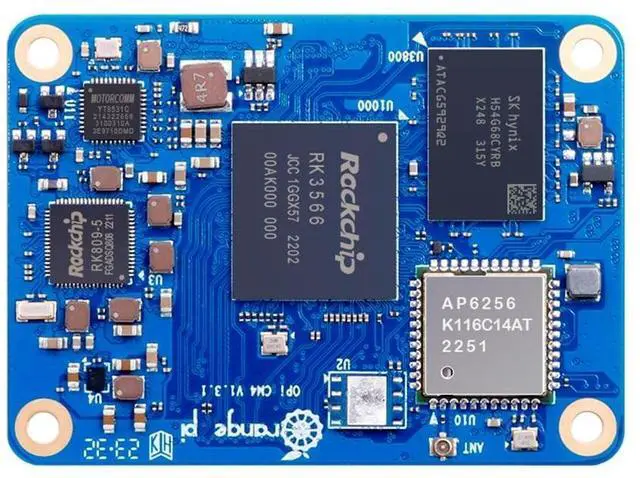

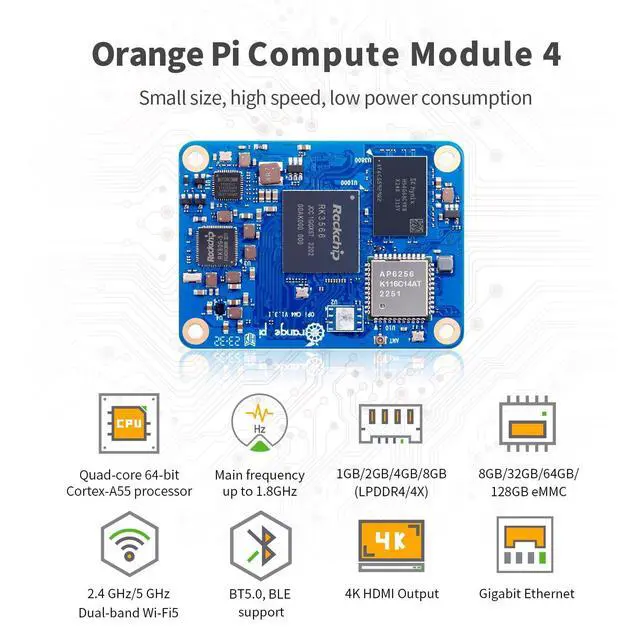

Orange Pi CM4 1GB/2GB/4GB/8GB LPDDR4/4x Rockchip RK3566 4-Core Single Board Computer with eMMC Flash Onboard, Wi-Fi & Bluetooth, Compute Module 4 Core Board Run Android/Debian/Ubuntu (1GB+8GB)
- [Compact & Powerful Compute Module]: Orange Pi Compute Module 4 is designed for embedded and industrial applications, delivering high performance in a compact form factorideal for space-constrained projects and custom hardware integration.
- [Integrated AI NPU Acceleration]: Built-in RKNN NPU provides up to 0.8 TOPS (INT8) AI computing power. Supports major AI frameworks including TensorFlow, PyTorch, ONNX, Caffe, and moreenabling fast deployment of edge AI applications.
- [Flexible Storage & Connectivity Options]: Supports multiple eMMC storage configurations and optional wireless modules. With rich interfaces, it is widely applicable in Industrial IoT, smart devices, embedded systems, and edge computing solutions.

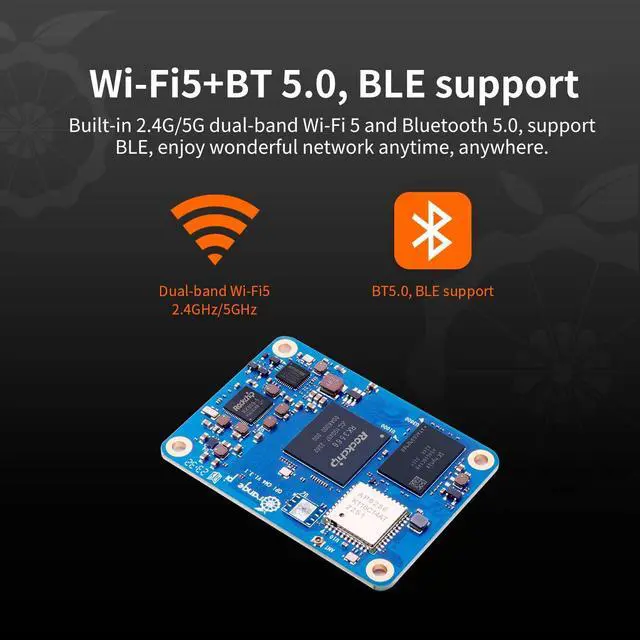

- [Seamless Connectivity]: Built-in dual-band 2.4G/5G Wi-Fi and Bluetooth 5.0 provide reliable wireless connectivity, ensuring stable and fast network connections anytime, anywhere.
- [Comprehensive Interface Support]: Orange Pi Compute Module 4 offers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SoCRockChip RK3566 CPU: Quad-core 64-bit Cortex-A55 processor22nm advanced process, up to 1.8GH z main frequency
GPU: ARM Mali G52 2EE graphics processor Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1 Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance
Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet VPU: 4K@60fps H. 265/H. 264/VP9 video decoding 1080P@100fps H. 265video encoding 1080P@60fps H.
264 video encoding PMU: RockChip
RK809-5 RAM: 1GB/2GB/4GB/8GB(LPDDR4/4x)
Memory: On-board
eMMC: 8GB/32GB/64GB/128GB
SPI Flash: default empty post
Wi-Fi + Bluetooth: Wi-Fi 5+BT 5.0BLE (20U5622)
Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board
PHY chip: YT8531C)
Interface: 100Pin*2, 24Pin*1, contains
the following signals: 10/100/1000Mbps Ethernet MDI signals 1* HDMI 2.0 interface up to 4K@60fps 1* 2-lane MIPI DSI display
Interface: 1* 4-lane MIPI DSI display interface Embedded Display Port (eDP) 1* 4-lane MIPI CSI camera interface SATA3 or PCIeUSB 3.0 *1+USB 2.0 *3 RESET, MASKROM, RECOVERY Headphone jack Audio input and output signals DC 5V input power supply, DC 3.3V and 1.8V output power supply
Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB: 55X40mm
Weight: 12g
GPU: ARM Mali G52 2EE graphics processor Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1 Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance
Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet VPU: 4K@60fps H. 265/H. 264/VP9 video decoding 1080P@100fps H. 265video encoding 1080P@60fps H.
264 video encoding PMU: RockChip
RK809-5 RAM: 1GB/2GB/4GB/8GB(LPDDR4/4x)
Memory: On-board
eMMC: 8GB/32GB/64GB/128GB
SPI Flash: default empty post
Wi-Fi + Bluetooth: Wi-Fi 5+BT 5.0BLE (20U5622)
Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board
PHY chip: YT8531C)
Interface: 100Pin*2, 24Pin*1, contains
the following signals: 10/100/1000Mbps Ethernet MDI signals 1* HDMI 2.0 interface up to 4K@60fps 1* 2-lane MIPI DSI display
Interface: 1* 4-lane MIPI DSI display interface Embedded Display Port (eDP) 1* 4-lane MIPI CSI camera interface SATA3 or PCIeUSB 3.0 *1+USB 2.0 *3 RESET, MASKROM, RECOVERY Headphone jack Audio input and output signals DC 5V input power supply, DC 3.3V and 1.8V output power supply
Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB: 55X40mm
Weight: 12g
