Mesh Node T114 Low Power nRF52840 SX1262 LoRa Node Development Board with 1.14 inch TFT-LCD Display Compatible with Meshtastic LoRaWAN for Arduino
- Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262 and supports LoRa and Bluetooth 5.0. Compatible with Arduino
- With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as Meshtastic
- Integrates various power interfaces (5V USB, lithium battery, and solar panel), has powerful long-distance communication capabilities, scalability, and low power design
- Onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors

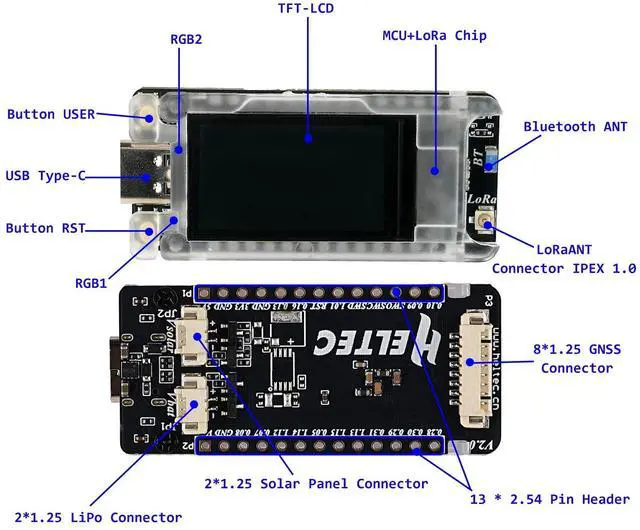

- Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures

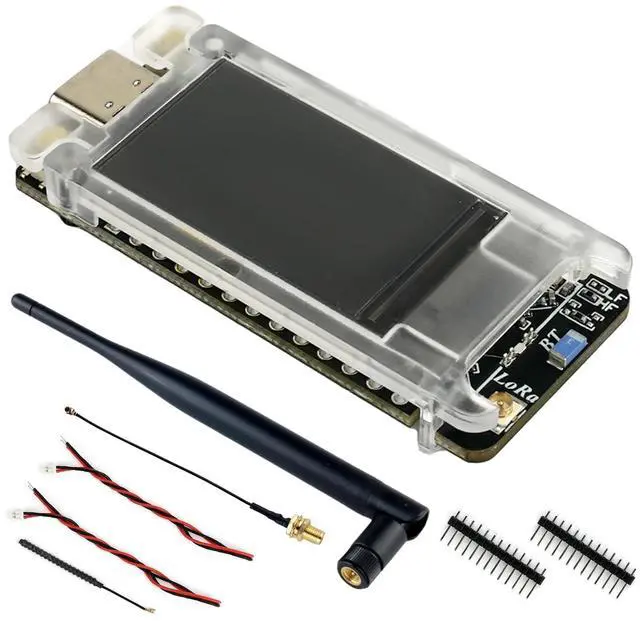

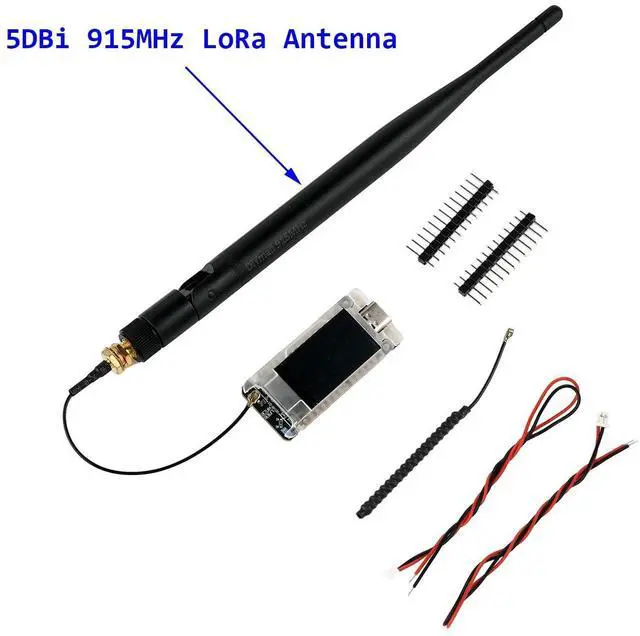

- What you will get: 1 x Mesh Node T114 + 1 x LoRa Antenna + 1 x 5DBi 915MHz LoRa A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SpecificationsMCU: nRF52840LoRa
Node Chip:
SX1262Frequency: 863~928MHZ
Max.
TX Power: 211dBmMax.
Receiving sensitivity: -135dBm@SF12
BW=125KHzBluetooth: Bluetooth
LE: Bluetooth 5,

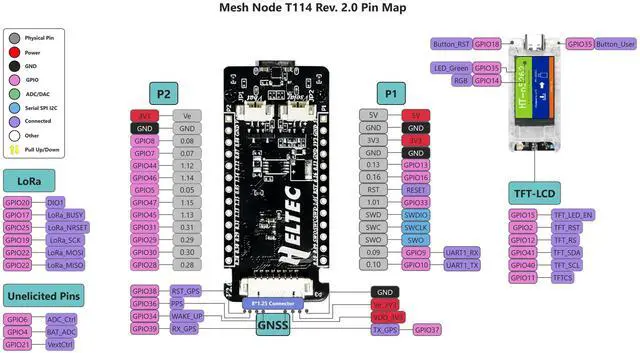

Bluetooth meshHardware Resource: USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.
Memory: 1M ROM; 256KB SRAM
Interface: Type-C USB2* 1.25 lithium battery connector2* 1.25 solar panel connectorLoRa ANT (IPEX 1.0 )8* 1.25 GPS module connector2*13* 2.54
Header PinBattery: 3~ 4.2V battery power supply and charge.
Operating Temperature: -20 ~ 70
Dimensions: 50.80

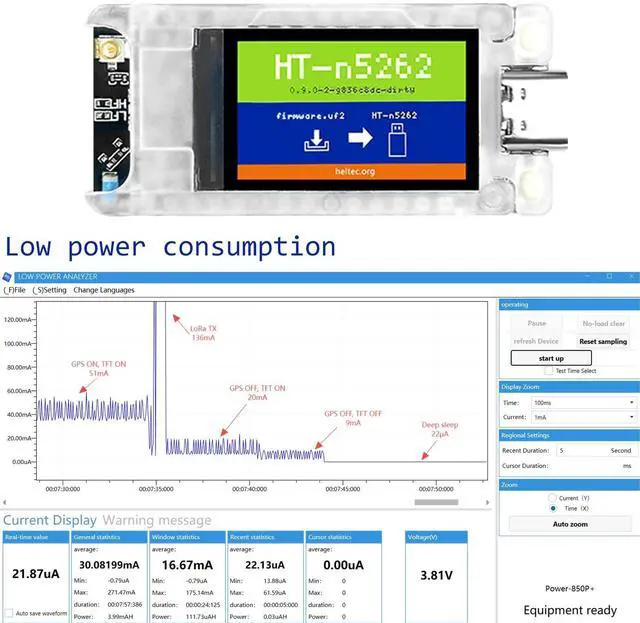

* 22.86 mmElectrical characteristics: Deep
Sleep: ~11uATracker
mode sleep: ~22uAGPS OFF, TFT
OFF: ~9mAGPS OFF, TFT
ON: ~20mAGPS ON, TFT
ON:
~51mADisplay: onboard 1.14 inch
TFT-LCD displayPackage includes: 1 x Mesh Node T1141 x LoRa Antenna1 x 5DBi 915MHz LoRa Antenna2 x SH 1.252 Battery Connector2 x 2.54 *13 Header Pin
Node Chip:
SX1262Frequency: 863~928MHZ
Max.
TX Power: 211dBmMax.
Receiving sensitivity: -135dBm@SF12
BW=125KHzBluetooth: Bluetooth
LE: Bluetooth 5,
Bluetooth meshHardware Resource: USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.
Memory: 1M ROM; 256KB SRAM
Interface: Type-C USB2* 1.25 lithium battery connector2* 1.25 solar panel connectorLoRa ANT (IPEX 1.0 )8* 1.25 GPS module connector2*13* 2.54
Header PinBattery: 3~ 4.2V battery power supply and charge.
Operating Temperature: -20 ~ 70
Dimensions: 50.80
* 22.86 mmElectrical characteristics: Deep
Sleep: ~11uATracker
mode sleep: ~22uAGPS OFF, TFT
OFF: ~9mAGPS OFF, TFT
ON: ~20mAGPS ON, TFT
ON:
~51mADisplay: onboard 1.14 inch
TFT-LCD displayPackage includes: 1 x Mesh Node T1141 x LoRa Antenna1 x 5DBi 915MHz LoRa Antenna2 x SH 1.252 Battery Connector2 x 2.54 *13 Header Pin
