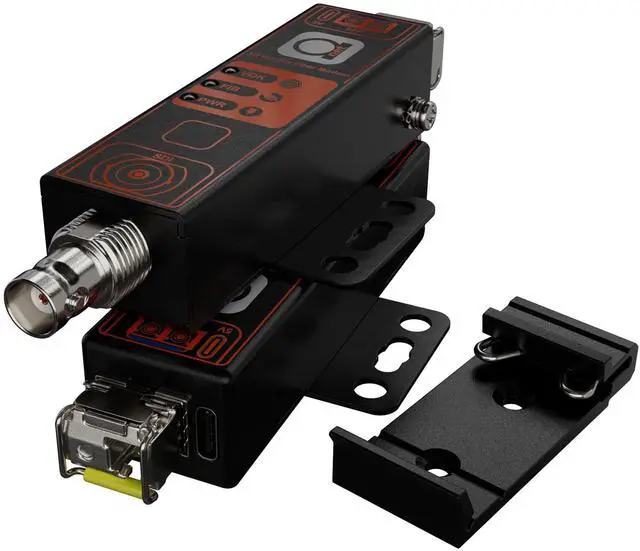

3G/HD-SDI Fiber Optic Converter and Extender Kit Compact SFP-Sized SDI to LC Transmitter & Receiver Over Single Mode & Multimode LC, USB-C Powered 20km (12.43mi) SM / 1km MM, DIN Rail & Wall Mount

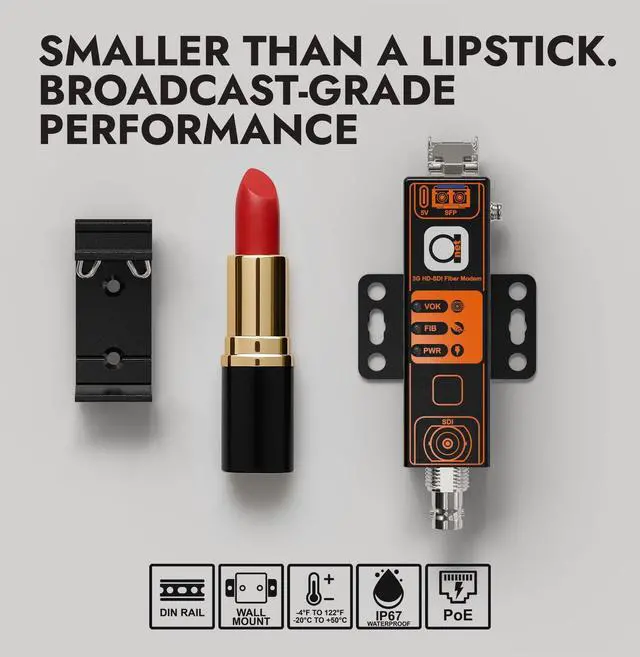

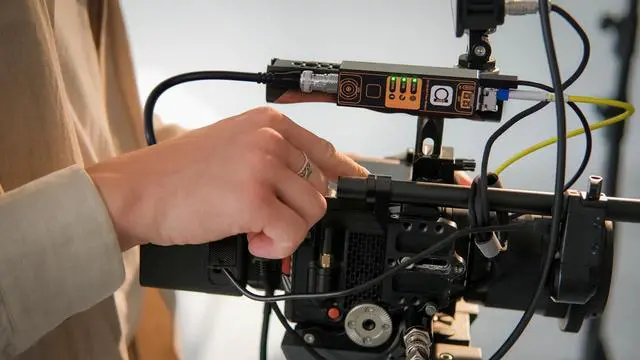

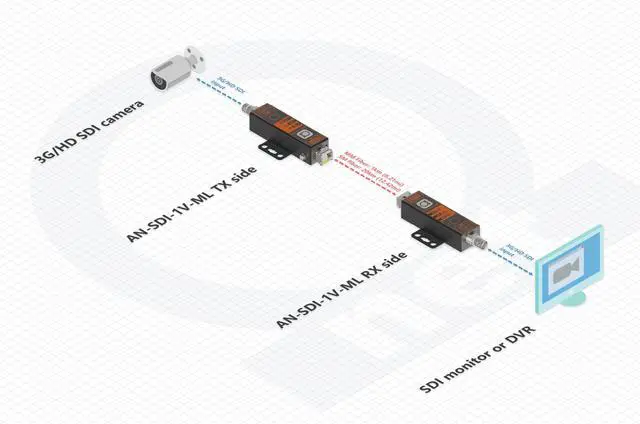

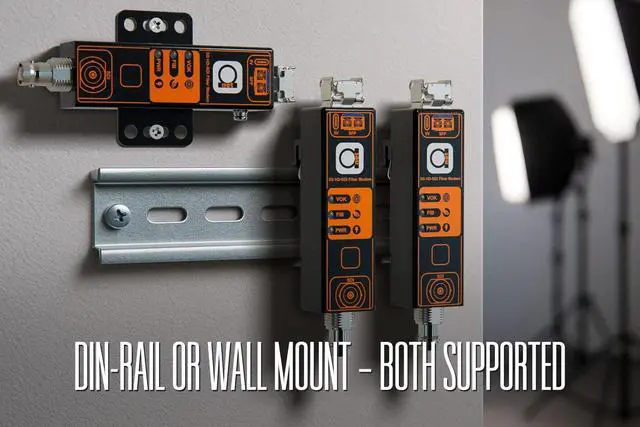

Complete Transmitter & Receiver Kit Includes both SDI-to-fiber and fiber-to-SDI units with pre-installed LC SFP modules. Ships ready for deploymentno optical module configuration required. ^^ Single LC Fiber, Long-Distance Operation Transmits uncompressed video over one LC duplex fiber strand. Reach up to 20km ( 12.4 mi) on single-mode and 1km ( 0.62 mi) on multimode using included modules. ^^ SFP-Sized, Ultra-Compact Design Smaller than typical converters. Ideal for camera rigs, studio racks, tight enclosures, or behind monitors. High portability for field use. ^^ Dual Mounting Options Ships with both DIN rail and wall mount brackets for flexible installation in studio, rack, or industrial environments.

^^ 5V USB-C Power Operates on 5V via USB-C. Power with included adapter, power bank, monitor USB port, or any 5V USB-C source. No large external 12V barrel jack needed. ^^ Status LED Indicators Power (PWR), Fiber Link (FIB), and Video OK (VOK) LEDs provide at-a-glance diagnostics for signal presence and link status. ^^ SD/HD/3G-SDI Compatible Supports SMPTE 424M, 292M, 344M, 259M, and DVB-ASI standards. Handles 270Mbps, 1.485G bps, and 2.97G bps signals, including 1080p60 Full HD.
