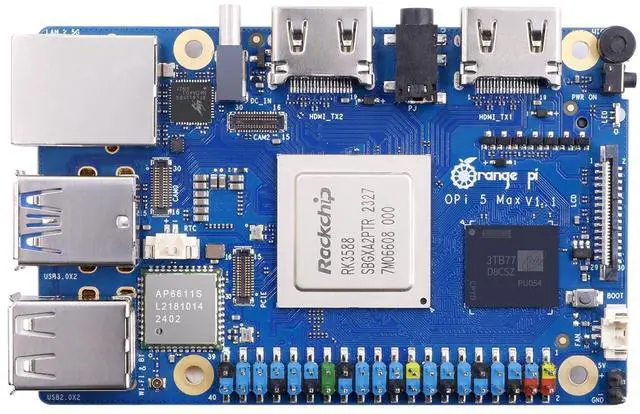

Orange Pi 5 Max 16GB RAM LPDDR5 8 Core 64 Bit Rockchip RK3588 Development Board, 8K Video Decoding 2.4GHz Frequency M.2 PCIE 2.5G LAN Single Board Computer
- High Performance RK3588 - Orange Pi 5 Max 16G uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2
- LPDDR5 8K Video Decoding - Orange pi 5 max 16gb has LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. supports eMMC socket and onboard eMMC (either one )
- 6TOPS High Computing Power - Orange Pi 5 Max 16GB embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications.
- Wi-Fi 6E+BT 5.3 with BLE S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

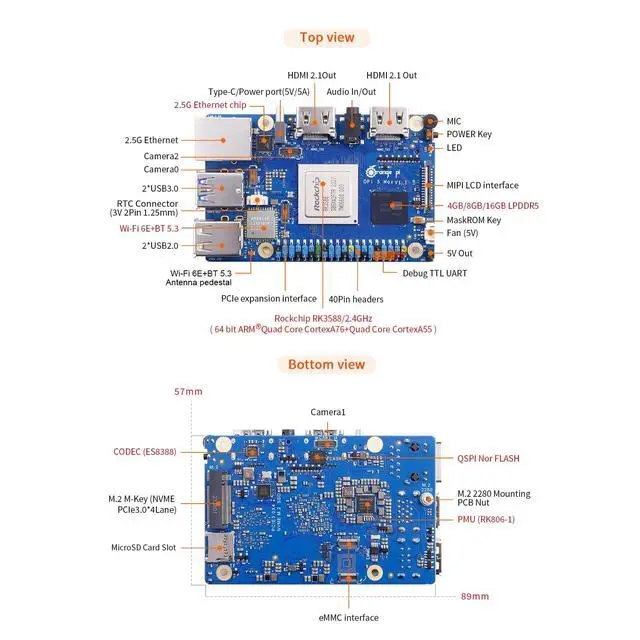

Hardware ParametersMaster Chip: Rockchip RK3588 (8nm LP process) CPU8-core 64-bit processor4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessorCortex-A76 at 2.4GH z, Cortex-A55 at 1.8GH zGPU
Integrated ARM Mali-G610Built-in 3D GPU
Fully compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU:
RK806-1RAM: LPDDR5 496PIN4GB8GB16GB optionalMemoryeMMC
Flash SocketsdefaultOnboard eMMCcustomizableNote: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optionalQSPI
Nor FLASH: 16MBMicroSD card slotM.

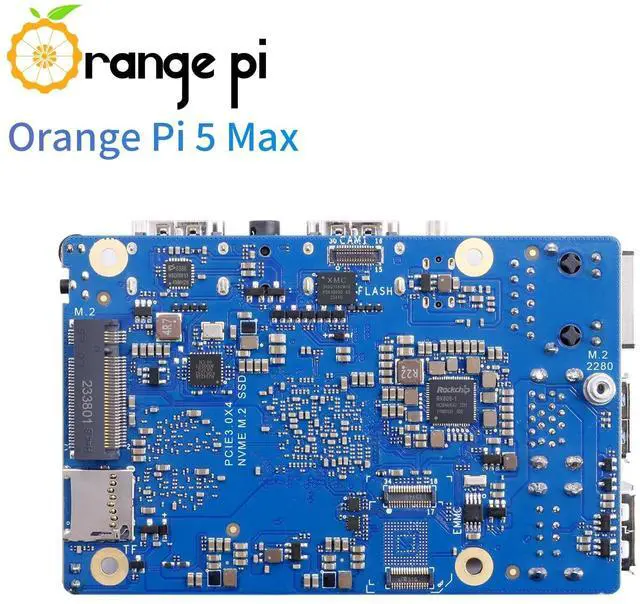

2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)USB: 2*USB 3.02 *USB 2.0V ideo2* HDMI 2.1, up to 8k@60FPS1* MIPI DSI TX 4 LaneCamera2* MIPI CSI 4 Lane1* MIPI D-PHY RX 4 LaneAudioCODECES83881* Audio 3.5 mm jack with mic1*MIC In1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG )Wi-Fi+BT ModuleOnboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611Wi-Fi
interface: SDIO
3.0BT interface: UART/PCM

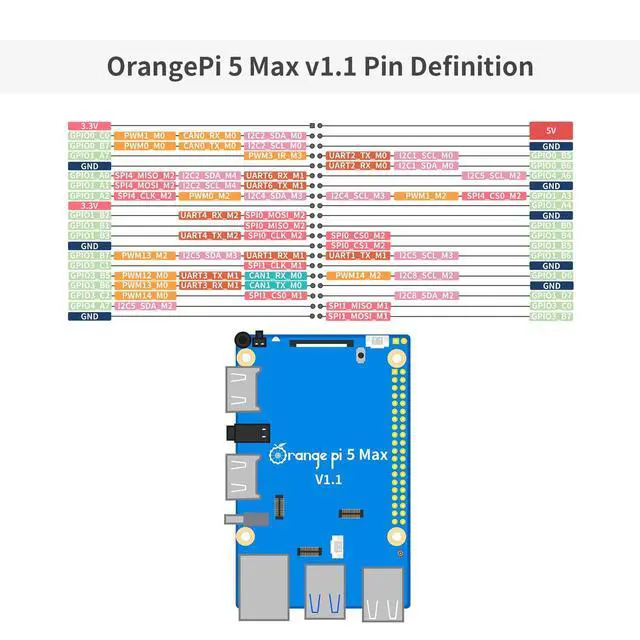

Expansion PortDual-row pin: 2.54 mm 40PinSupports DC 5V and 3.3V power outputConfigurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off keyPower
Source: Supports Type-C power supply, 5V
@ 5ALED: RGB
LED Side IlluminationFAN: 5V
2PIN 1.25 mm socketRTC: 3V
2PIN 1.25 mm socketDebugging: Debug serial UART included in 40PIN expansion portSupported
OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12Appearance Specification IntroductionPCB
Length: 89mm, Width: 57mm, Thickness: 1.6
mmWeight: 62g
Integrated ARM Mali-G610Built-in 3D GPU
Fully compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU:
RK806-1RAM: LPDDR5 496PIN4GB8GB16GB optionalMemoryeMMC
Flash SocketsdefaultOnboard eMMCcustomizableNote: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optionalQSPI
Nor FLASH: 16MBMicroSD card slotM.
2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)USB: 2*USB 3.02 *USB 2.0V ideo2* HDMI 2.1, up to 8k@60FPS1* MIPI DSI TX 4 LaneCamera2* MIPI CSI 4 Lane1* MIPI D-PHY RX 4 LaneAudioCODECES83881* Audio 3.5 mm jack with mic1*MIC In1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG )Wi-Fi+BT ModuleOnboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611Wi-Fi
interface: SDIO
3.0BT interface: UART/PCM
Expansion PortDual-row pin: 2.54 mm 40PinSupports DC 5V and 3.3V power outputConfigurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off keyPower
Source: Supports Type-C power supply, 5V
@ 5ALED: RGB
LED Side IlluminationFAN: 5V
2PIN 1.25 mm socketRTC: 3V
2PIN 1.25 mm socketDebugging: Debug serial UART included in 40PIN expansion portSupported
OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12Appearance Specification IntroductionPCB
Length: 89mm, Width: 57mm, Thickness: 1.6
mmWeight: 62g
