TPM 2.0 Module SPI 12Pin with SLB9670 Windows 11 Upgrade for Gigabyte Z790 Xtreme X,Z790 Elite AX-W,Z790 Elite DDR4,Z790 Elite AX DDR4,Z790 Master,Z790 Elite X,Z790 Elite X AX,Z790 PRO X,Z790 A

Compute Securely Bus Header KeyImportant Notes: 1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops. 2. The minimum hardware requirements for upgrading to Windows 11 via

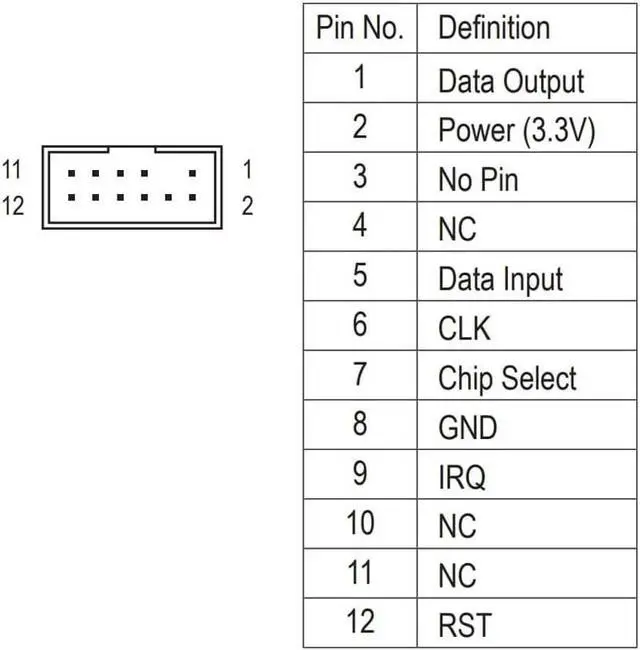

TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher. 3. This product has a 12-pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.
Compatible models: for Gigabyte MotherboardZ790 DZ790 D AXZ790 UD AXZ790 S DDR4Z790 EAGLEZ790M AORUS ELITE AX ICEZ790 AORUS ELITE AX ICEZ790 AORUS ELITE X WIFI7Z790 AORUS PRO X WIFI7Z790 AORUS PRO XZ790 AORUS MASTER XZ790 AORUS ELITE X AXZ790 AORUS XTREME XZ790M AORUS ELITEZ790M AORUS ELITE AXZ790 AORUS ELITE AX-WZ790 AORUS ELITE DDR4Z790 AORUS ELITE AX DDR4Z790 AORUS MASTERZ790 AERO GZ790 GAMING X AXZ790 EAGLE AXHow to select and install a security module: 1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled. 2.
Click Run,
enter: tpm. msc (Win+R keys), and check if the TPM version is ready. 3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS; consult the motherboard manufacturer's customer service. 4. Open the host and inspect the TPM pins on the motherboard. 5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction)

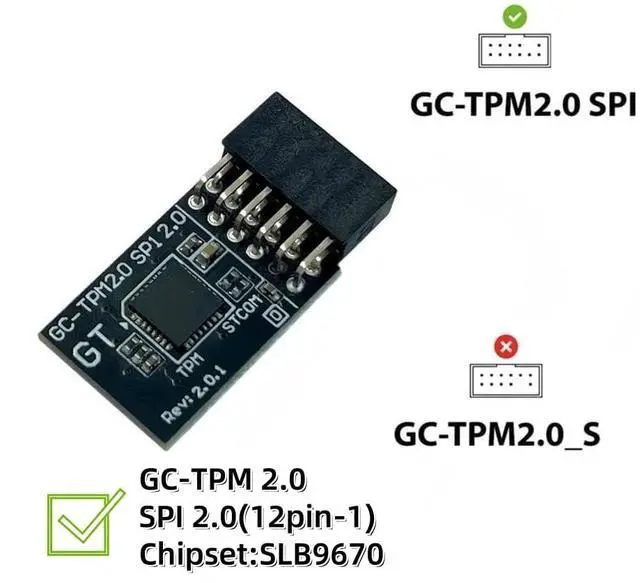

Product PerformanceCompatible with: GC-TPM 2.0
SPI 2.0C hipset:
SLB9670Interface: SPIPIN
DEFINE: 12-pinCore
Applications:
1: Seamless upgrade to
Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.
2: Enhanced
hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.
3: Hardware
encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).
