$355.99
Meet Your Seller
TCP/IP Single Door Security Access Control System with 600lbs Electric Magnetic Lock Exit Motion Sensor 110V-240V Power Supply Box FRID Keypad Reader
- Control 1 door, get in door by swiping card or PIN code, and get out door by exit motion sensor( when walk close to door ) .Can store/download/check entry records and generate report by professional management software.
- Control of memory up to 20,000 user / up to 100,000 logs. Auto open/close at any pre-set time during any day.
- Support "who" can enter which door at certain time, authorized access control. Also support swipe 4 times continuously to keep door open. Card Type: EM-ID card.Response less than 0.2 second.
- Have smart phone APP to open lock remotely.App operate system: iOS & Android.Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily, you can DIY.
- Network communication via TCP/IP network cable. Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
+
+
Overview
Specs
Reviews
We provide video guide+Detail wire diagram, so you can easily setup System, also provide live support.

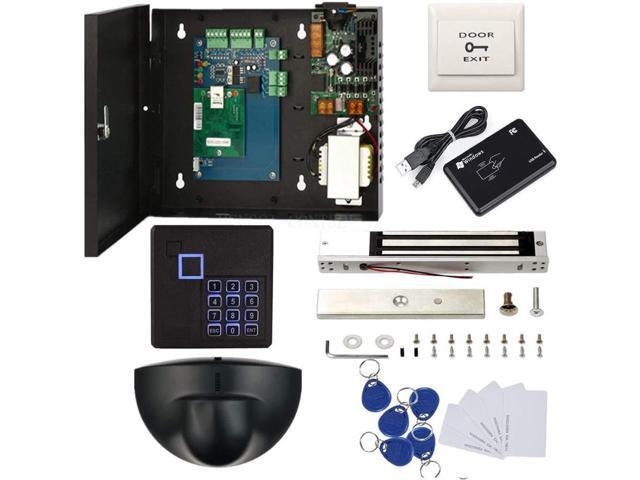

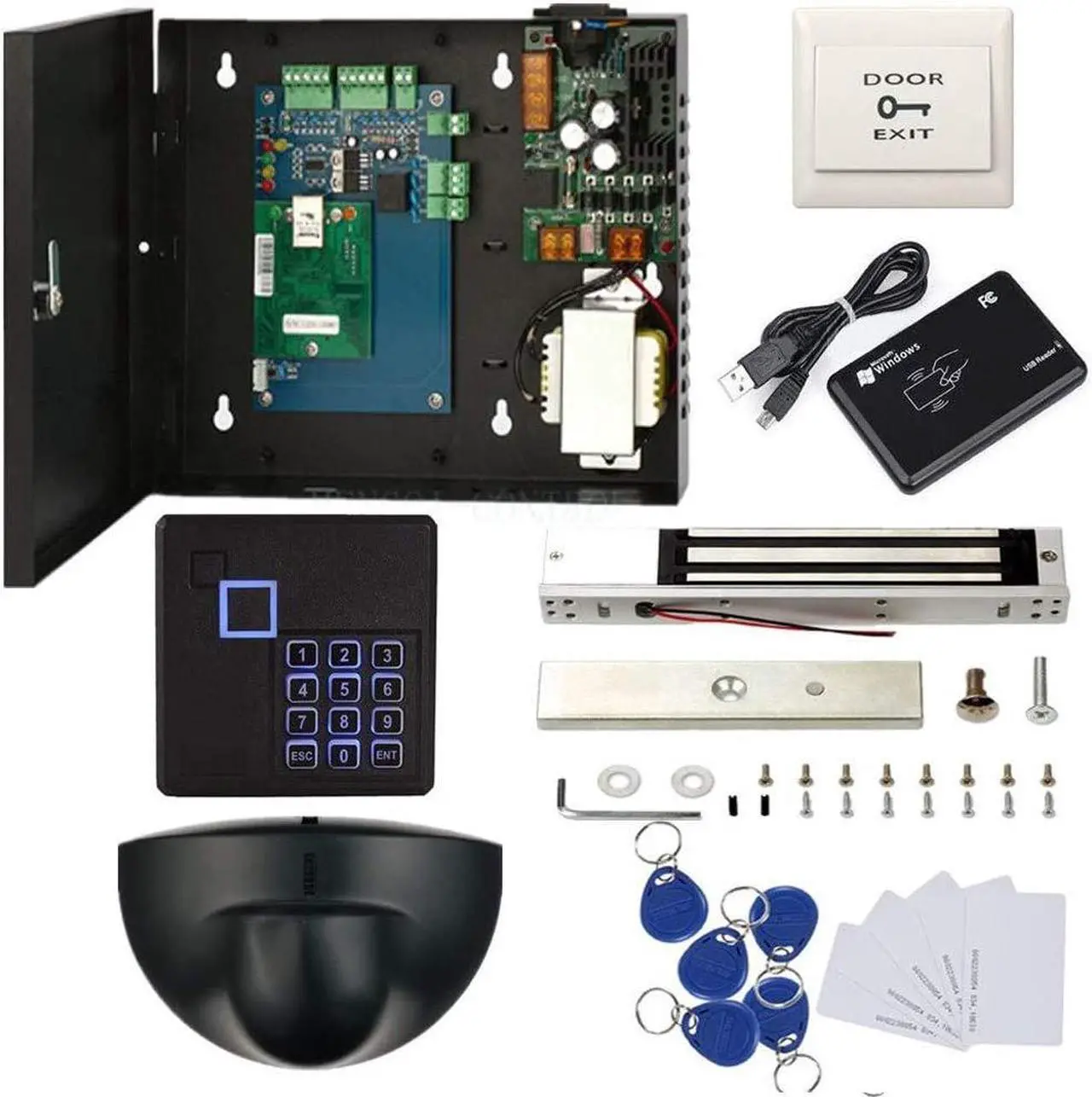

Package: 1 x 1 Door Wiegand Access control Panel1 x Power supply Box( 110-240V input, 5A output, to power the whole system, also as cabinet for above control board )1pc RFID Enroll USB Reader1 x RFID Keypad Reader 1 x Electric Magnetic Lock(600lbs /280kg holding force)1 x Exit Motion Sensor50 x RFID Keychains50 x RFID Cards1 x CD for Software/User manual/Wire diagram/Video GuideRFID Card
USB Reader Features: Desktop USB reader, read card number into software so that easy programming/register userSupport: EM4100/EM4001/TK4100
ID cardDimension: 105x70x12mm
Size: 125K EM4100Power

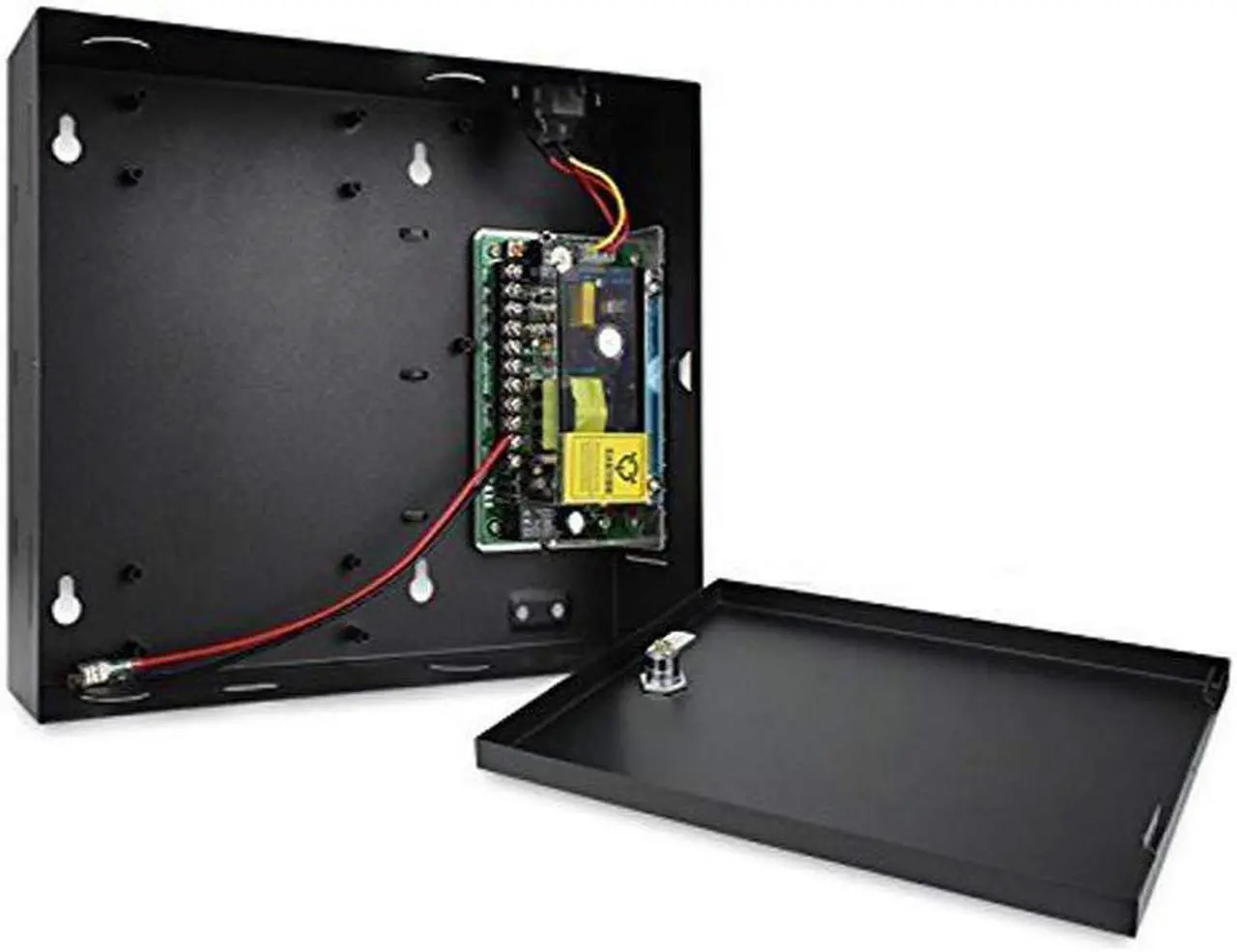

Supply Box:
Power: 60W,
Rated Current: 5AInput
Voltage: 110V-240V,
Output Voltage: 12VDC
Color of the box: blackSize
of the box: 279mm * 234mm * 67mm 1

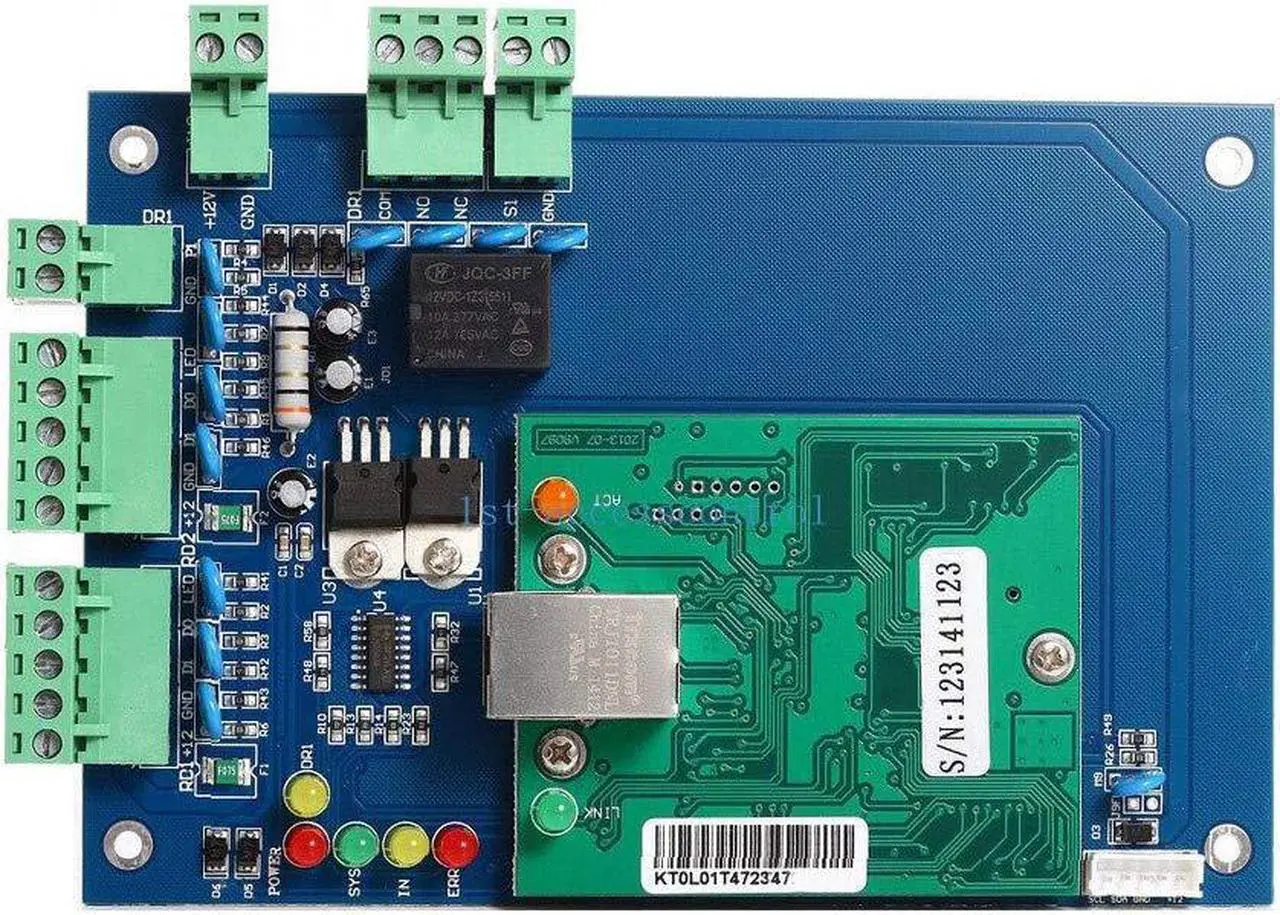

Door Access-Control-Panel Feature: Control 1 door, get in by swiping card and get out door by buttonDoor controlled: 1Support 2 readersControl of memory up to 20, 000 user / up to 100, 000 event buffersNetwork communication via

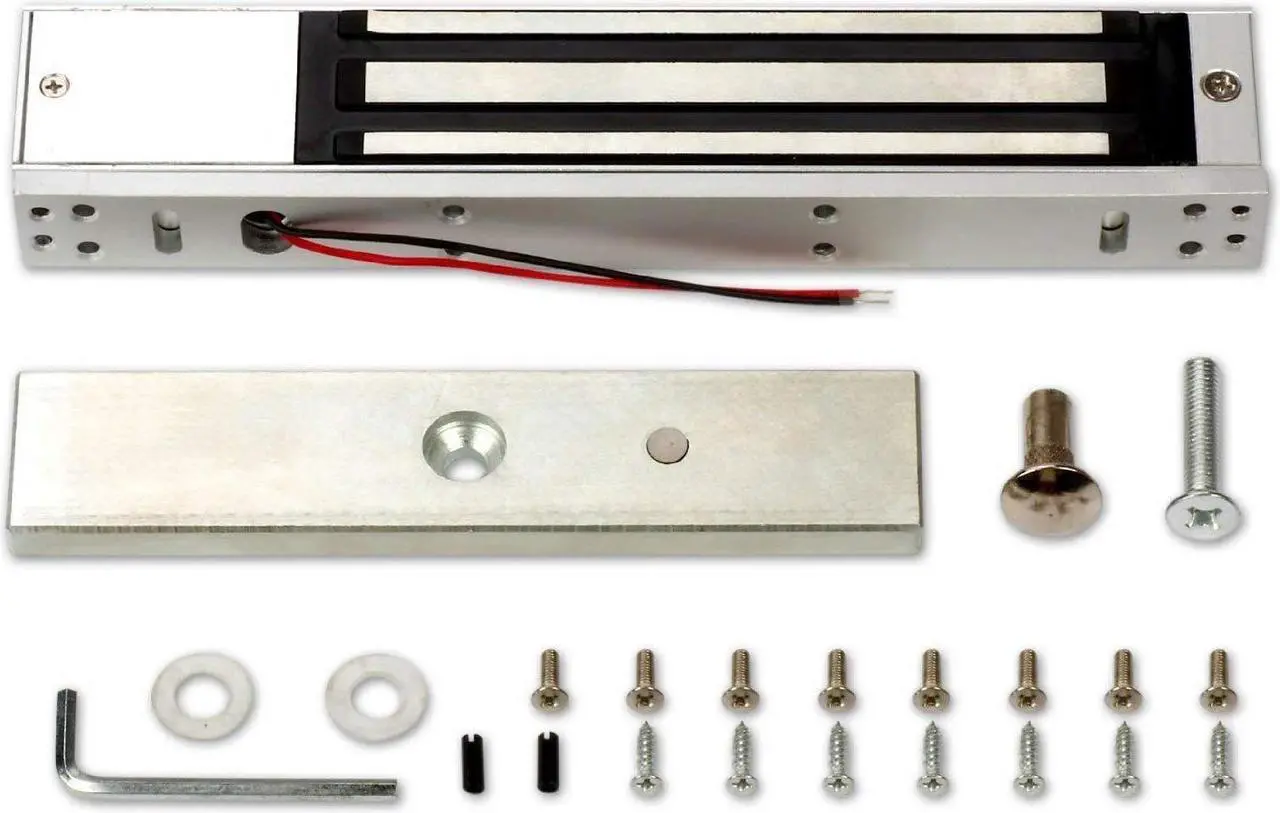

TCP/IPMagnetic Lock: Collinear Load Test 280kg, 600 LBS The Standard Voltage is 12VDC when Finished MOV Provides Reverse Current Protection Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door Anti-Residual Magnetism Designed High Strength Material, Anodized Aluminum Housing Design without Mechanical Failure Increase the holding Force, Dual Insulated HousingRFID

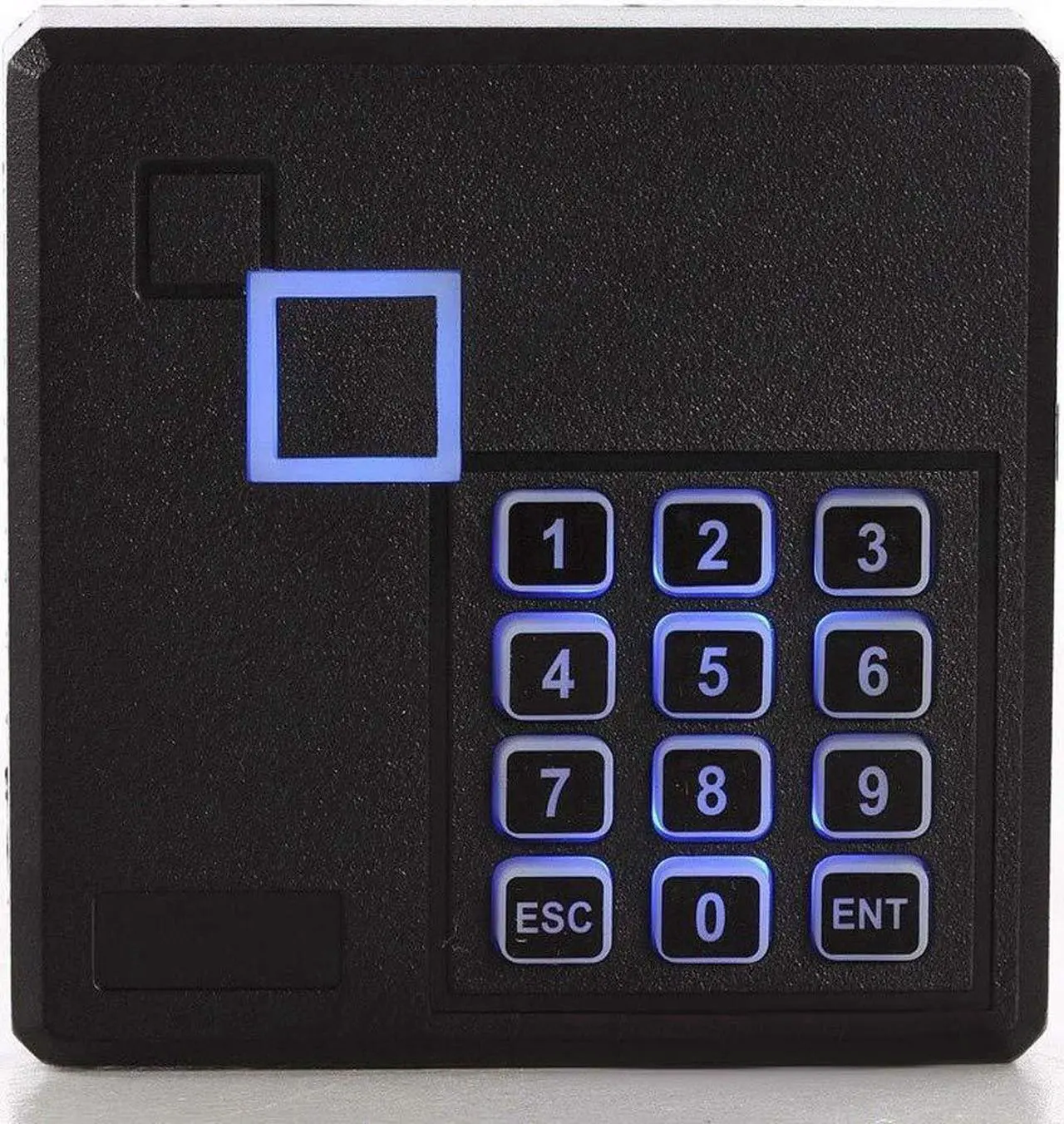

Keypad Reader Features:
Frequency: 125Khz
Card Type: EM-ID
Card Response Speed: Less than 0.2 second
Proximity Time Distance: Less than 0.5 seconds
Reading range: 3-15cm
Communication distance: Less than 100m
Package: 1 x 1 Door Wiegand Access control Panel1 x Power supply Box( 110-240V input, 5A output, to power the whole system, also as cabinet for above control board )1pc RFID Enroll USB Reader1 x RFID Keypad Reader 1 x Electric Magnetic Lock(600lbs /280kg holding force)1 x Exit Motion Sensor50 x RFID Keychains50 x RFID Cards1 x CD for Software/User manual/Wire diagram/Video GuideRFID Card
USB Reader Features: Desktop USB reader, read card number into software so that easy programming/register userSupport: EM4100/EM4001/TK4100
ID cardDimension: 105x70x12mm
Size: 125K EM4100Power
Supply Box:
Power: 60W,
Rated Current: 5AInput
Voltage: 110V-240V,
Output Voltage: 12VDC
Color of the box: blackSize
of the box: 279mm * 234mm * 67mm 1
Door Access-Control-Panel Feature: Control 1 door, get in by swiping card and get out door by buttonDoor controlled: 1Support 2 readersControl of memory up to 20, 000 user / up to 100, 000 event buffersNetwork communication via
TCP/IPMagnetic Lock: Collinear Load Test 280kg, 600 LBS The Standard Voltage is 12VDC when Finished MOV Provides Reverse Current Protection Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door Anti-Residual Magnetism Designed High Strength Material, Anodized Aluminum Housing Design without Mechanical Failure Increase the holding Force, Dual Insulated HousingRFID
Keypad Reader Features:
Frequency: 125Khz
Card Type: EM-ID
Card Response Speed: Less than 0.2 second
Proximity Time Distance: Less than 0.5 seconds
Reading range: 3-15cm
Communication distance: Less than 100m
