DIY Electronic Enclosure Box Case 4U 175 x 178 x 305 mm. Full Aluminum Blue

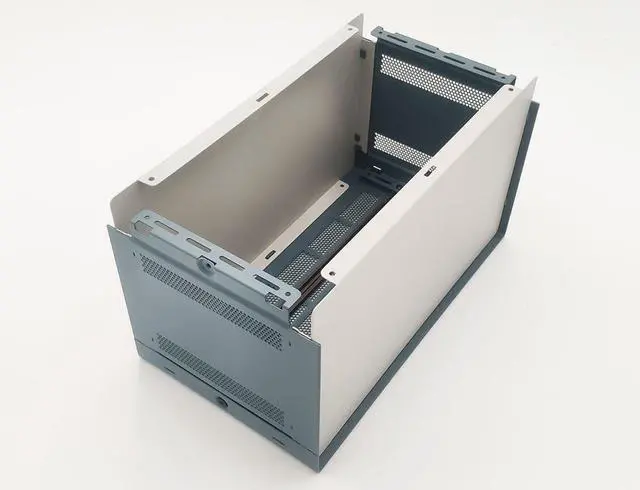

The high grade aluminum body provides a strong and light weight structure and our open frame design, allows easy access to the components being assembled inside. The Aluminum front and rear panels are ideal for end user customization. The SA Series enclosures come flat packed and its unique snap together design requires only 4 screws to complete the assembly. FeaturesLight weight and strongVery durable all aluminum (AL 5052) constructionEasy to assemble, only 4 screws neededExtensive top/bottom and side/side ventilationOpen Frame design maximizes user convenience for component assemblyTwo pieces of extruded aluminum general purpose bars for components fixing are included in the basic kit.

Additional bars may be ordered as needed. Optional mounting plates for PCB and heavy components such as transformersOptional carrying straps can be installed by user for convenient handling. Standards and MaterialsConform to IEC-60 297-1. Premium grade (AL 5052) aluminum. Designed and manufactured under ISO 9001:2015 and ISO 14001:2015 All materials RoHS compliant.
Dimension:
External: (4U) or Height 175 x Deep 178 x Width 305 mm.
Internal: Height 171 x Deep 158 x Width 285 mm.
Internal component mount bar install: Height -10 mm (1 cm. ) If install top and bottom together: Height - 20 mm (2 cm. )(Need another size, please contact.
)Parts List: Front Rear Panel x 2Side Frame x 2Component Mount bar x 2Umbrella Phillips screw M3-6 x 4Top / Bottom Cover x 2Umbrella Philips dog point Screw M4-8 x 4Rubber feet x 4
