1080p 1x8 HDMI Extender Splitter Over IP Kit 395ft/120m, Direct Connection (TX to RXs) Over CAT5e/CAT6, Over 1G Gigabit Ethernet Switch, Network LAN, VLAN, Scalable, IR Extension (HDbitT8Pv2) By DT

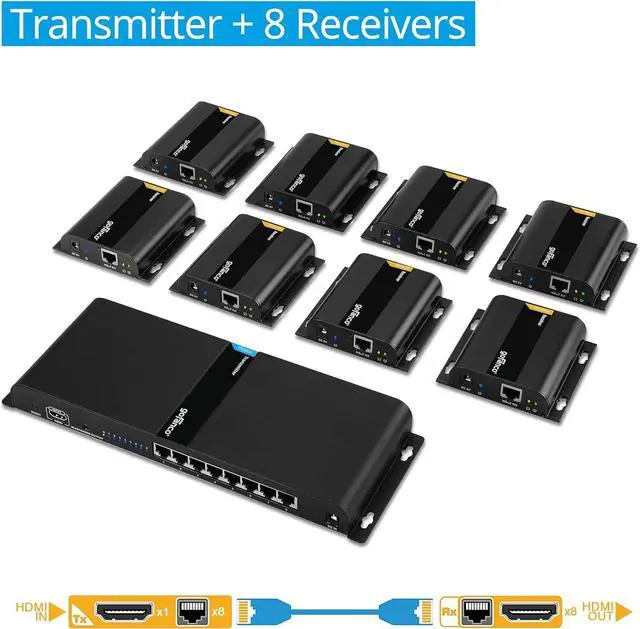

- HDMI EXTENDER SPLITTER KIT Includes 1 Transmitter and 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 up to 394ft simultaneously. *Important*: HDbitT8Pv2 (this kit, version 2.0) is not backward compatible with the previous version and its receivers (RX). If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes
- NETWORK DISTRIBUTION Direct connection from Transmitter to Receivers or through IP network via 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately. Note that each VLAN can only accommodate 1 transmitter (TX). *Note: Don't use with home routers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
VIDEO RESOLUTIONS & AUDIO Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video and audio experience; Supports 2-channel Stereo Audio; *
Note: Theres a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION You can control the HDMI source device at a remote location with the included IR cables that forward commands over a
CAT cable. *Note: One directional IR control from RX side to TX
SIMPLE INSTALLATION No driver required; Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select Ask a Question if you have any questions or concerns
Product Description

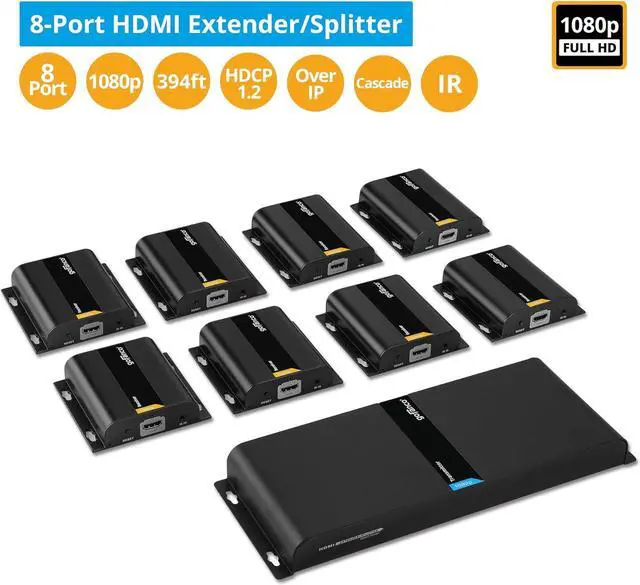

gofanco 1080p 1x8 8-Port HDbitT HDMI Extender/Splitter Kit over CAT6 Up to 394ft (120m)
with IR Control, Direct TX-RX Connection or Over IP with Gigabit Network Switches. Long distance HDMI transmission using HDbitT compression technology.
Want a 1x4 kit with all the same specs?
Search HDbitT4Pv2 / ASIN B08VRJBQJ9
OR click the link below in the comparison table!

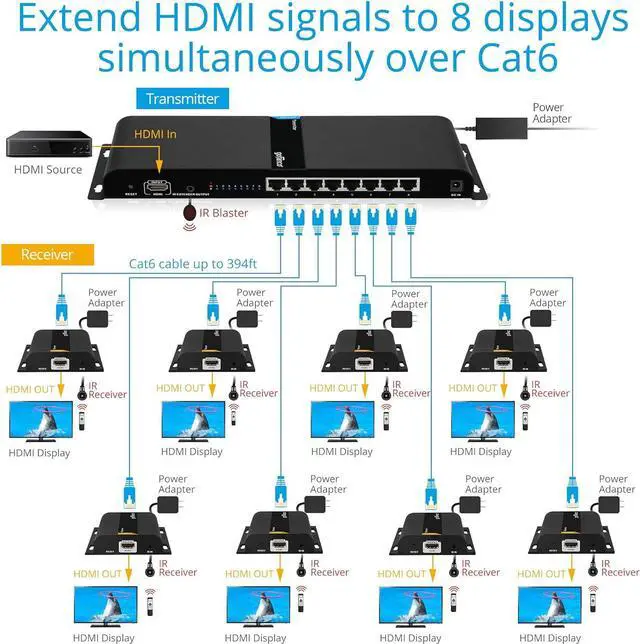

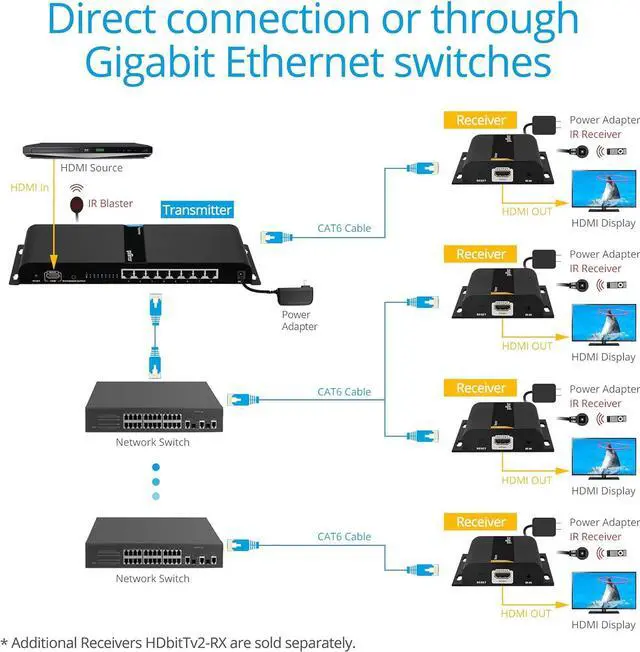

Direct or Network Distribution
Direct connection from transmitter to 8 receivers or through unmanaged gigabit network switch, providing more flexibility
You can connect up to 30 receivers per transmitter, providing a scalable extender splitter.
Additional Receivers sold separately (HDbitTRX - ASIN: B01HHI0RX2)
Spread content all over the building
Long Range: 395 feet!
IR Remote Control
Control source from receiver/display side in a distant location for convenience.
Important Notes
A good quality CAT5e/6/7 cable is essential in delivering quality content. CAT6/6a/7 is recommended over CAT5e
We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search
CAT6UTP-100 (B07PB3R8BK) /CAT6UTP-150 (B07P6TDMLH)
Note: Theres a 250ms or less delay/latency due to data compression; Not recommended for real-time applications, such as PC gaming
IR EXTENSION You can control the HDMI source device at a remote location with the included IR cables that forward commands over a
CAT cable. *Note: One directional IR control from RX side to TX
SIMPLE INSTALLATION No driver required; Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select Ask a Question if you have any questions or concerns
Product Description
gofanco 1080p 1x8 8-Port HDbitT HDMI Extender/Splitter Kit over CAT6 Up to 394ft (120m)
with IR Control, Direct TX-RX Connection or Over IP with Gigabit Network Switches. Long distance HDMI transmission using HDbitT compression technology.
Want a 1x4 kit with all the same specs?
Search HDbitT4Pv2 / ASIN B08VRJBQJ9
OR click the link below in the comparison table!
Direct or Network Distribution
Direct connection from transmitter to 8 receivers or through unmanaged gigabit network switch, providing more flexibility
You can connect up to 30 receivers per transmitter, providing a scalable extender splitter.
Additional Receivers sold separately (HDbitTRX - ASIN: B01HHI0RX2)
Spread content all over the building
Long Range: 395 feet!
IR Remote Control
Control source from receiver/display side in a distant location for convenience.
Important Notes
A good quality CAT5e/6/7 cable is essential in delivering quality content. CAT6/6a/7 is recommended over CAT5e
We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search
CAT6UTP-100 (B07PB3R8BK) /CAT6UTP-150 (B07P6TDMLH)
