600A High Current Busbar 12-48V DC Heavy-Duty Nickel-Plated Copper Power Distribution Block 8xM10 (3/8") Terminal Studs with Cover Battery Bus Bar for Automobiles Boat RV Truck (Black&Red)
- Busbar: The 12V busbar features a high-power modular connection structure, which strengthens the electrical connections and facilitates assembly, providing a convenient solution for organizing and distributing power
- Highly Conductive: The 19 mm/0.748 inch thick tinned copper distribution block is highly conductive, supporting up to 600 amps of continuous current and withstanding up to 300 volts AC or 48 volts DC
- Features: The base and cover are made of flame-retardant nylon fiberglass reinforced material to ensure mechanical strength and durability, avoiding any external contact at the connections and preventing short circuits or damage
+
+
Overview
Specs
Reviews
Terminals: 600A bus bar distribution block with 4 x M10 (3/8 inch) terminal studs (also suitable for M8) is ideal for multi-cell wiring configurations and the stainless steel material improves its corrosion and rust resistance
Wide Application: Our bus bar terminal block is equipped with 5mm mounting holes for mounting on a wide range of vehicles for cars, camping trailers, RVs, trucks, boats, yachts and other 12-48V applications
Product Description

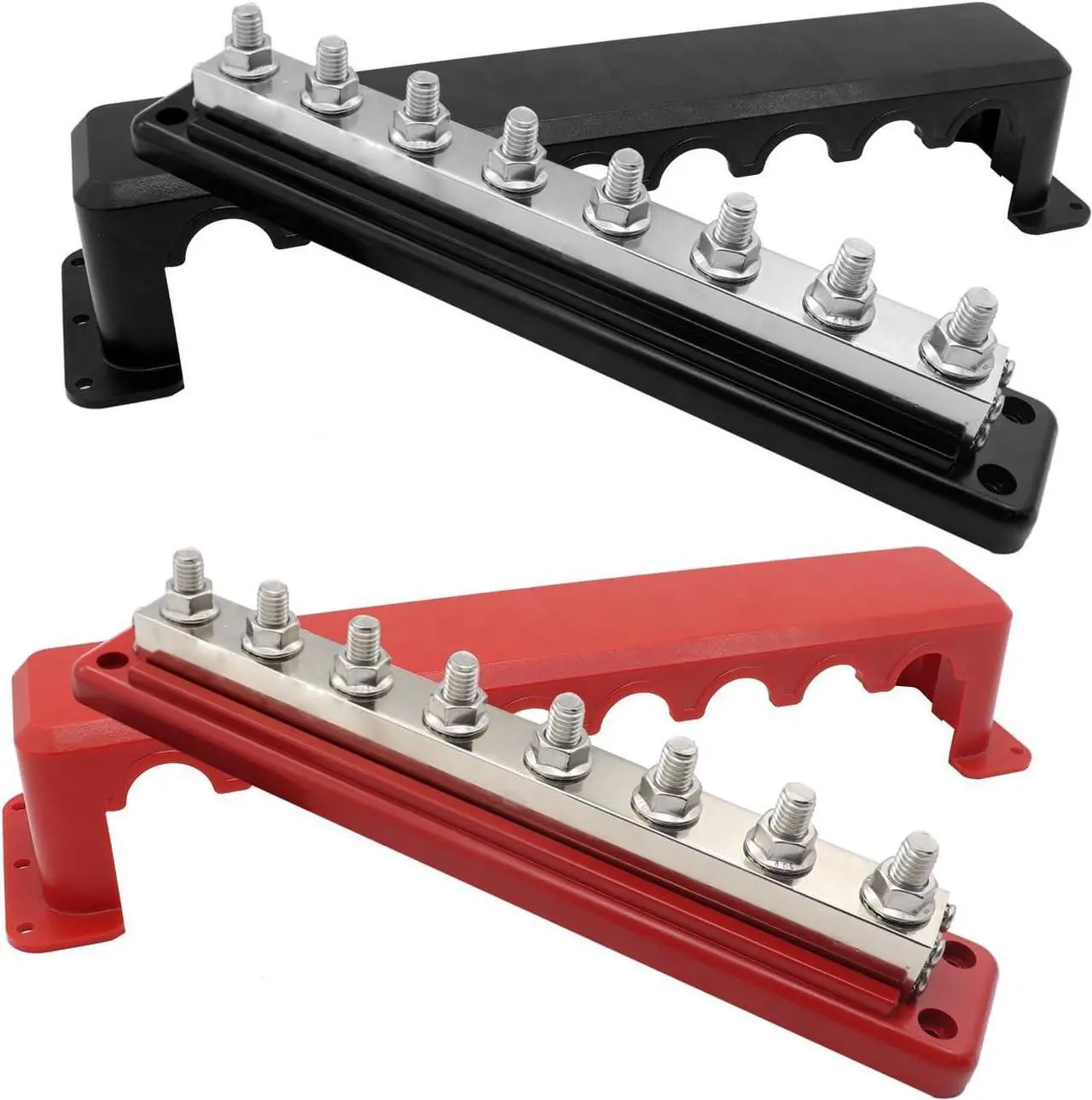

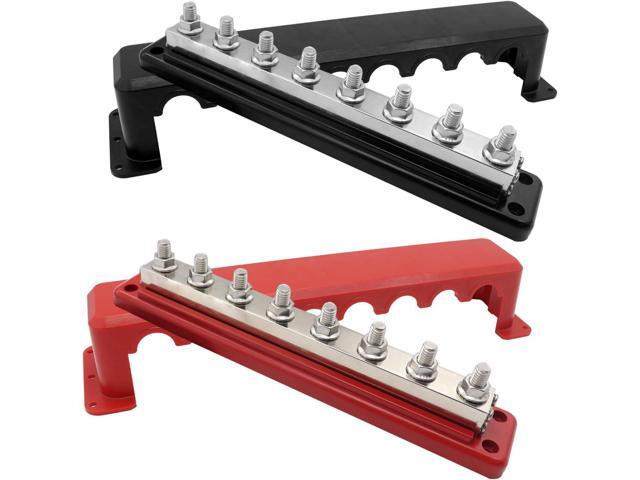

600A Heavy-Duty Busbar
This product is a very practical 8-way busbar with high voltage, high current, wide range of use, and high safety factor. The high-quality shell and base ensure excellent mechanical strength and durability.
Busbar can be installed in any position. Suitable for cars, ships, RVs, jeeps, and many other applications ranging from 12 to 48 volts.
Product details

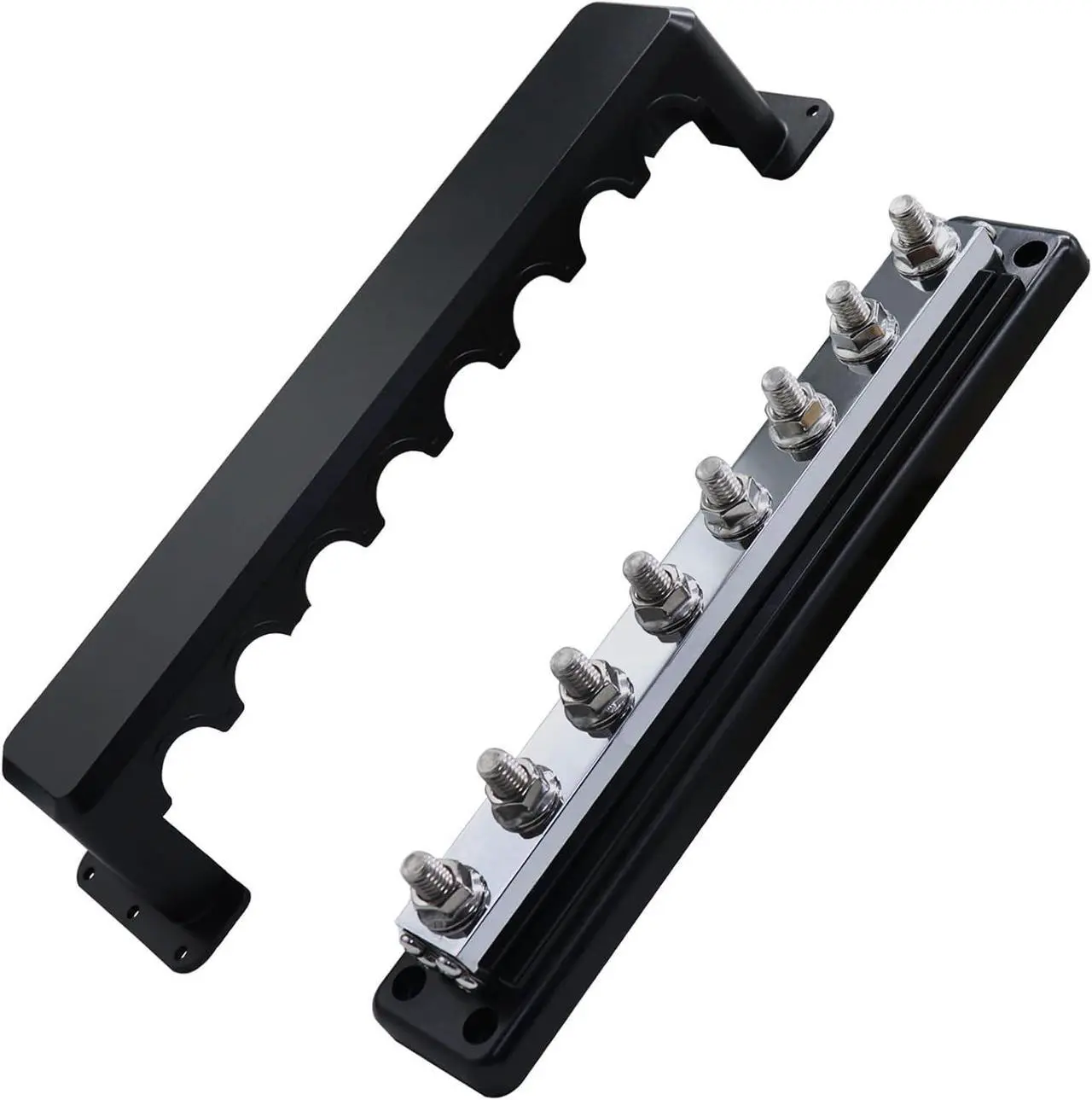

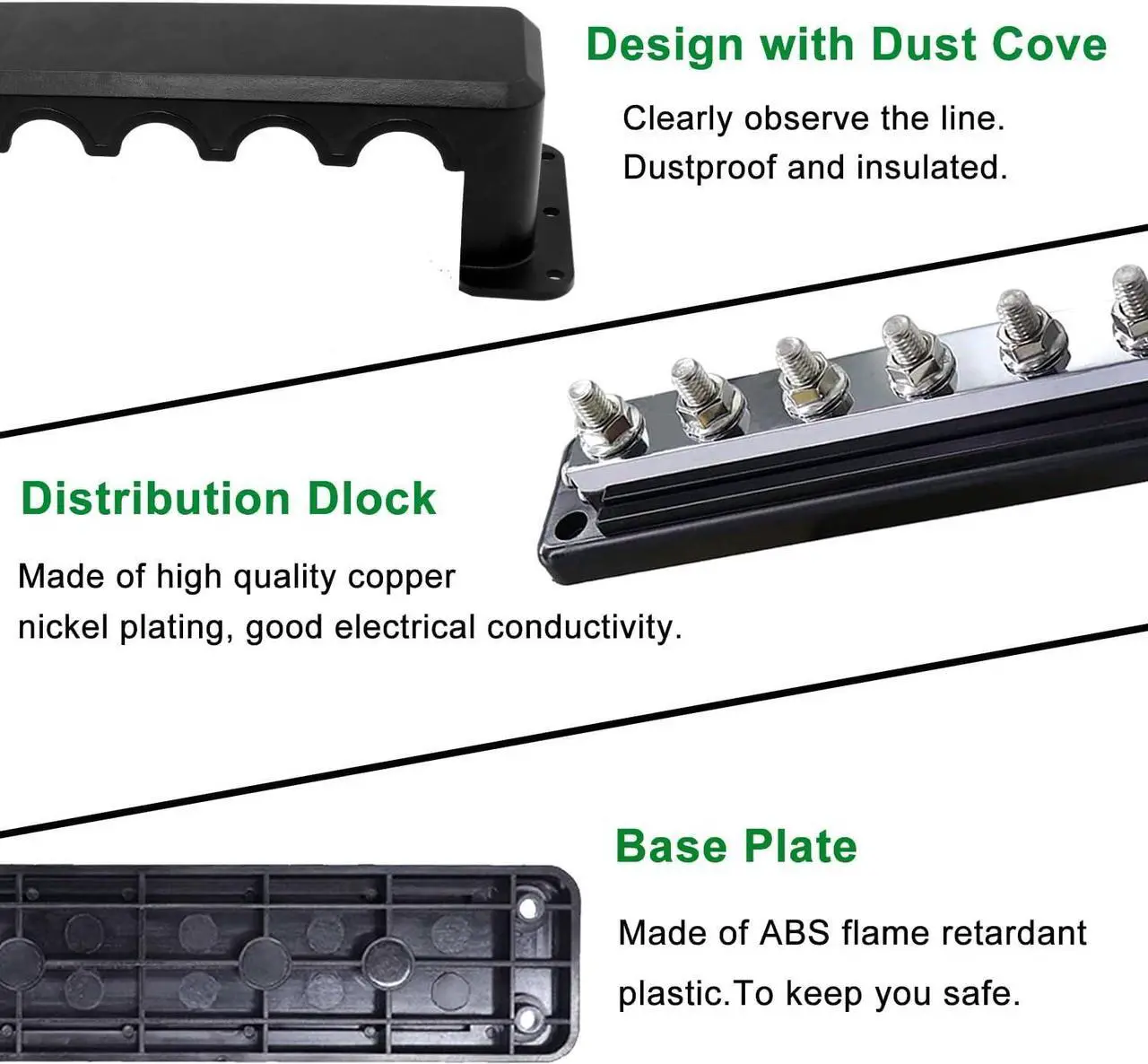

Design with Dust Cove
Unique design, good protection, avoiding dust and static electricity.
M10 terminal block
8x3/8 "stainless steel double head bolt terminals are rust proof and corrosion-resistant, and large-sized terminals can accommodate larger wires.
High quality base
The base is made of flame retardant ABS material for safety and reliability.
Busbar
Using electroplated red copper for better conductivity.

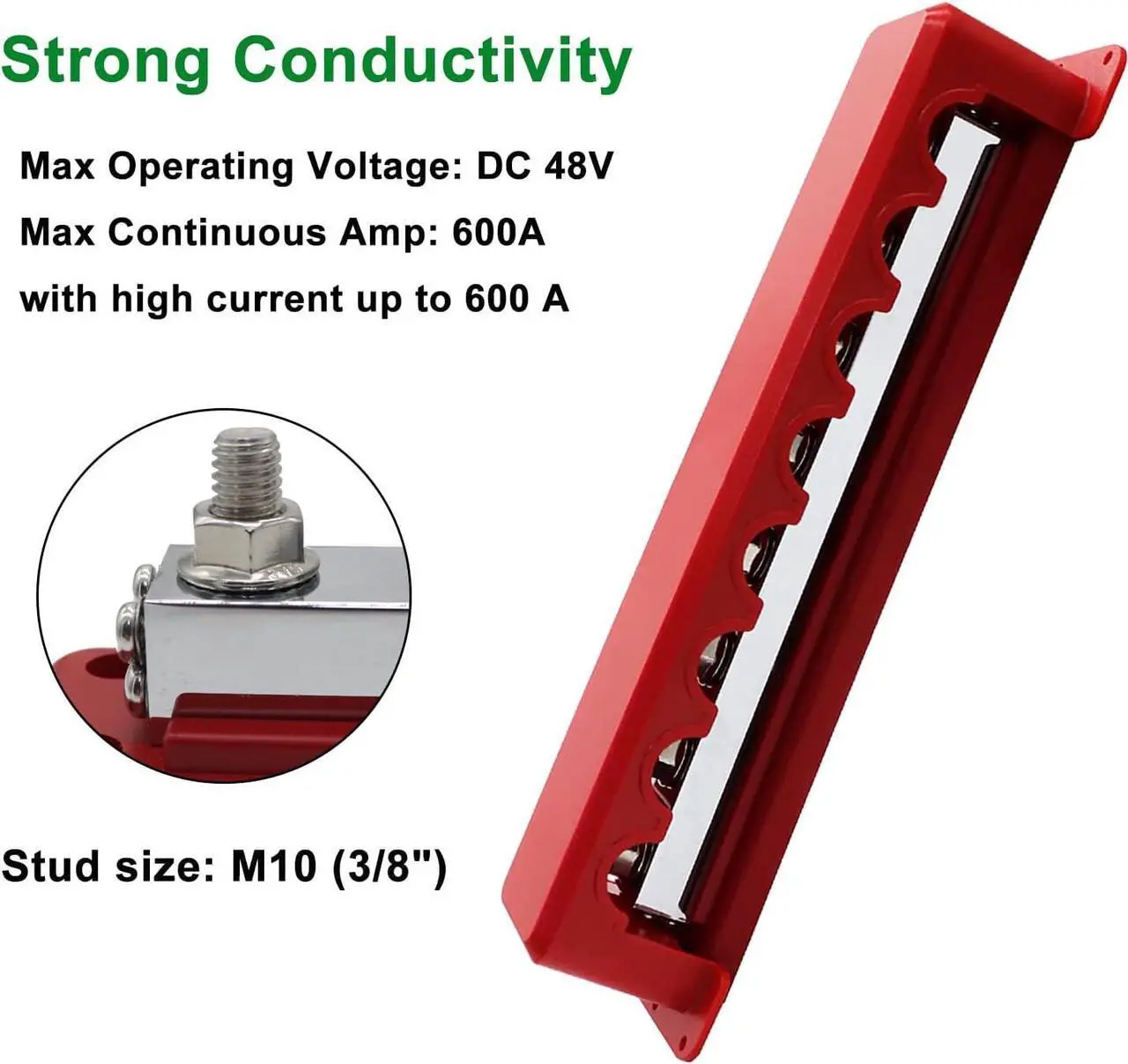

Continuous rated value: 600A 48V DC/300V AC.

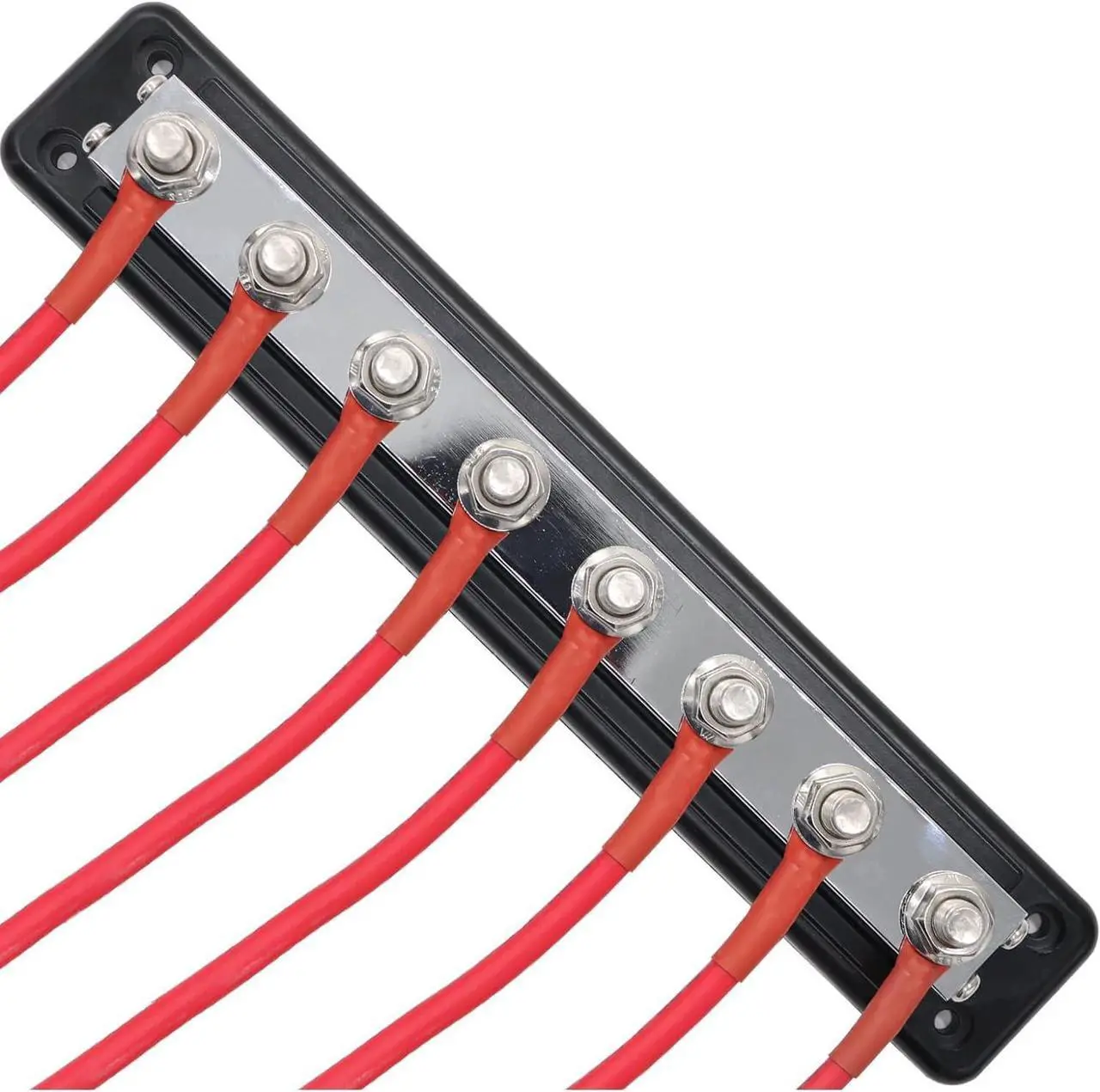

Easy installation
Makes your wiring neat and tidy. The installation hole diameter is 5mm and can be installed in any position
Wide Application: Our bus bar terminal block is equipped with 5mm mounting holes for mounting on a wide range of vehicles for cars, camping trailers, RVs, trucks, boats, yachts and other 12-48V applications
Product Description
600A Heavy-Duty Busbar
This product is a very practical 8-way busbar with high voltage, high current, wide range of use, and high safety factor. The high-quality shell and base ensure excellent mechanical strength and durability.
Busbar can be installed in any position. Suitable for cars, ships, RVs, jeeps, and many other applications ranging from 12 to 48 volts.
Product details
Design with Dust Cove
Unique design, good protection, avoiding dust and static electricity.
M10 terminal block
8x3/8 "stainless steel double head bolt terminals are rust proof and corrosion-resistant, and large-sized terminals can accommodate larger wires.
High quality base
The base is made of flame retardant ABS material for safety and reliability.
Busbar
Using electroplated red copper for better conductivity.
Continuous rated value: 600A 48V DC/300V AC.
Easy installation
Makes your wiring neat and tidy. The installation hole diameter is 5mm and can be installed in any position
