8-Ports PCIE Superspeed 5Gbps USB 3.0 Card for Windows and Linux Desktop PCs, 4X Dedicated 5Gbps USB 3.0 Channel 20Gbps Bandwidth, Built in FebSmart Self-Powered Technology (FS-4C-U8S-Pro)

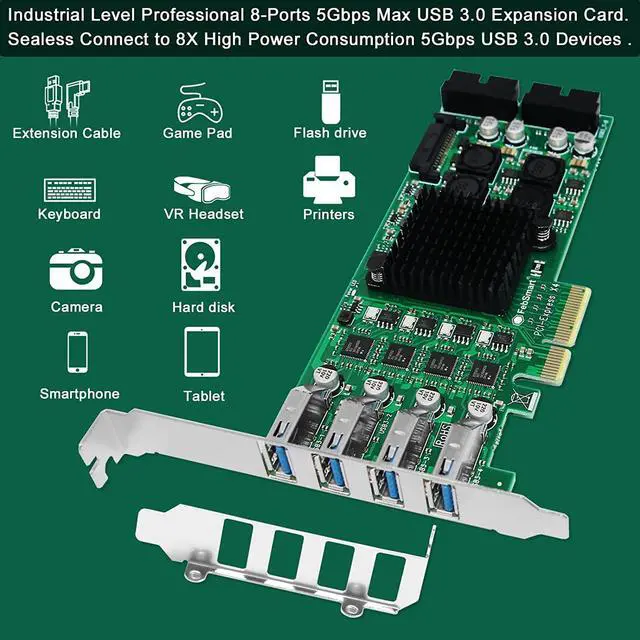

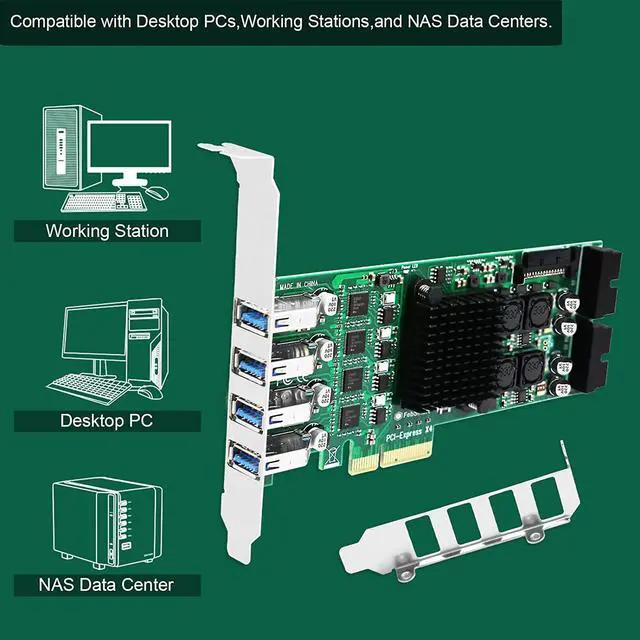

- 1. FS-4C-U8S-Pro is a PCIE X4 interface to 4 channel 8-Ports USB 3.0 expansion card. Allow users add 4X dedicated USB 3.0 5Gbps channels, 20Gbps total bandwidth on 8X superspeed 5Gbps max USB 3.0 ports. It is mainly used on Desktop PCs, Working Stations, and NAS for high-bandwidth USB 3.0 devices which including USB industrial cameras, USB VR-Systems, USB 3.0 NVME enclosures, USB live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations.

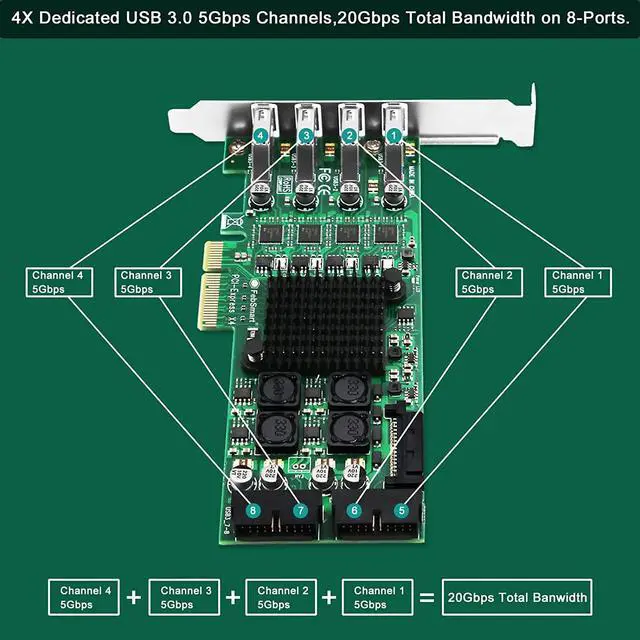

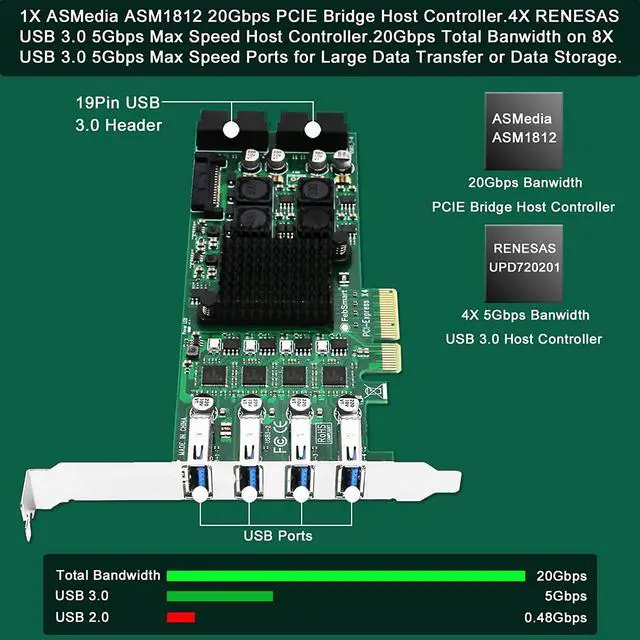

- 2. Based on 1X ASMedia ASM1812 20Gbps PCIE bridge controller and 4X RENESAS UPD720201 USB 3.0 host controller. Provide 4X independent USB 3.0 5Gbps channels, 20Gbps total bandwidth. 4X external USB-A and 2X internal 19Pin USB 3.0 header (2X 19Pin USB 3.0 header will extend to 4X USB-A ports on Desktop PCs front panel), 8X USB 3.0 5Gbps max ports in total. 1X external USB 3.0 port and 1X internal USB 3.0 port will share 1X USB 3.0 5Gbps bandwidth. 8X USB 3.0 Ports will share 20Gbps bandwidth.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

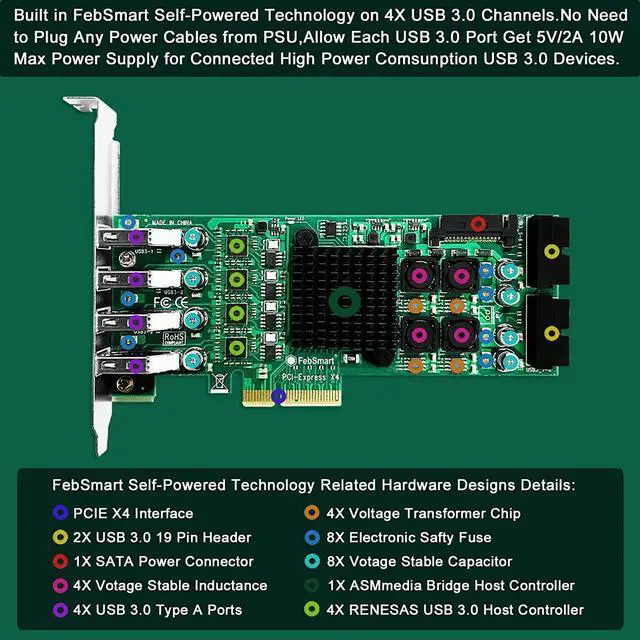

3. Built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs Power Supply Unit. Allow each USB 3.0 channel two USB 3.0 ports get 5V/3A 15W (5V/12A 60W in total) max power supply from motherboard for connected high power consumption USB 3.0 devices. FebSmart add 8X electronic safety fuse and 8X voltage stable capacitor and 4X voltage stable inductance on the USB expansion card, will protect users data and USB 3.0 devices, make sure safe connection.
4.

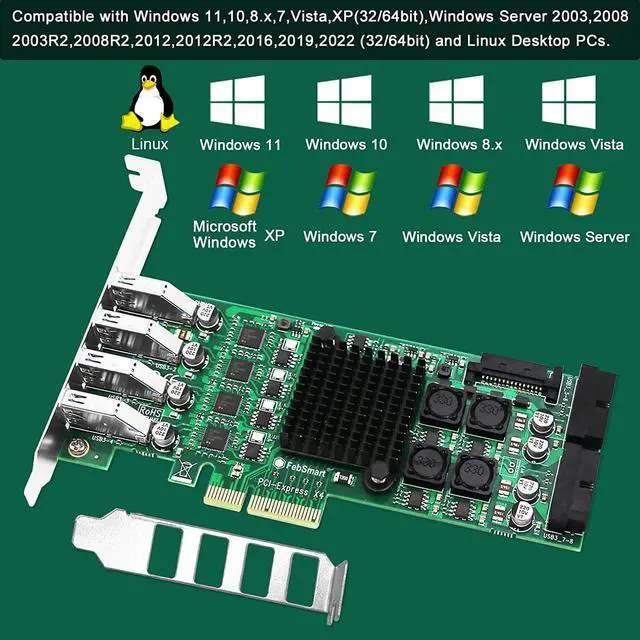

Compatible System: 1. Plug and Play on Windows 11, 10, 8. x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
5. PCIE X4 interface design, will works on PCIE X4, X8, X16 slot. Do not work on PCIE X1, X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1. x, 2. x, 3. x, 4. x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. The low-profile bracket in the package, will supports Slim PCs.
4.
Compatible System: 1. Plug and Play on Windows 11, 10, 8. x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
5. PCIE X4 interface design, will works on PCIE X4, X8, X16 slot. Do not work on PCIE X1, X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1. x, 2. x, 3. x, 4. x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. The low-profile bracket in the package, will supports Slim PCs.
